Marvelous Designer and Vellum Cloth

Table Of Content

Overview

目的

MD/CLO3Dのプリセット生地に近い挙動を示すVellum Constraintsのパラメータをだいたい把握する。

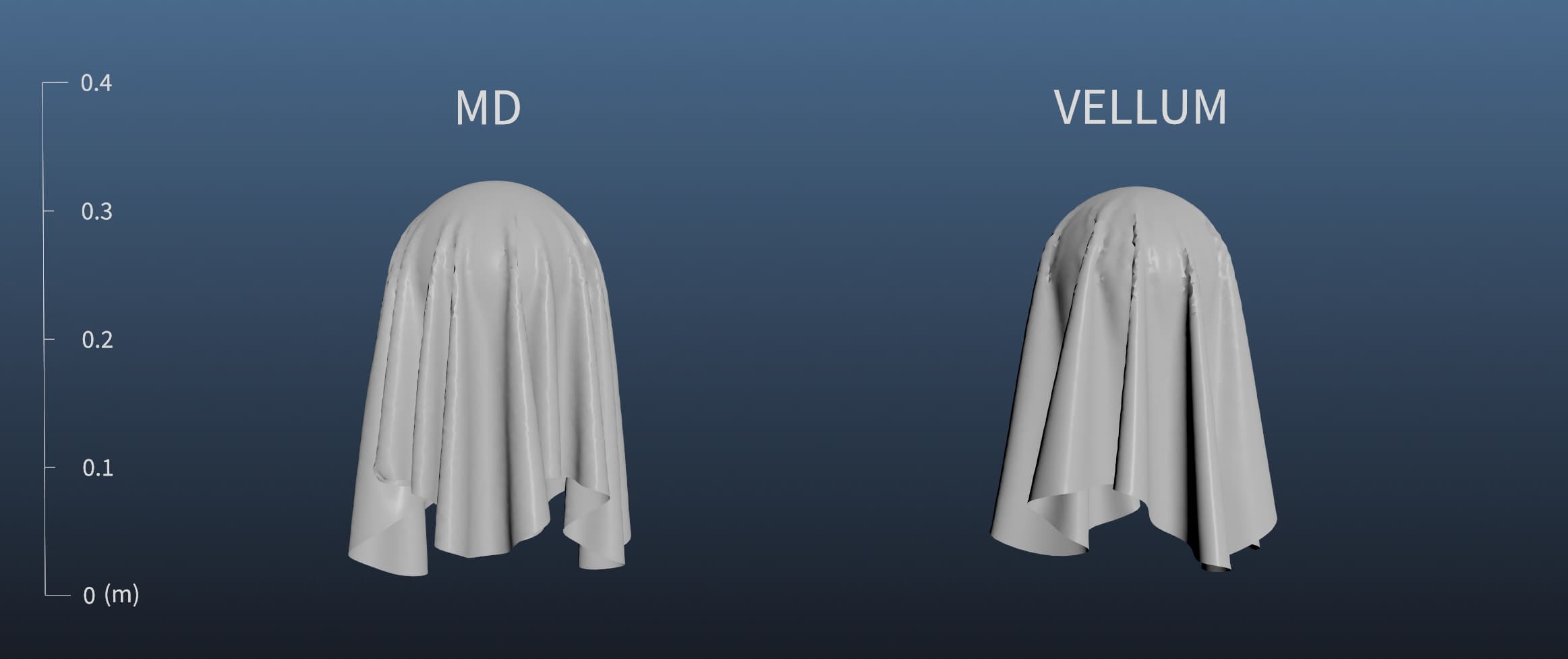

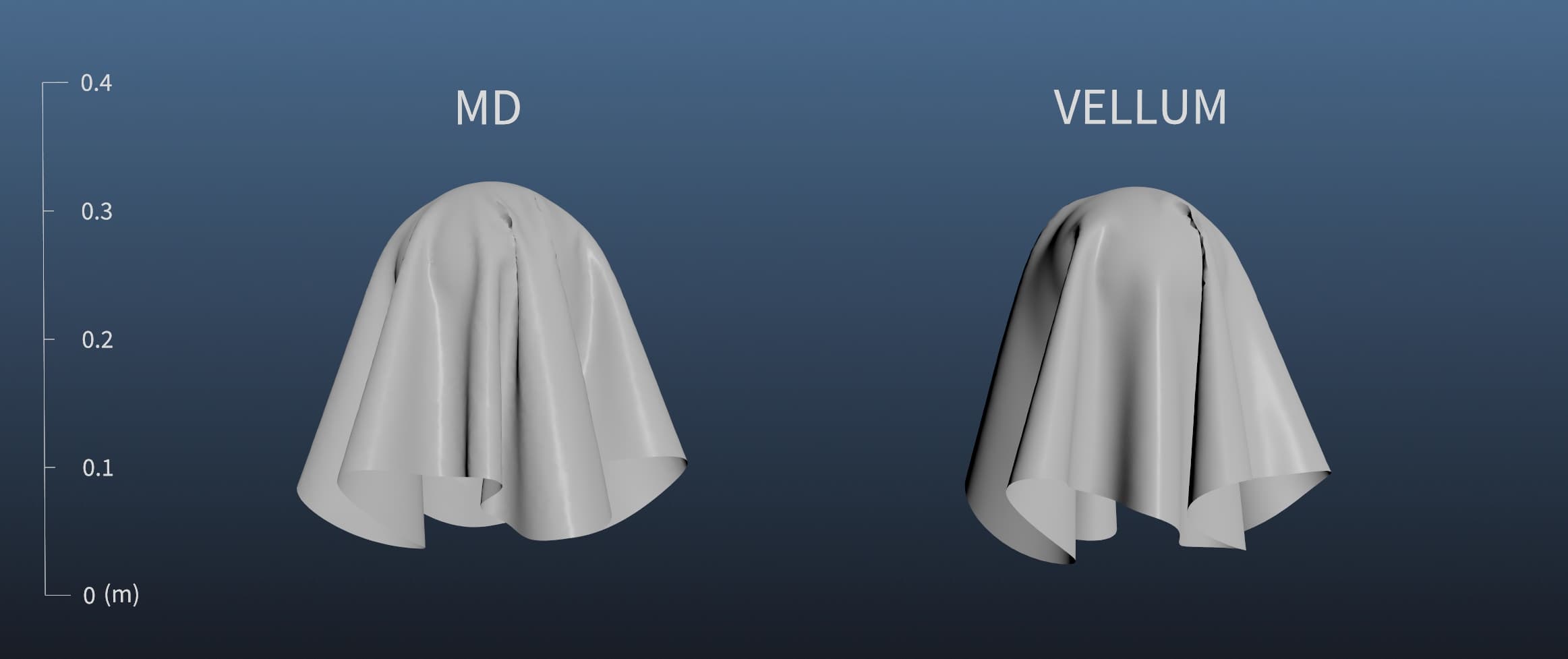

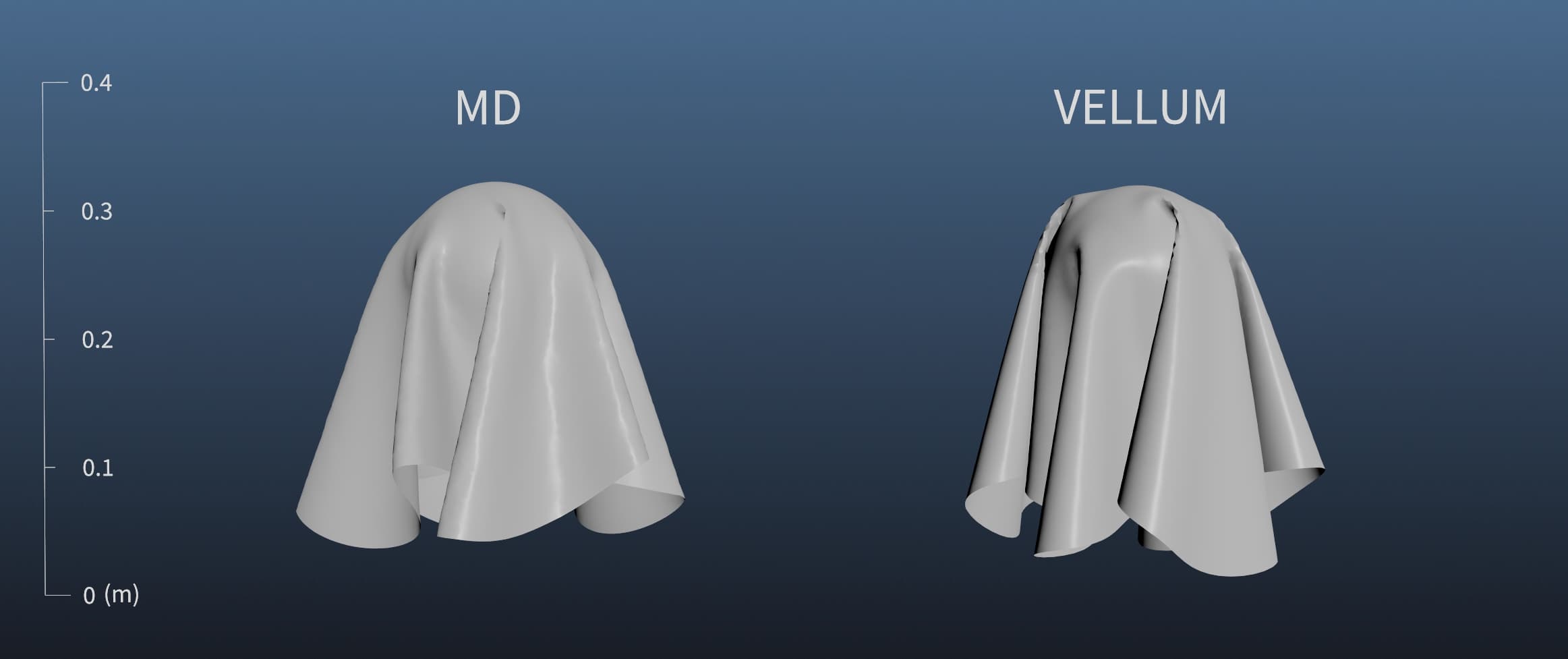

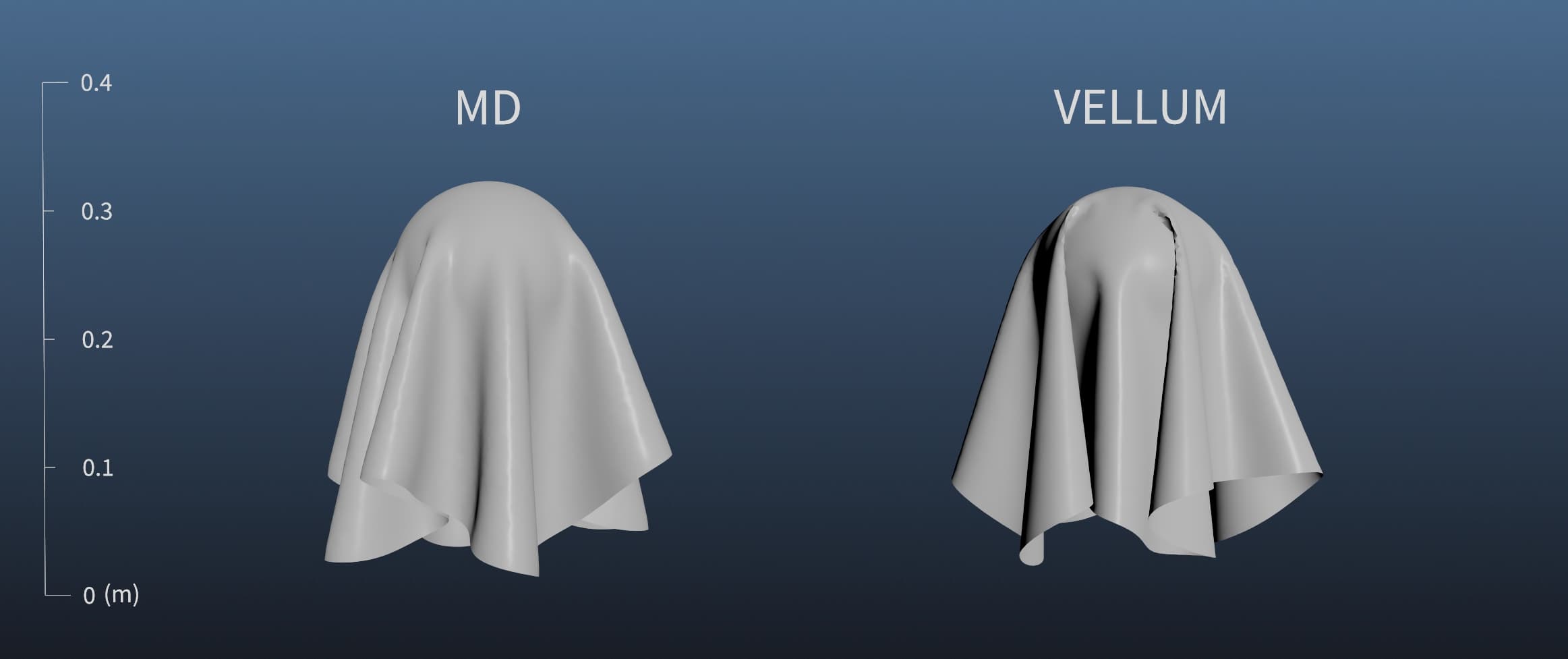

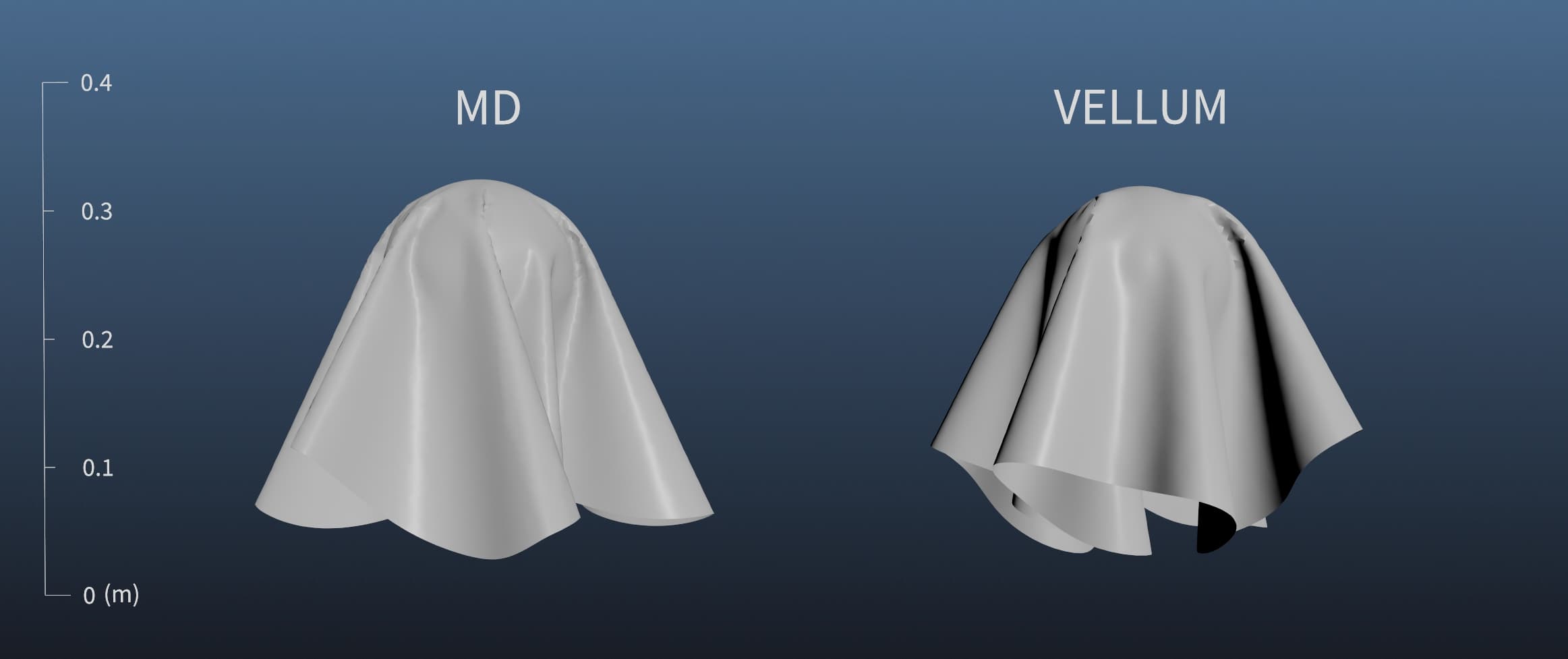

比較

MD/CLO3Dでは、非常に細かい設定が可能で、WeftやWarpごとに異なる値が設定できる。しかし、今回はHoudini側ではこれらの要素は無視し、DensityとBend Stiffnessのみを比較対象とした。
ジオメトリは、VMODから提供されているStudio Sceneを使用し、MDとHoudiniでベースのメッシュ解像度が近くなるように調整。

Marvelous Desinger

  • Particle Distance (mm): 5.0
  • Simulation quality: Fitting (Accurate Fabric)

Houdini

  • Remesh

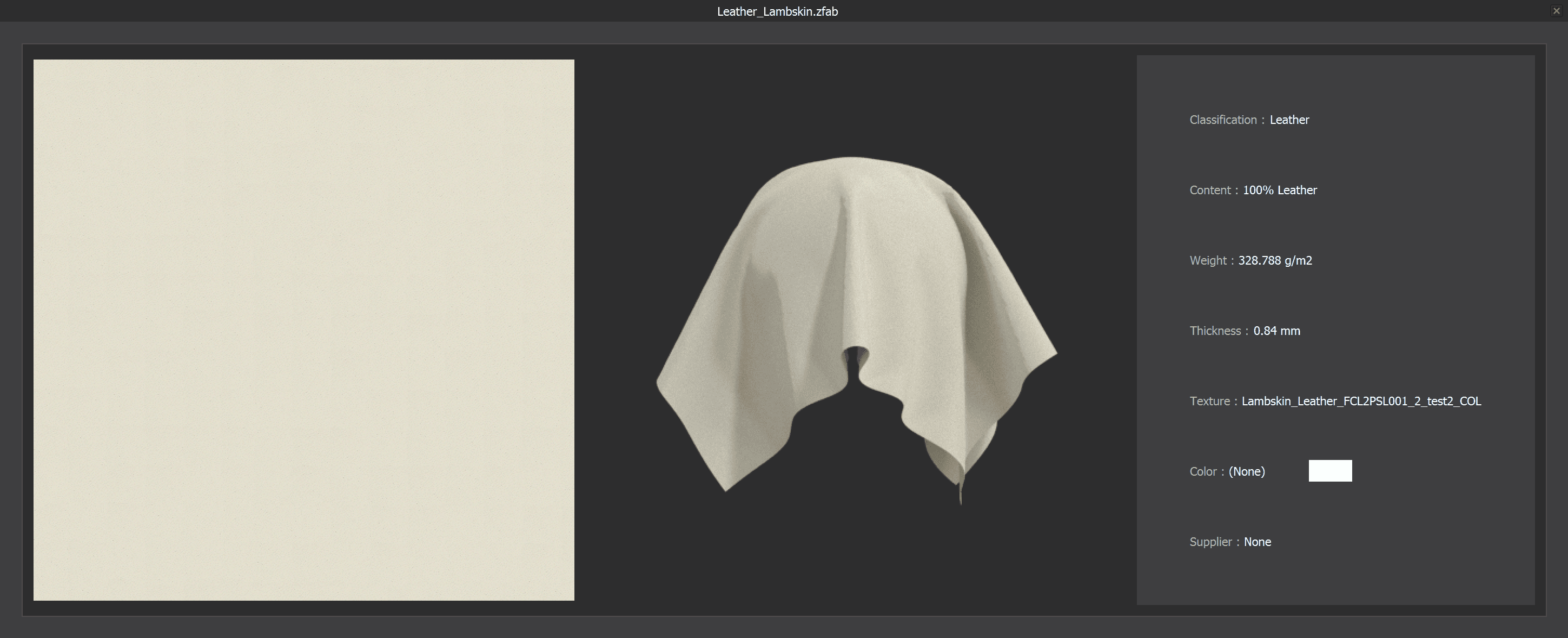

    • Target Size: 0.005 (Trim_Full_Grain_Leatherでは0.015)

  • Vellum Configure Cloth

    • Edge Length Scale: 0.25 → 0.2

  • Vellum Solver

    • Substeps: 10
    • Constraint Iterations: 250
    • Friction
      • Dynamic Scale: 0.8

生地データベース

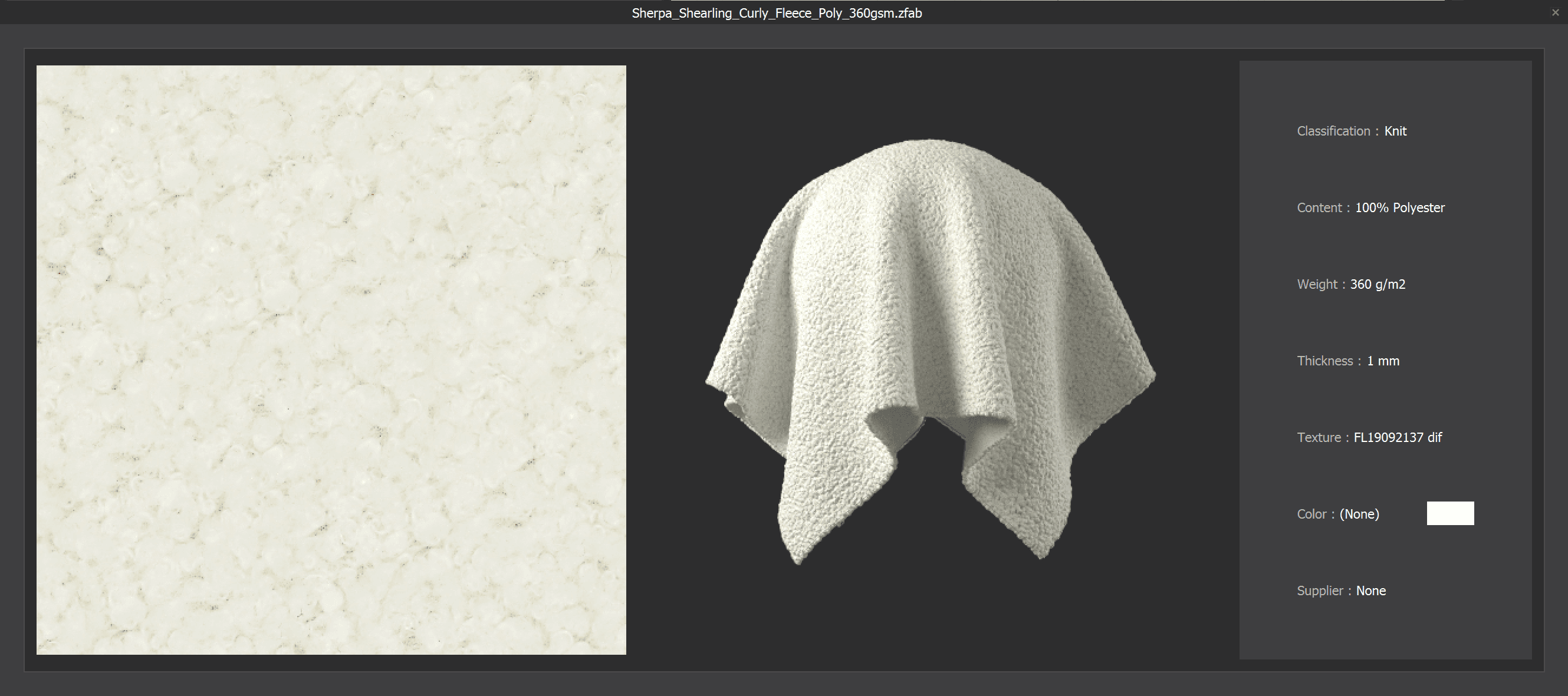

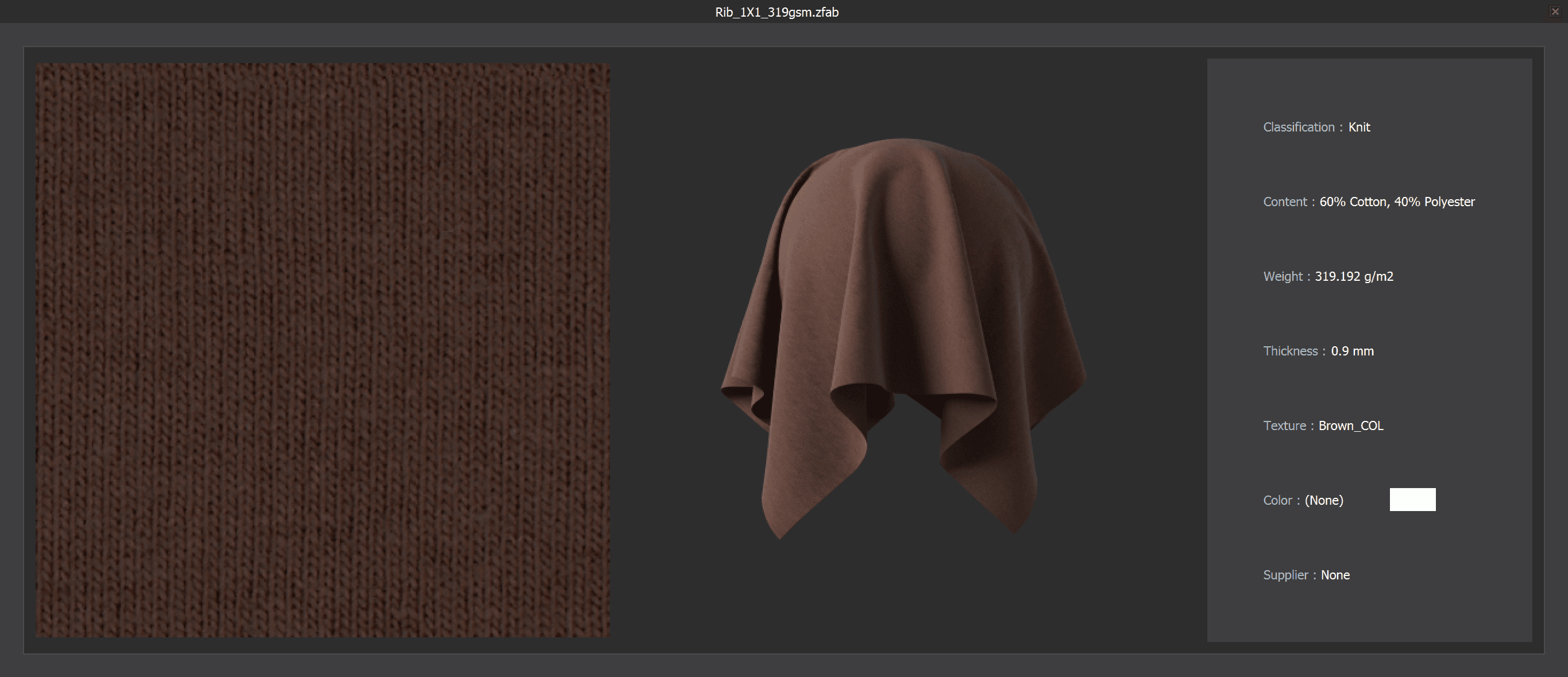

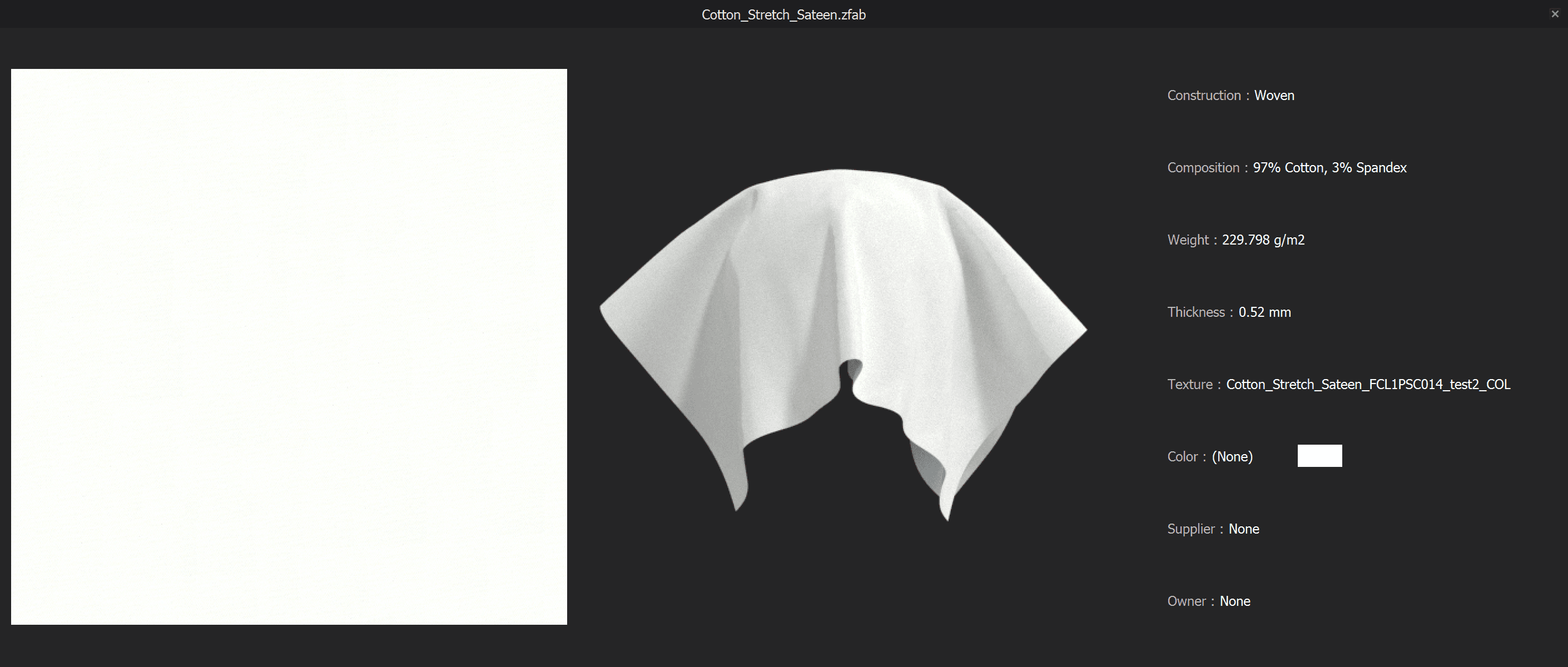

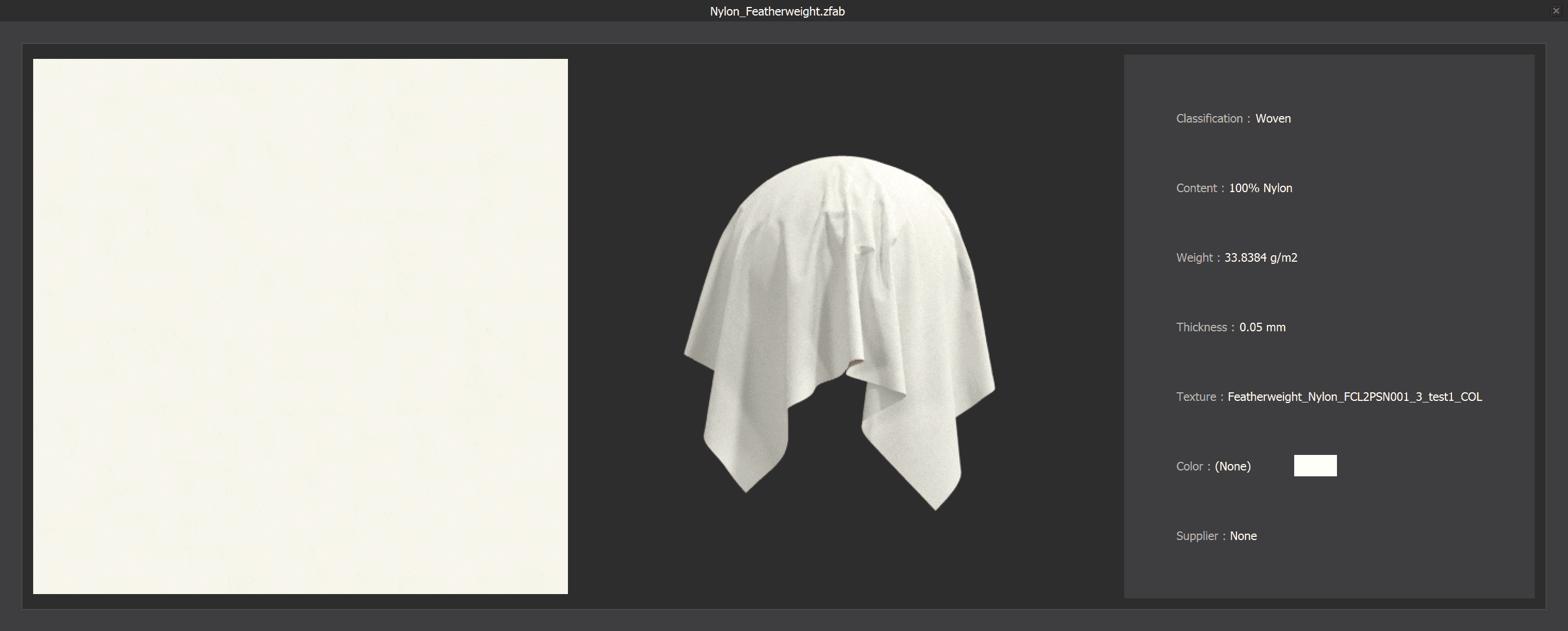

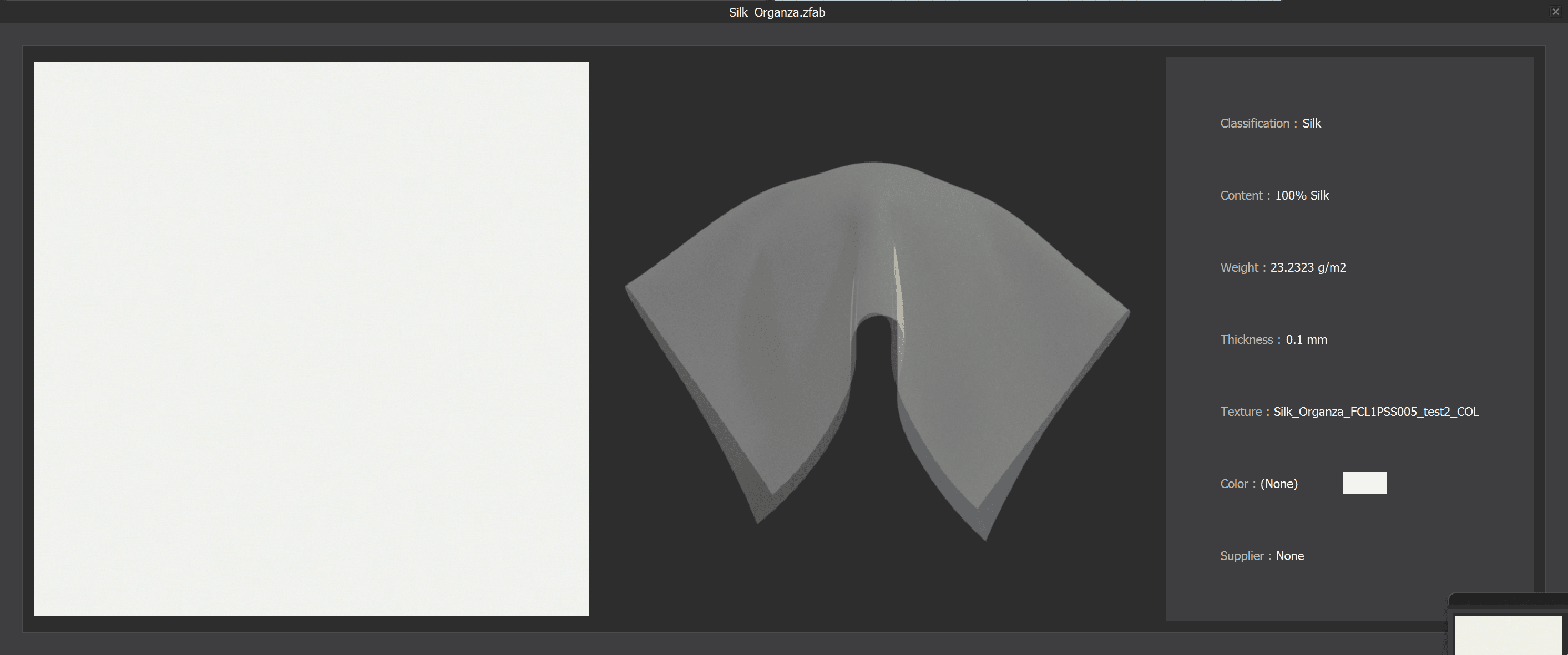

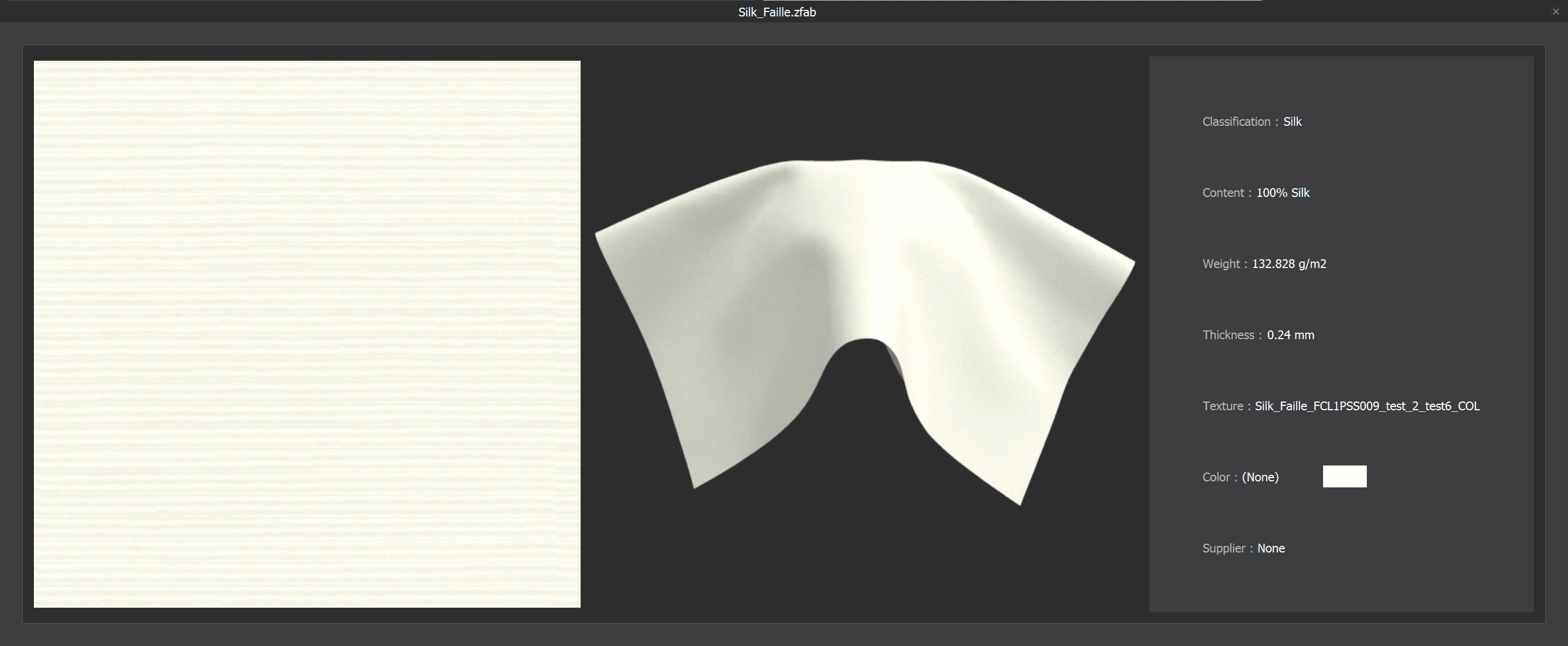

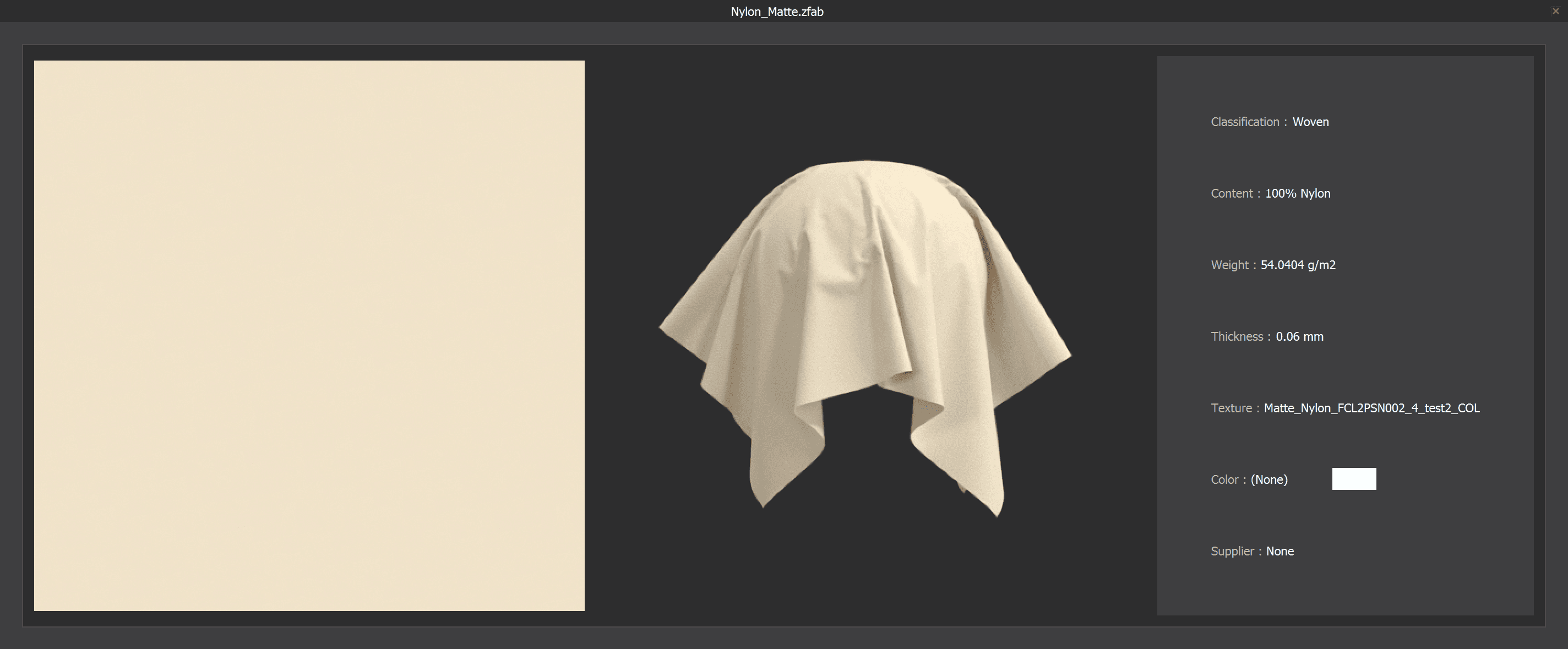

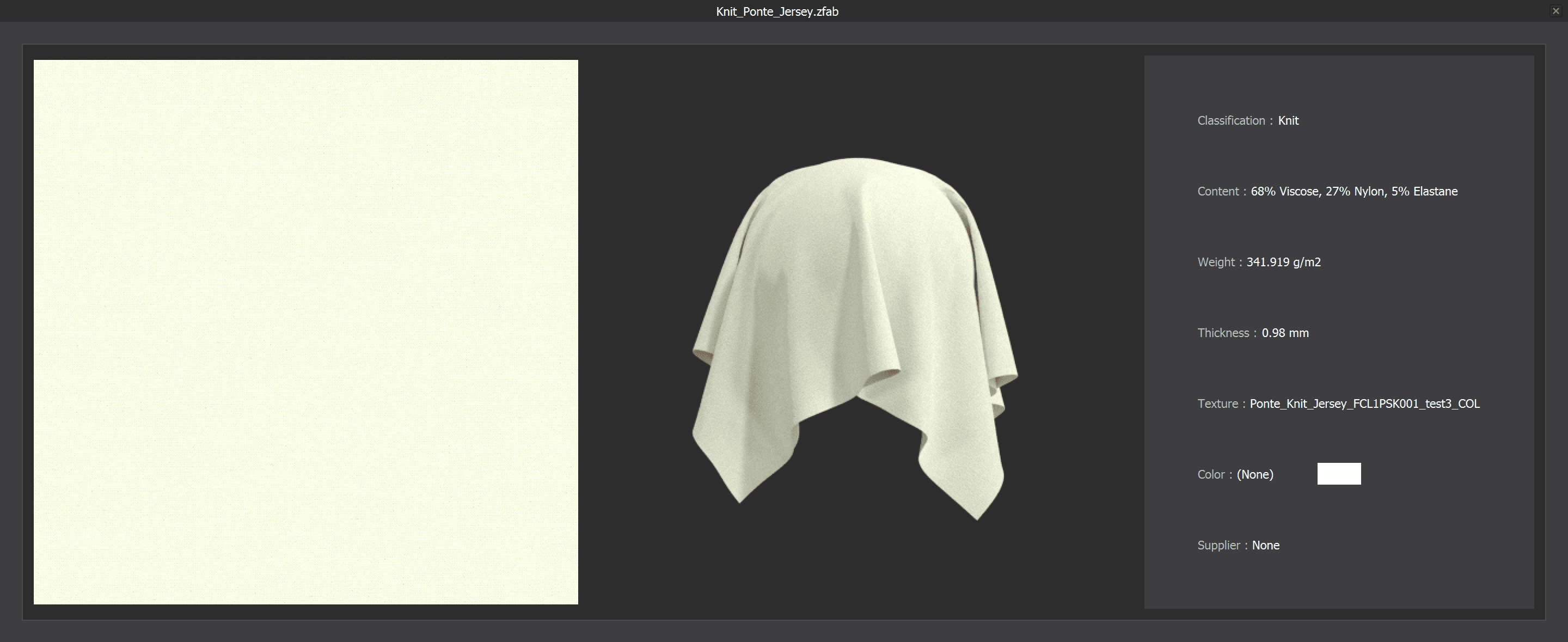

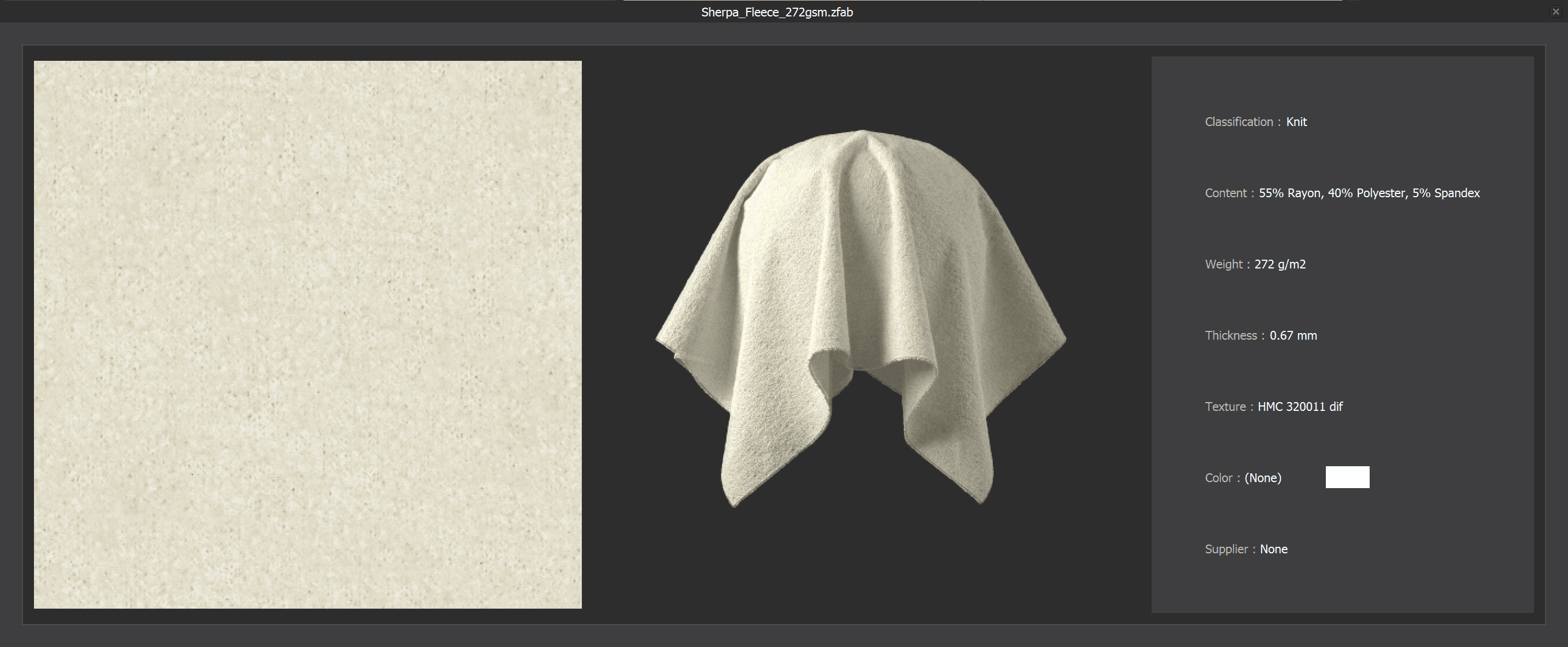

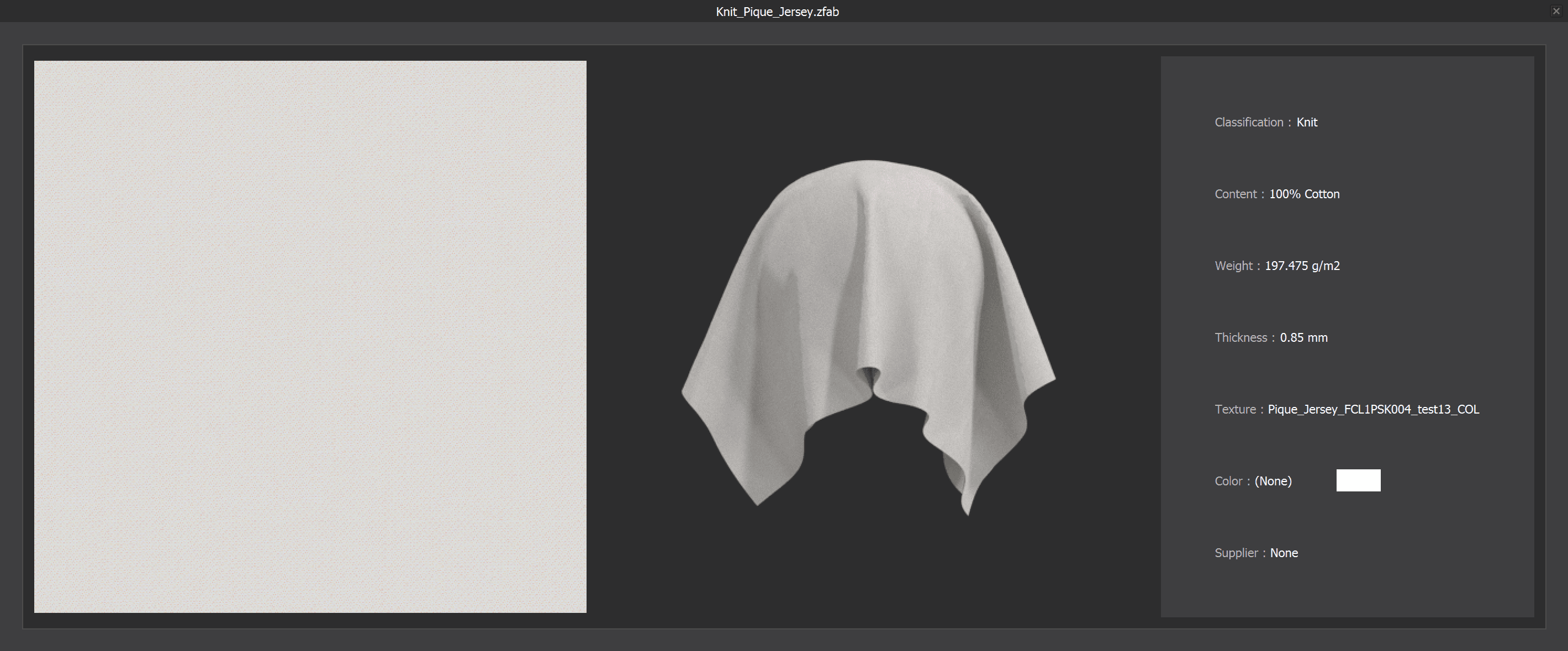

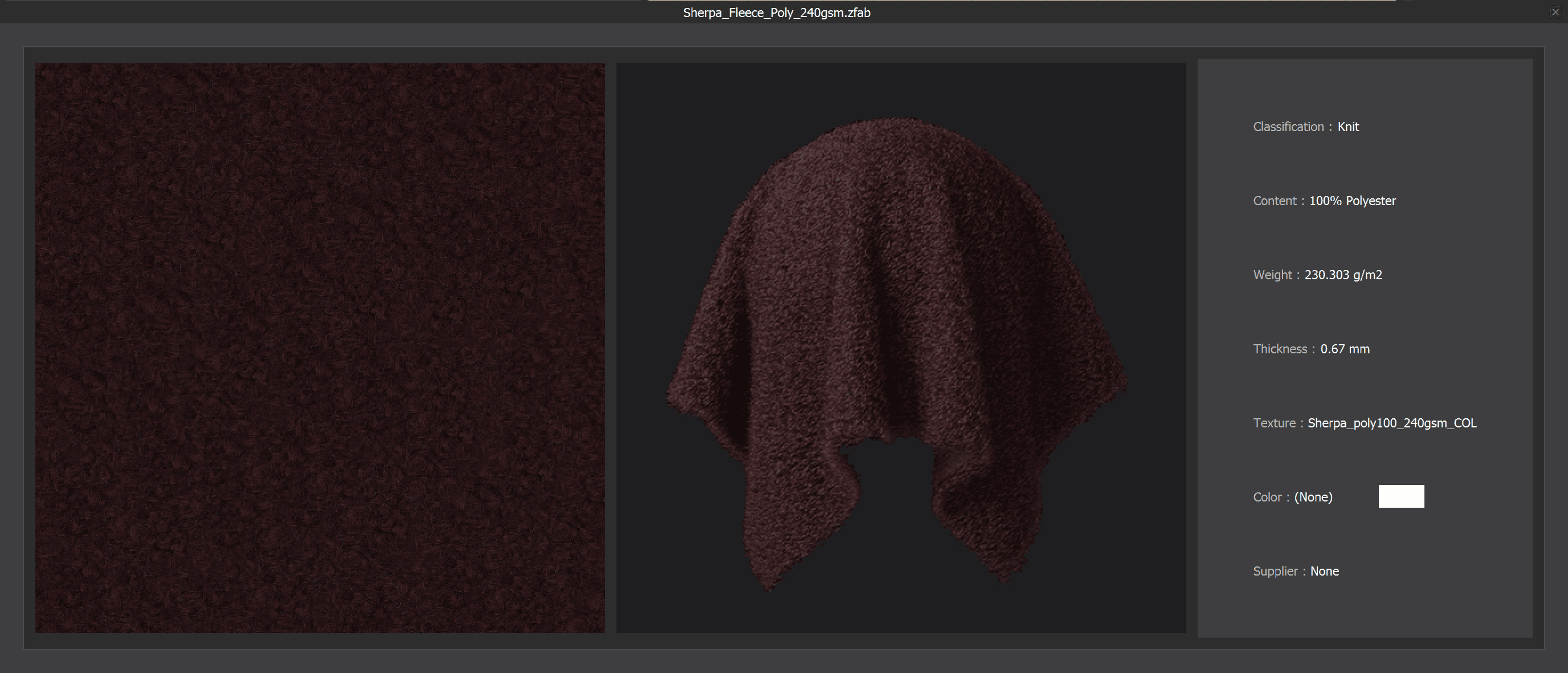

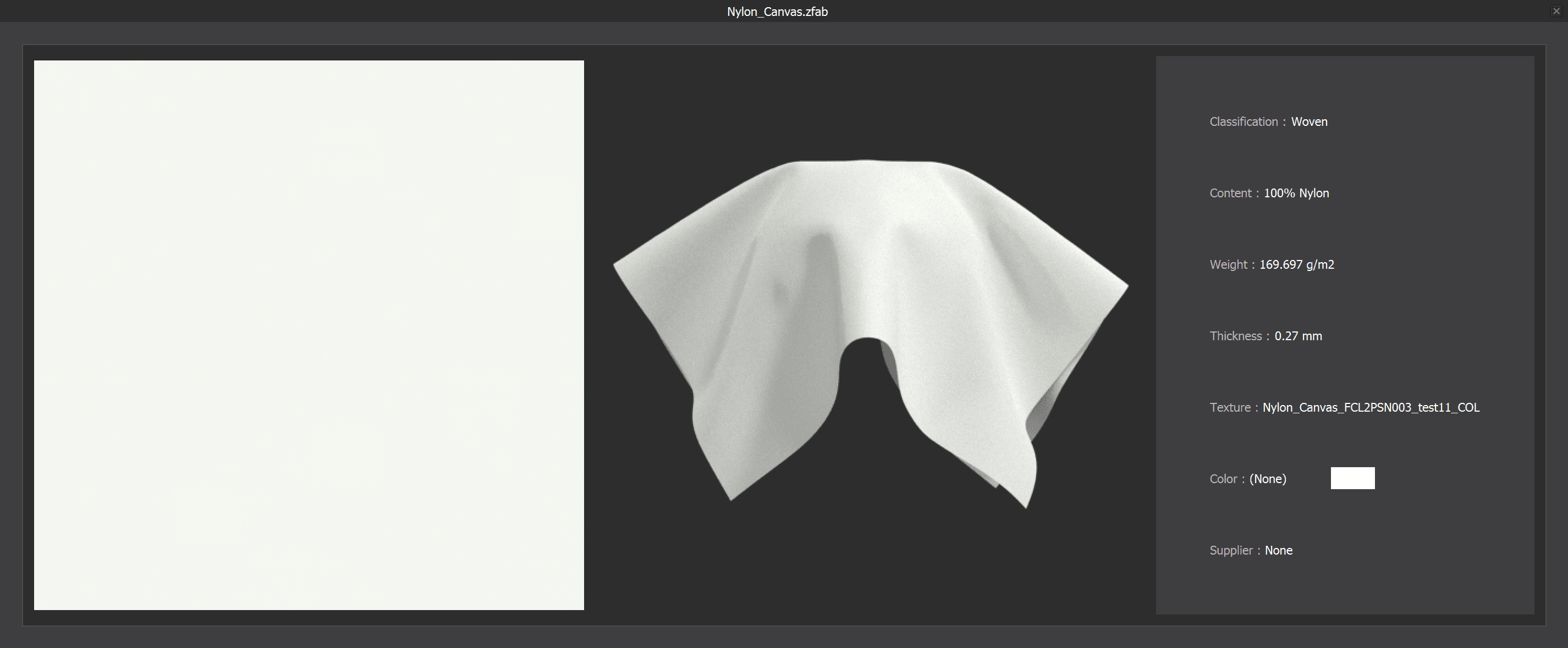

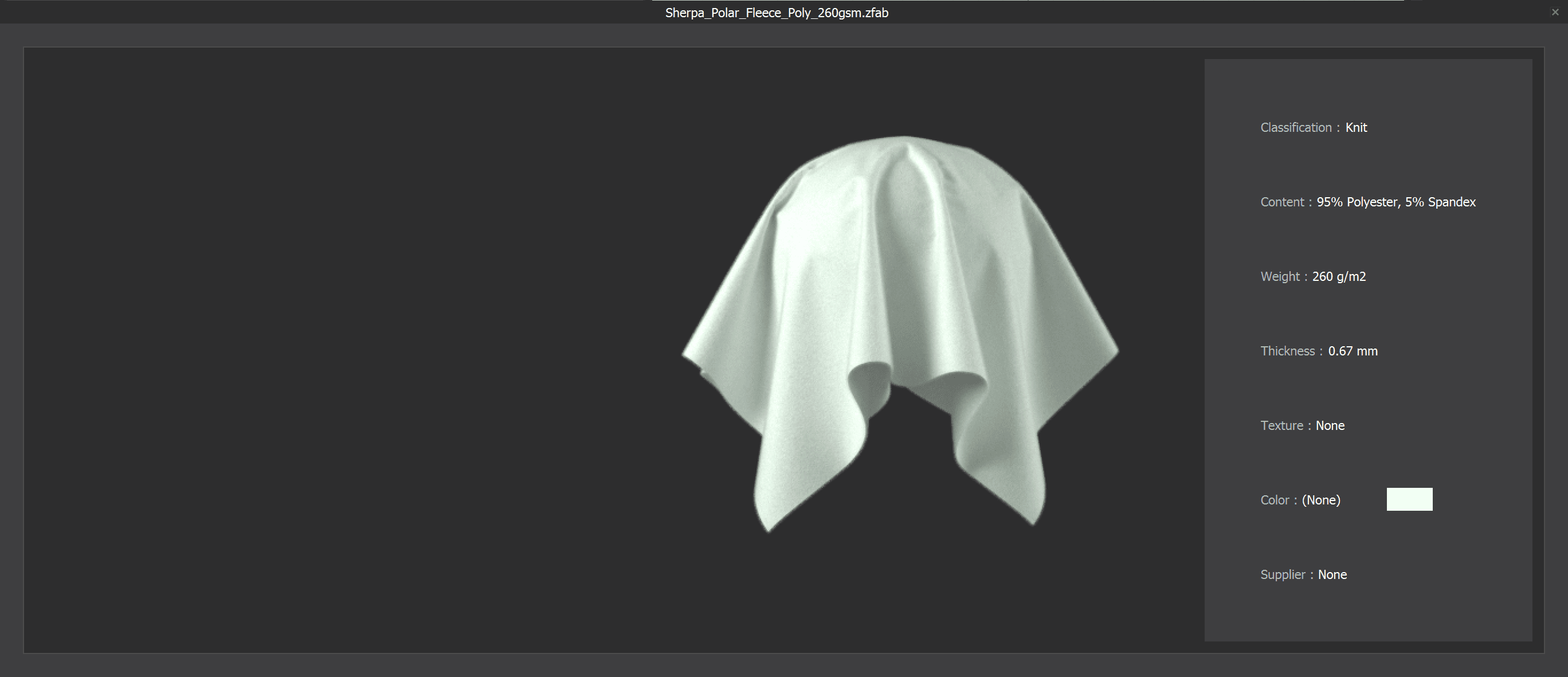

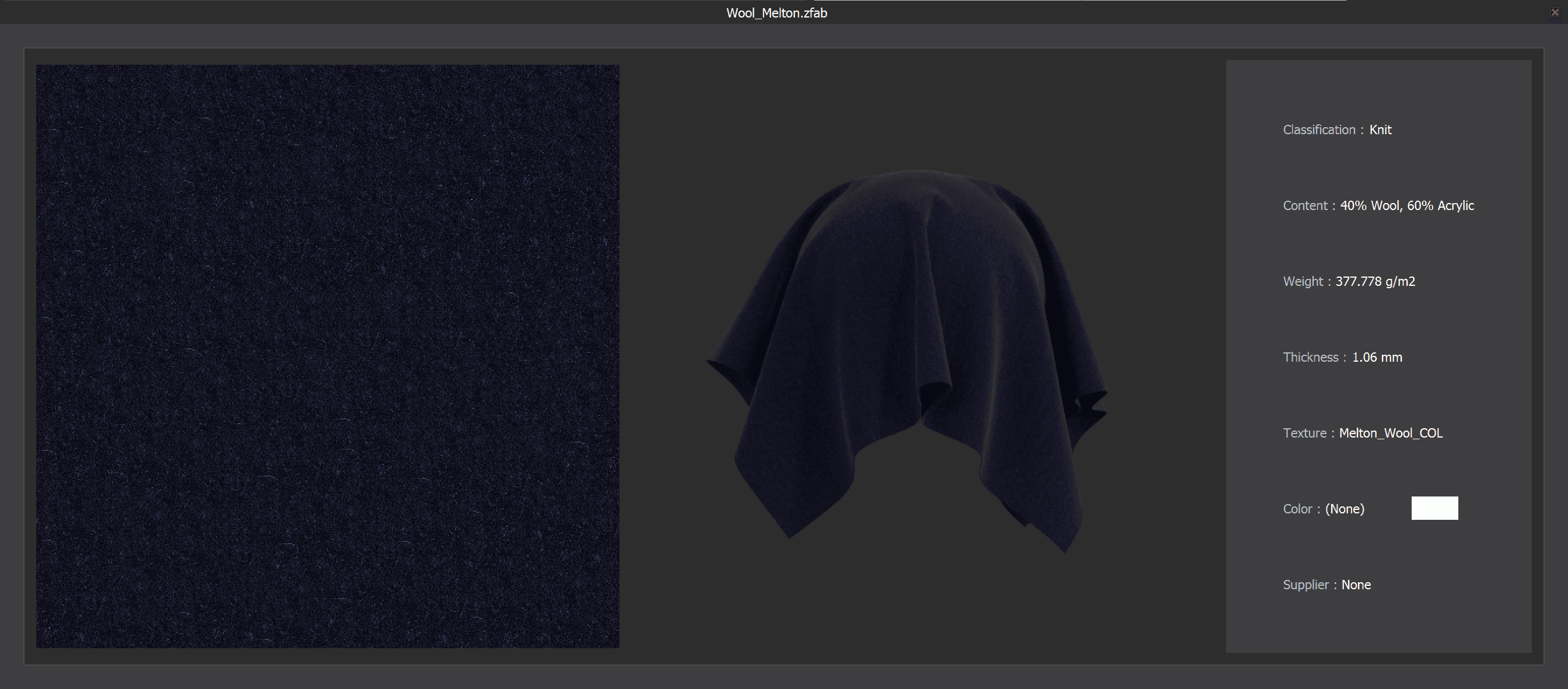

MD/CLO3Dのプリセットだけでなく、実際の生地データを元に作業したい場合があると思うが、その場合はVMOD 3Dが使える。VMOD 3DではSwatchOnで販売されている実際の生地をデジタルデータ化したものが購入できる。

VMOD 3D Library: Customizable, hyper-realistic digital fabrics


Cottton

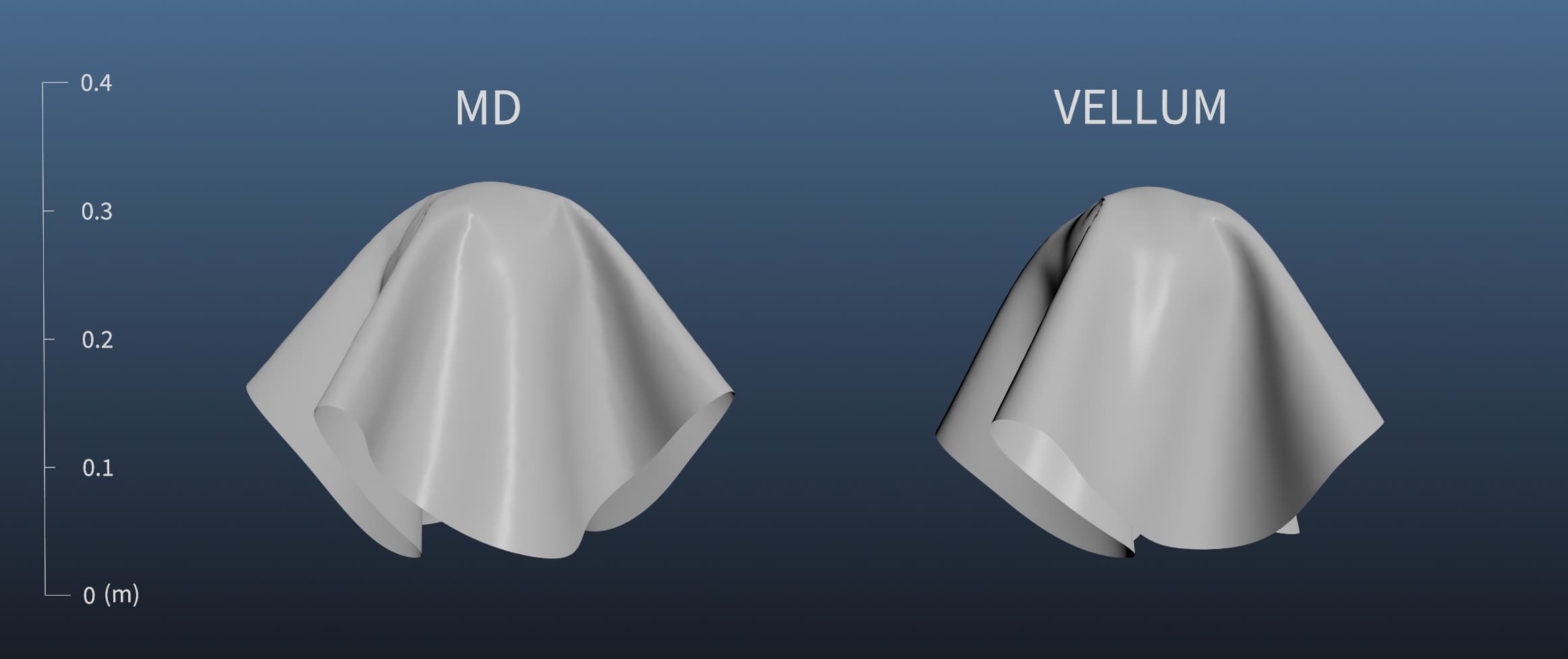

Cotton_Canvas

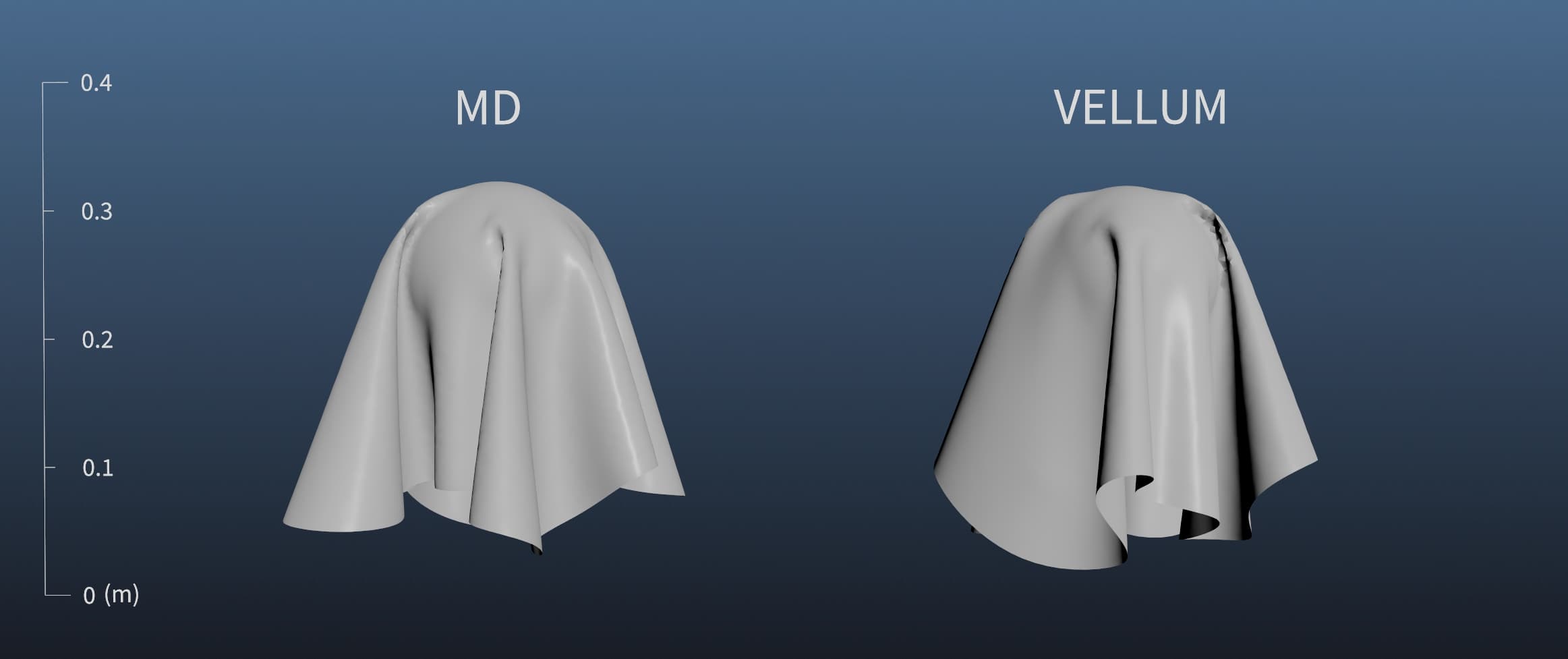

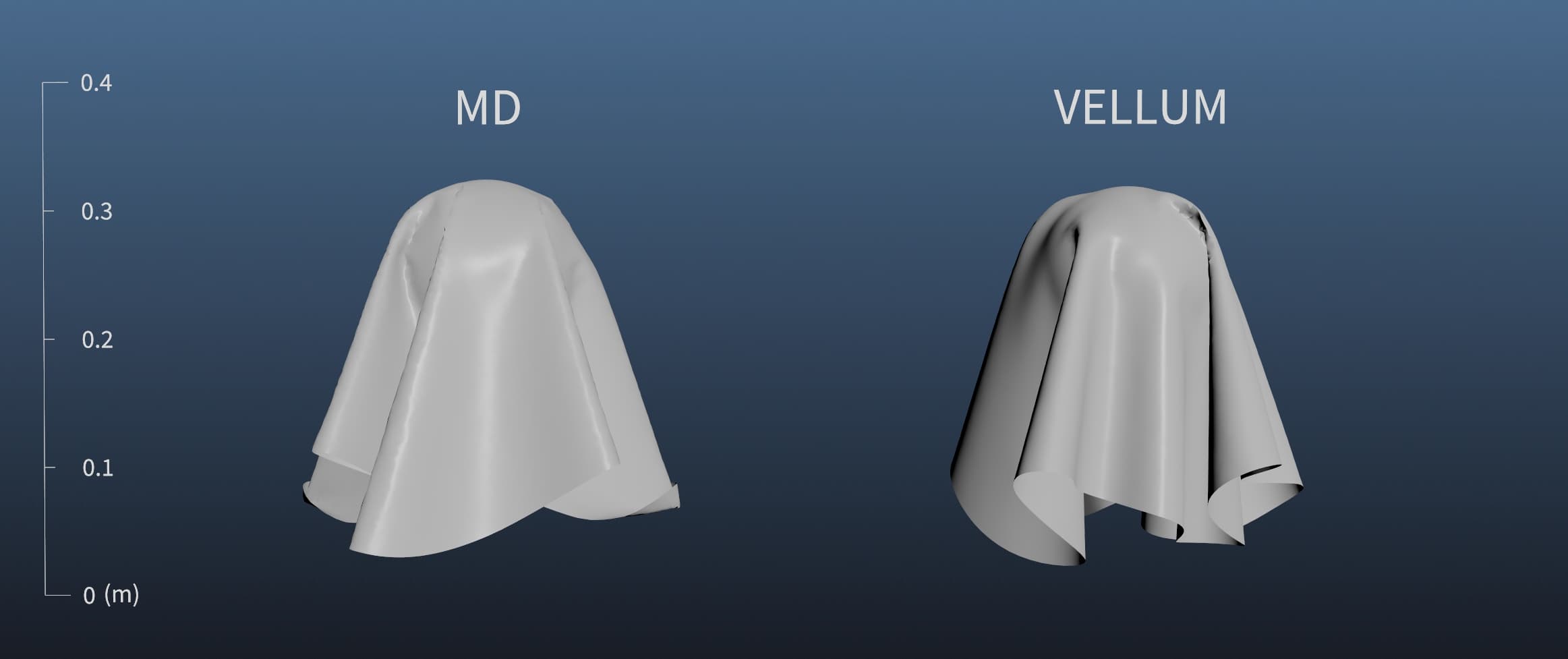

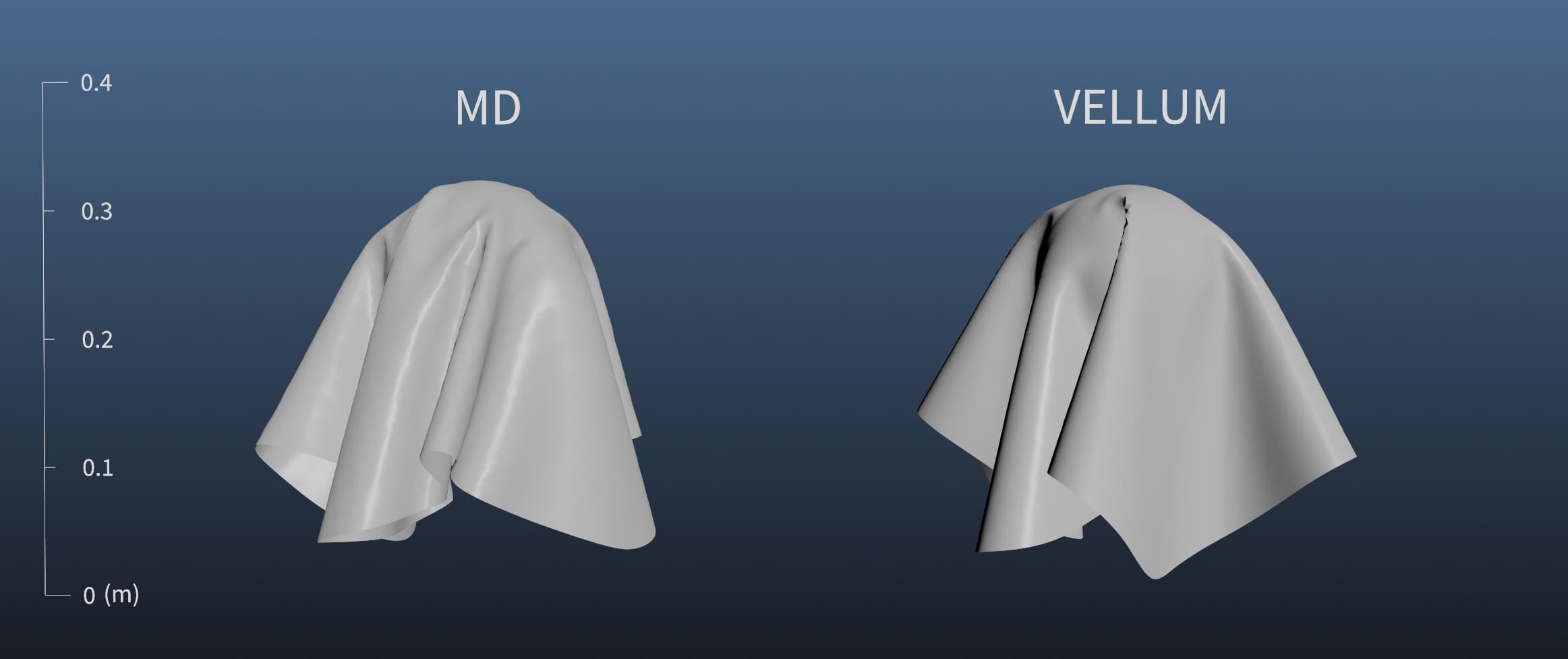

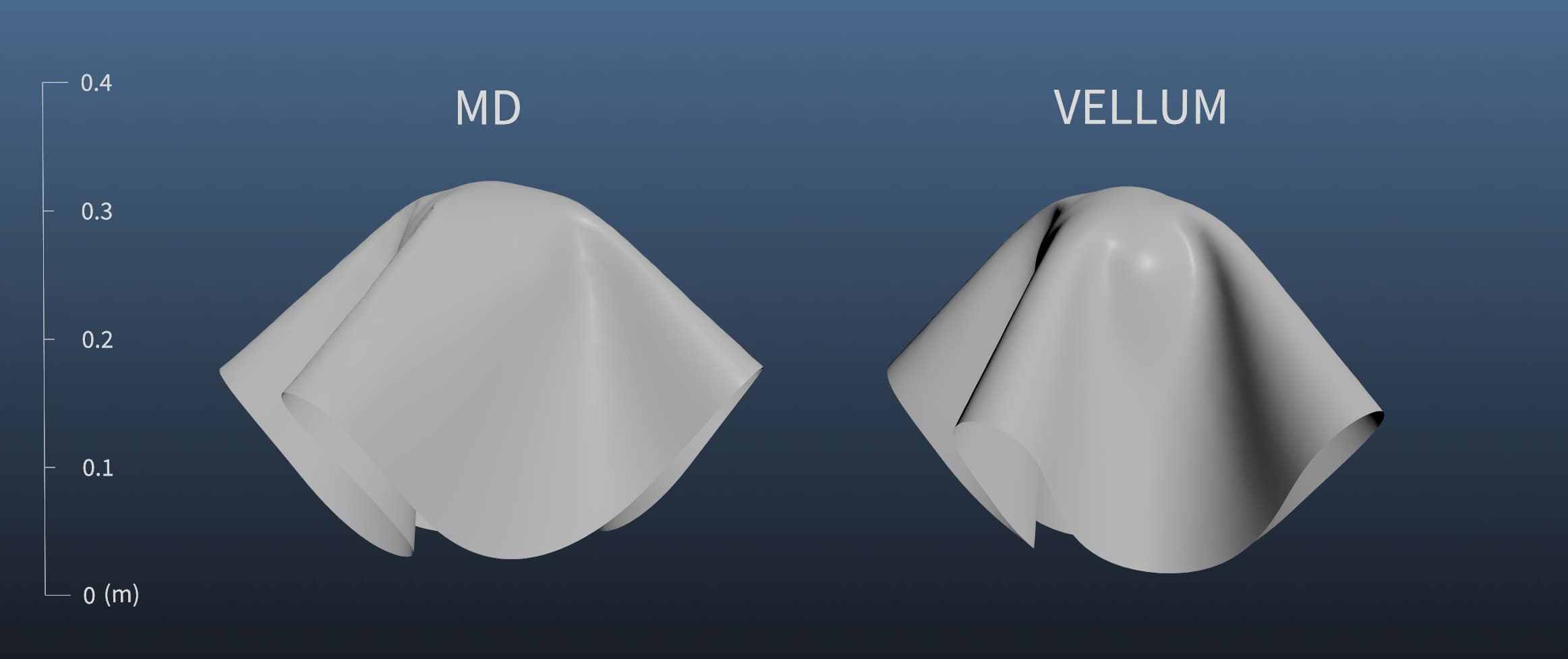

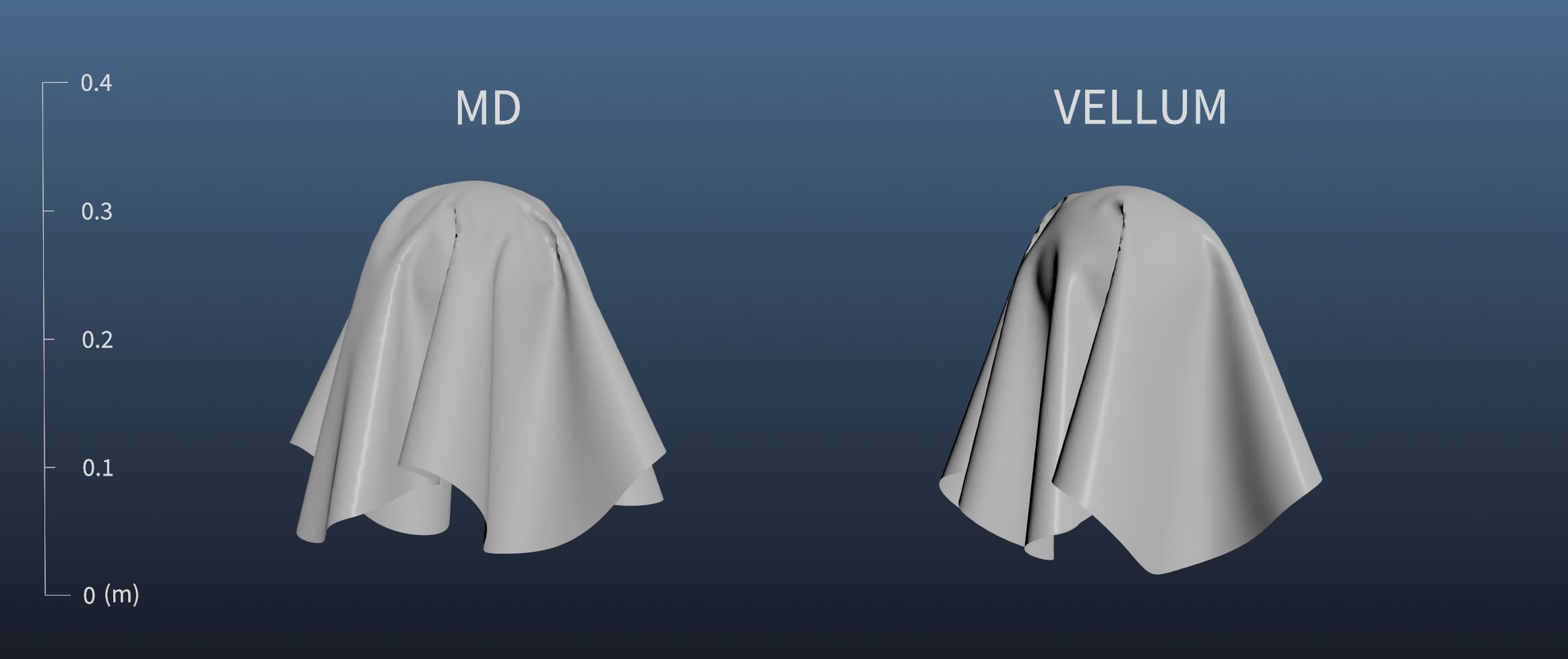

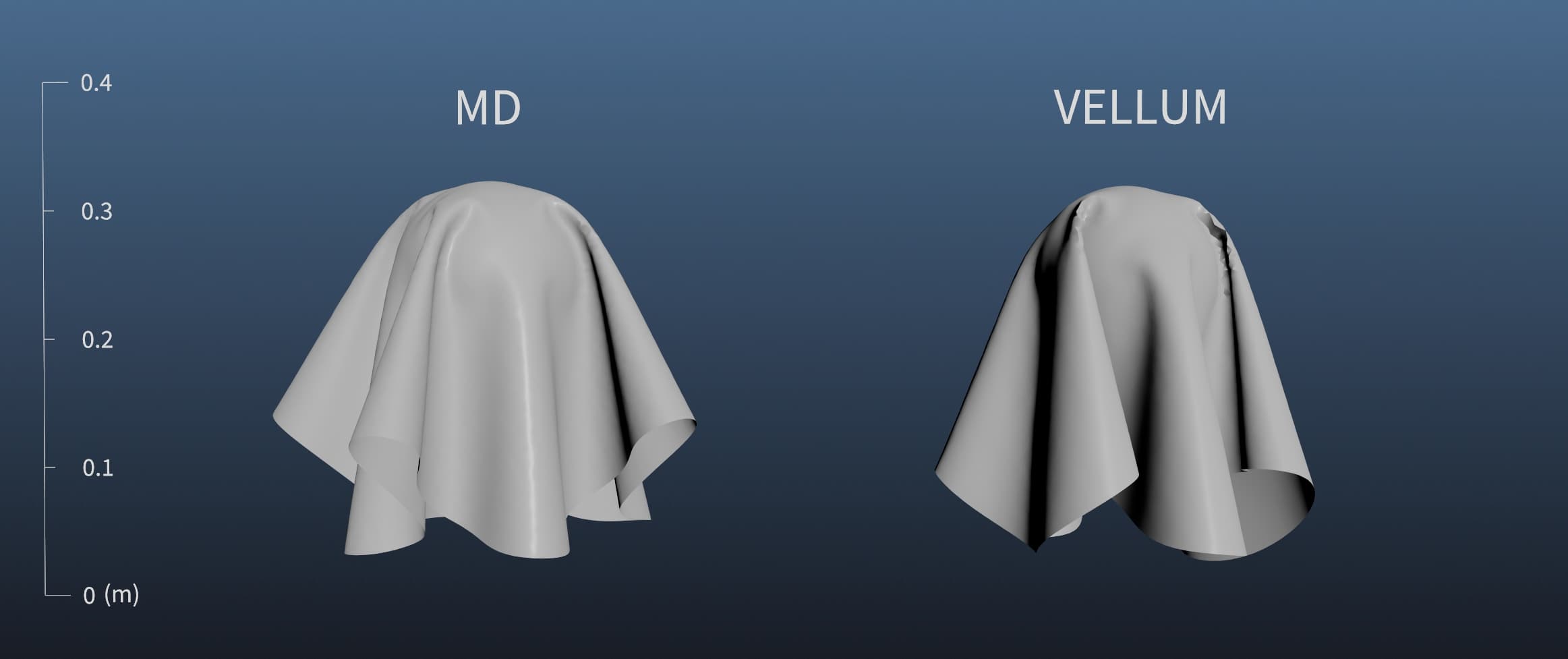

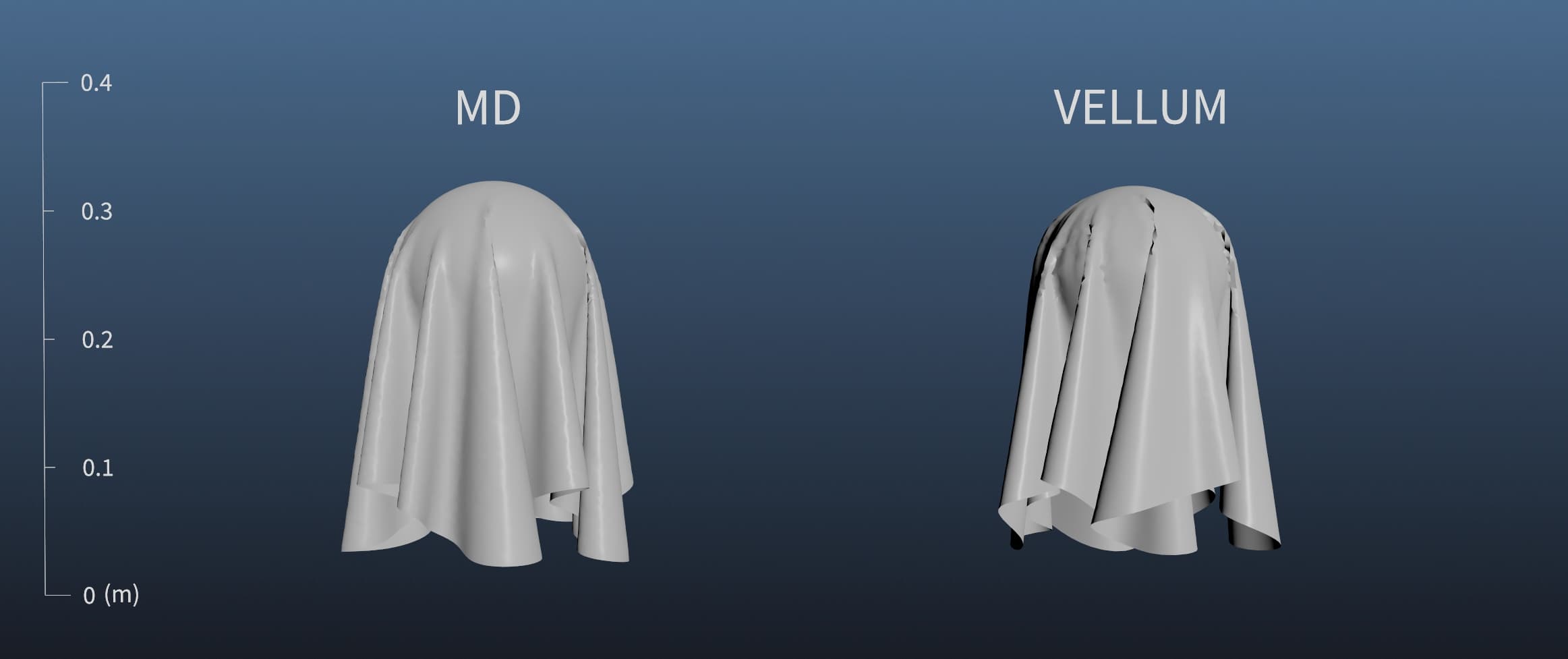

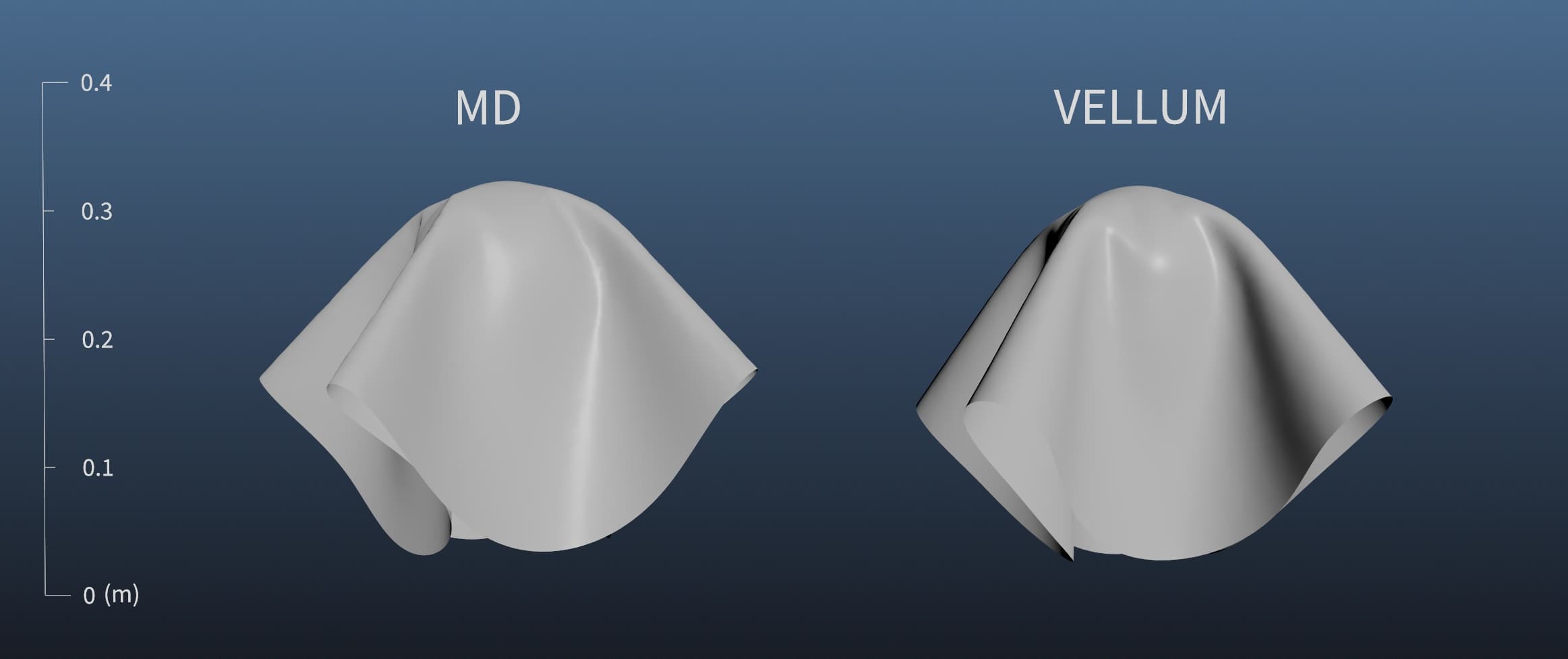

Cotton_Canvas_md Cotton_Canvas_hou

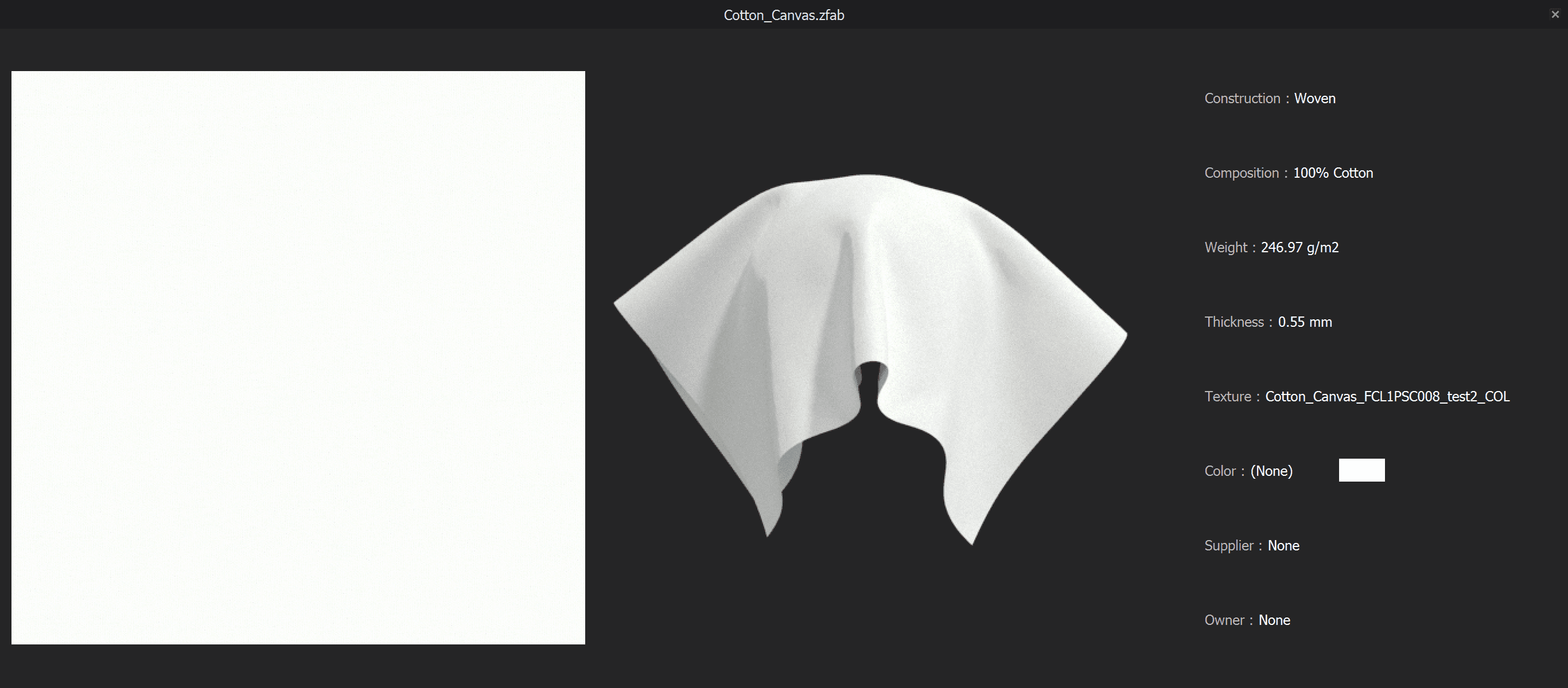

Cotton_Canvas
Weight (=Density)246.97 (g/m2)
Thickness0.55 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)768751 (g/s2) / 565197 (g/s2)
Shear (Left / Right)284066 (g/s2) / 284066 (g/s2)
Bending (Weft / Warp)18405 (g * mm2/s2) / 49084 (g * mm2/s2)
Bending-Bias (Left / Right)30299 (g * mm2/s2) / 30299 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness8 * 0.00001

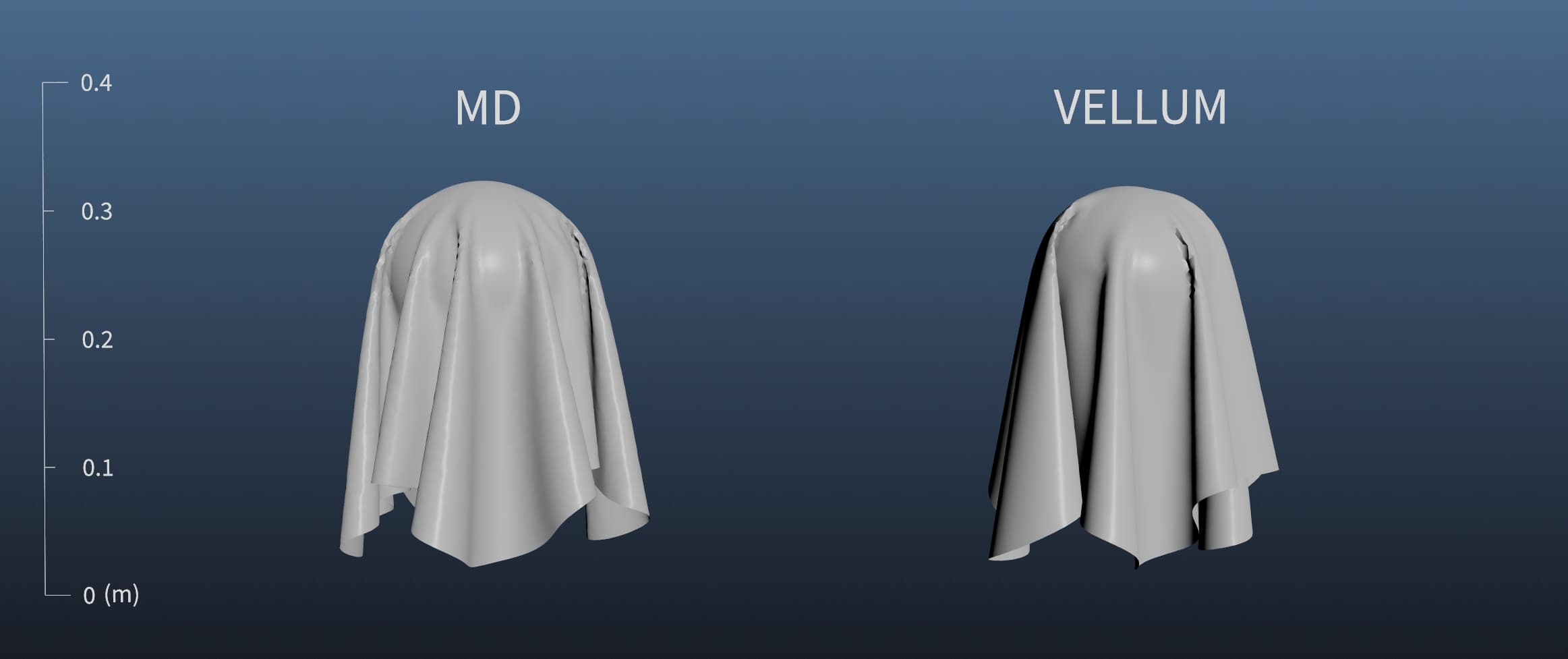

Cotton_Gabardine

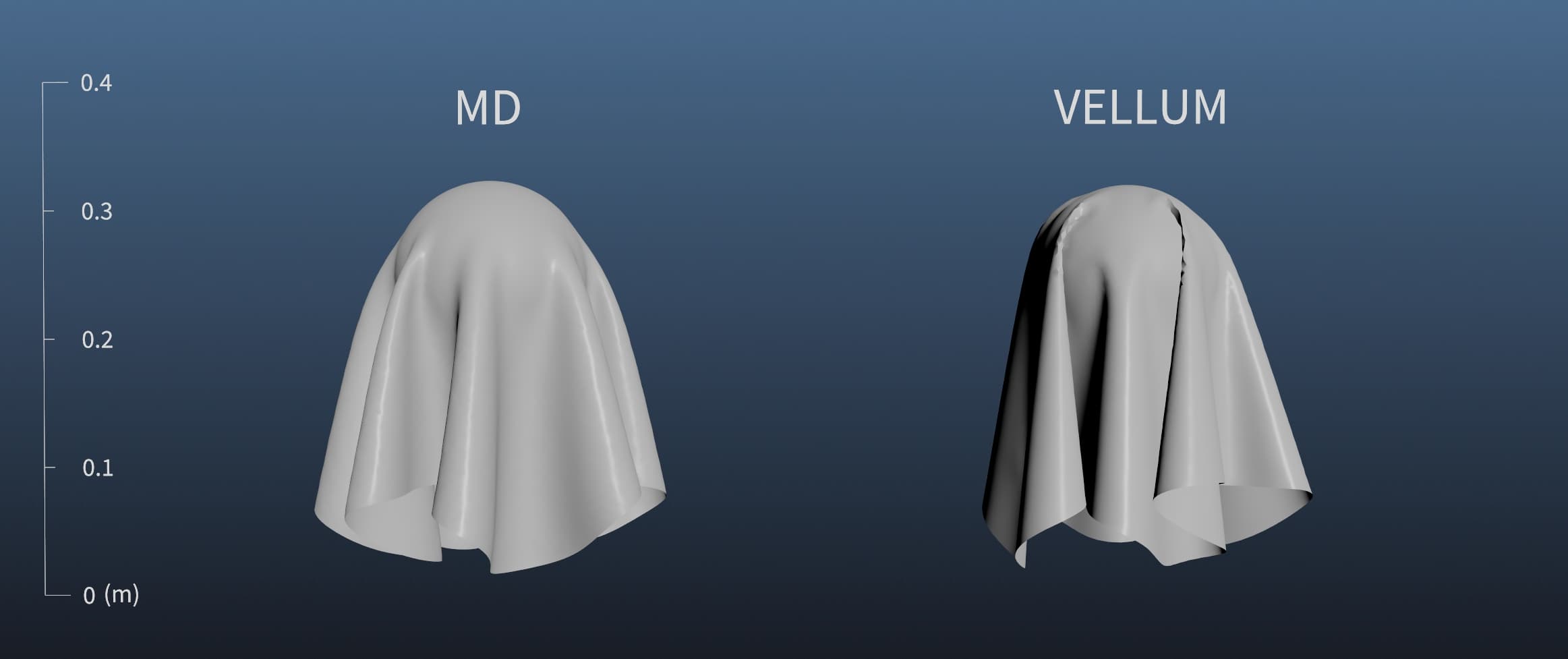

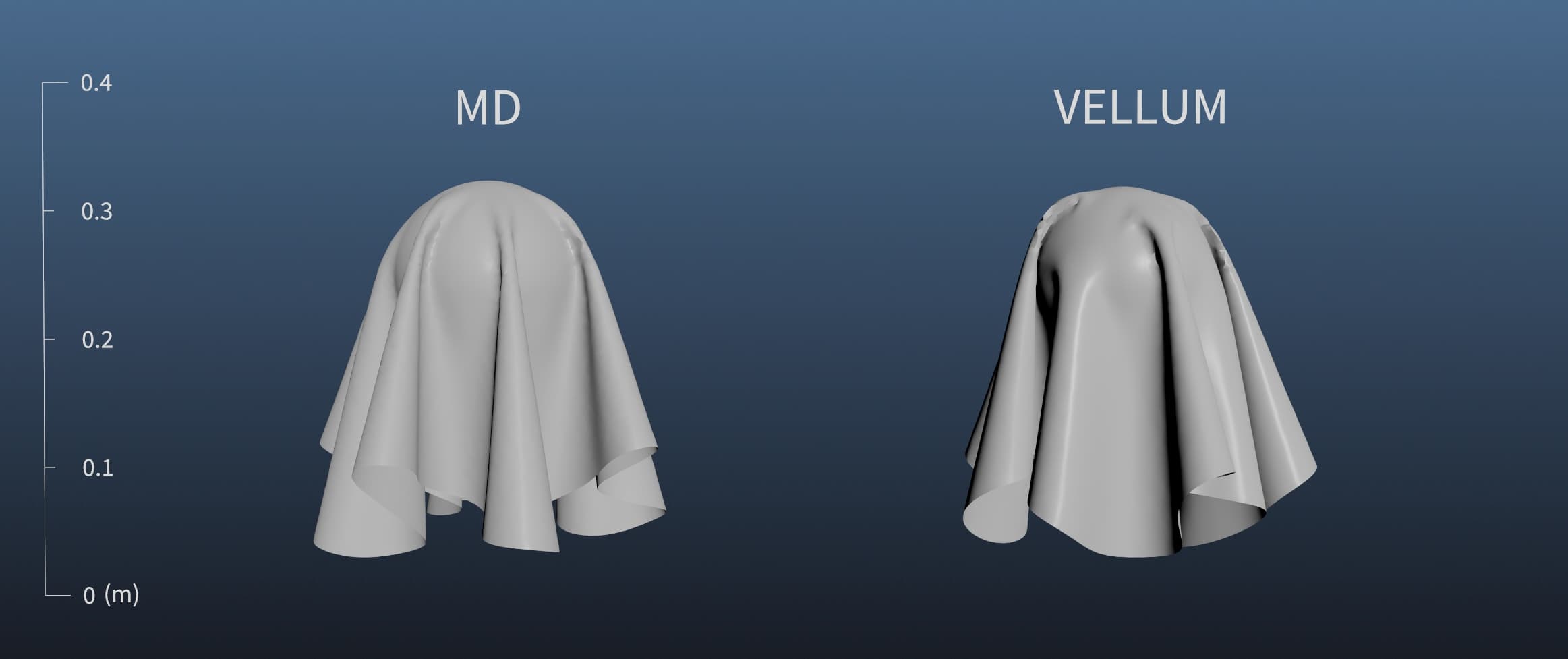

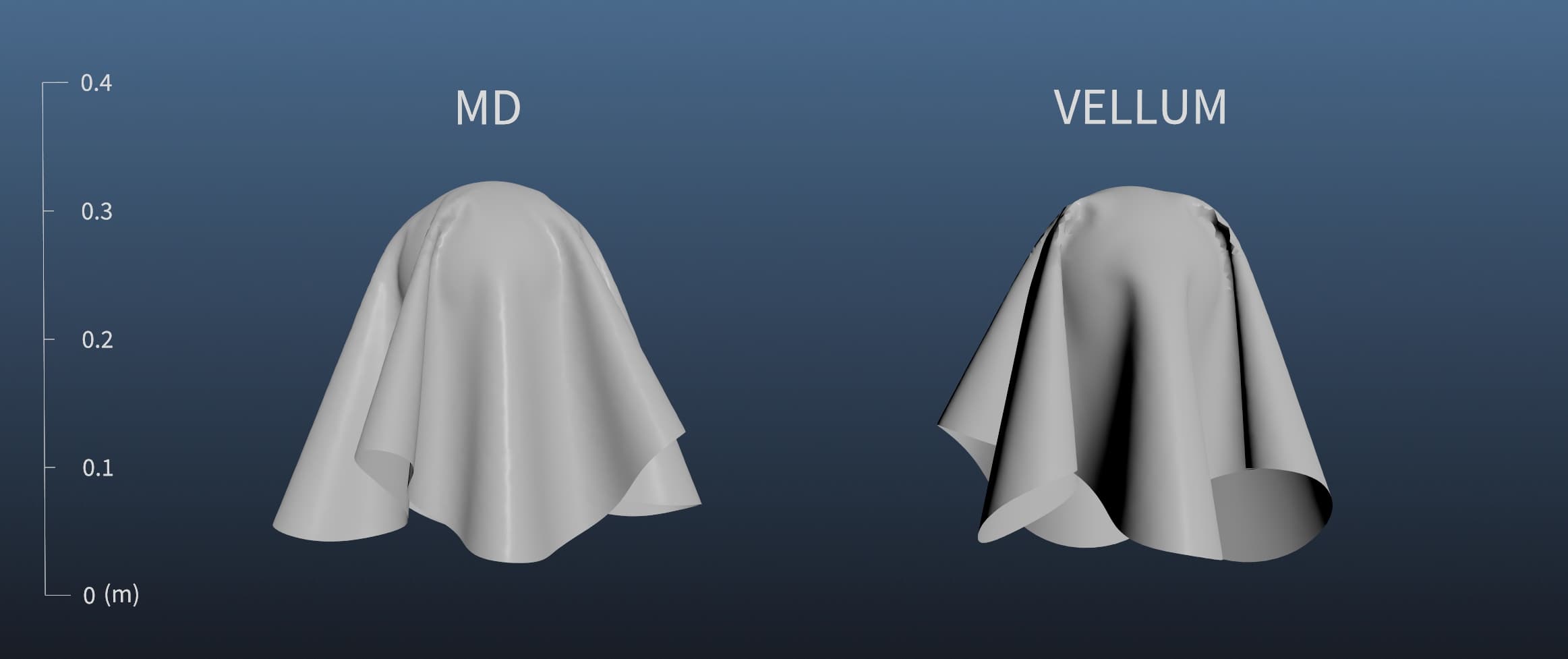

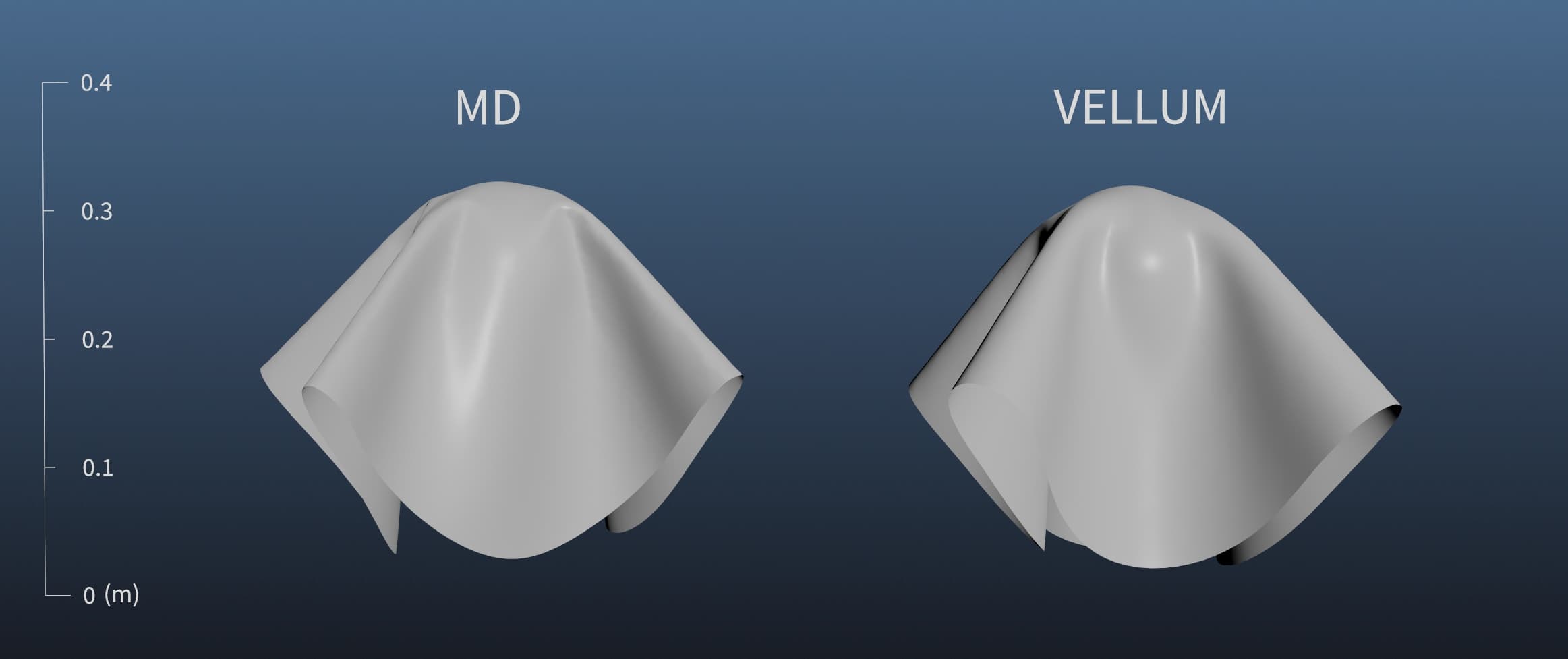

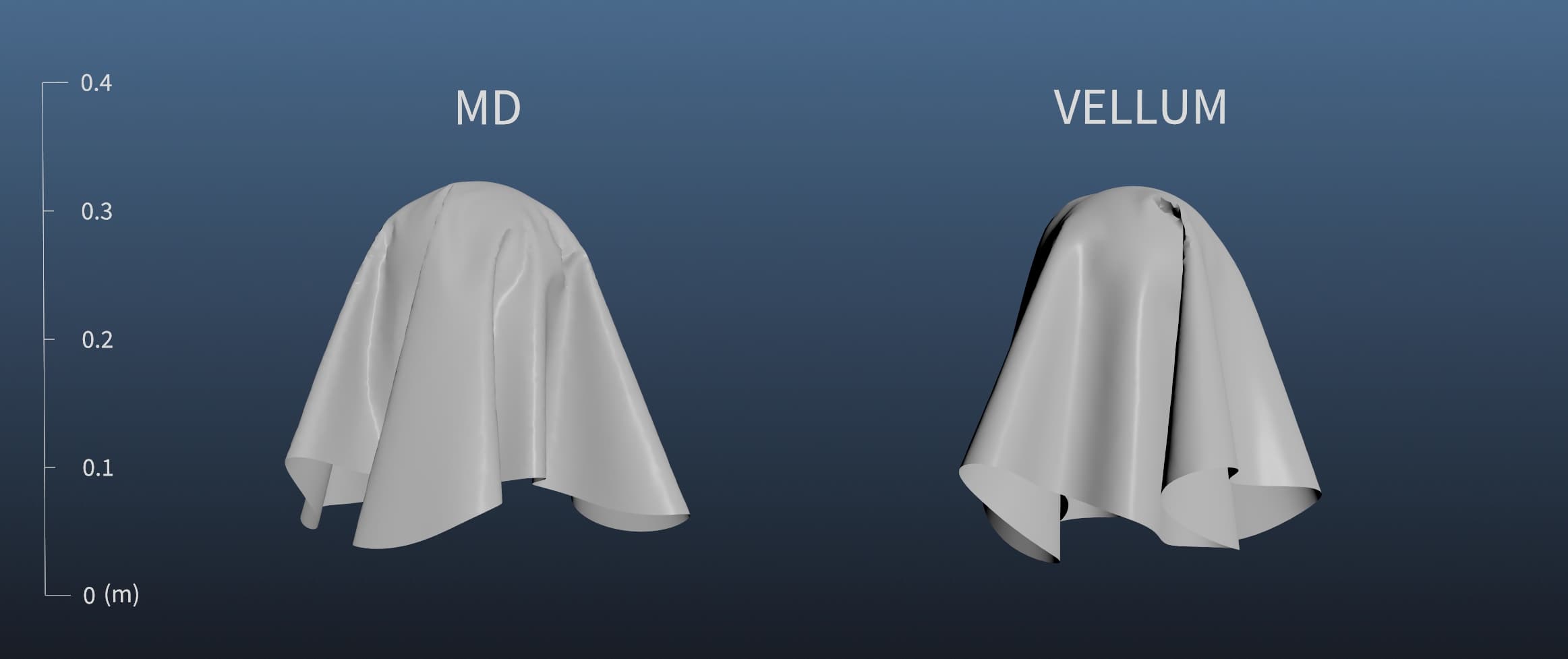

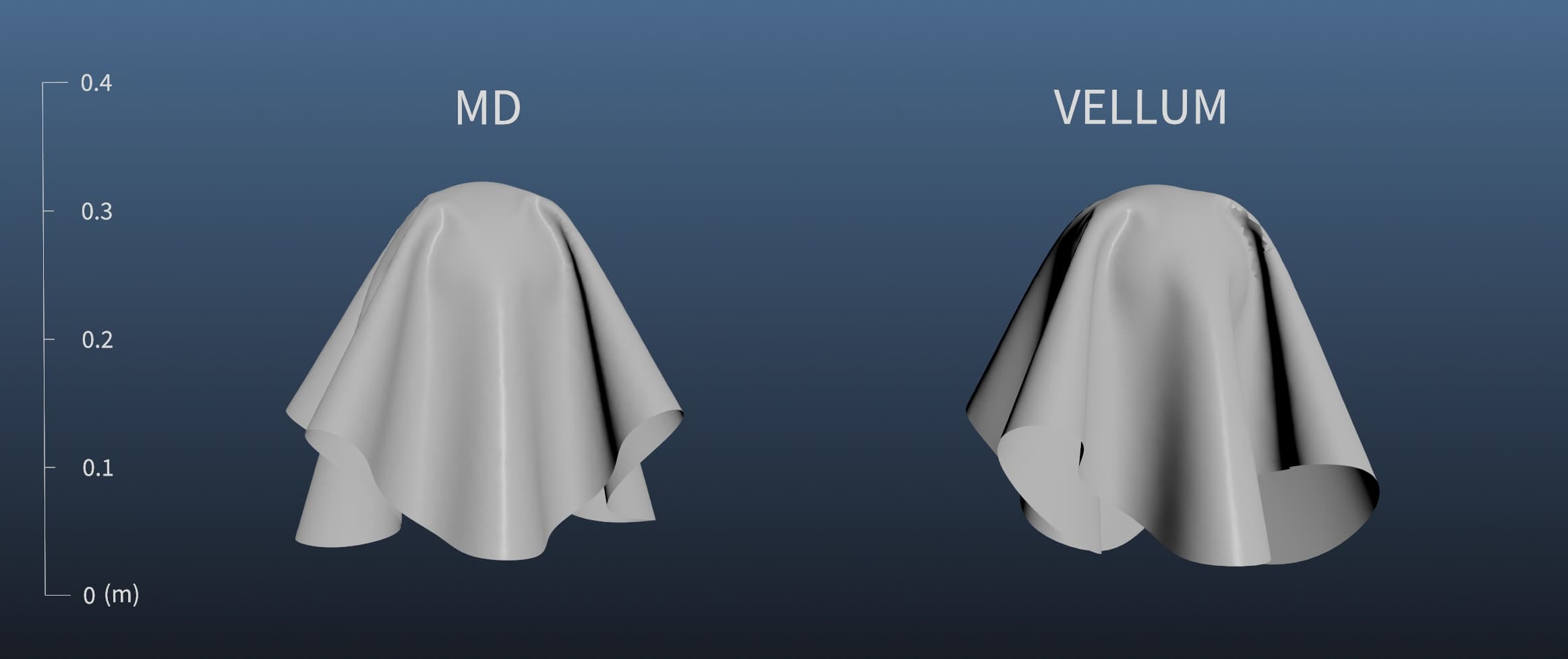

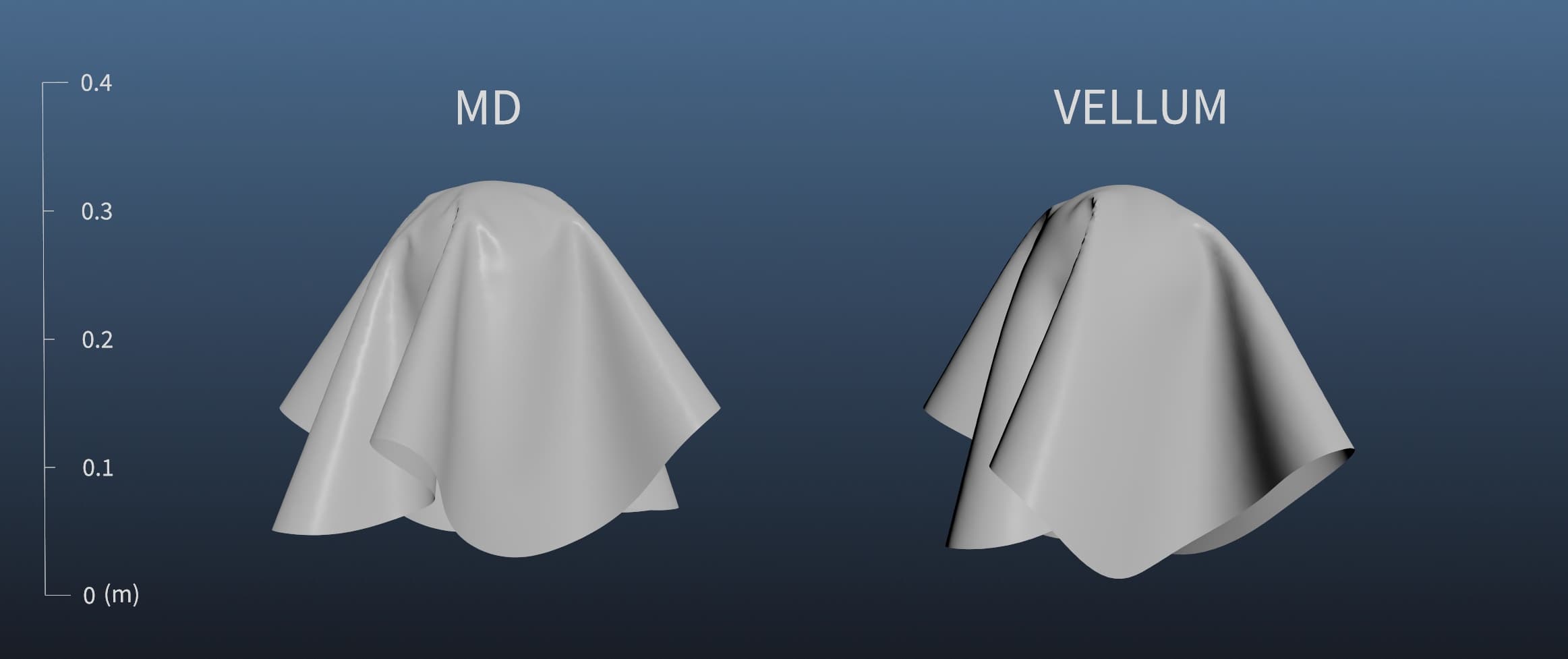

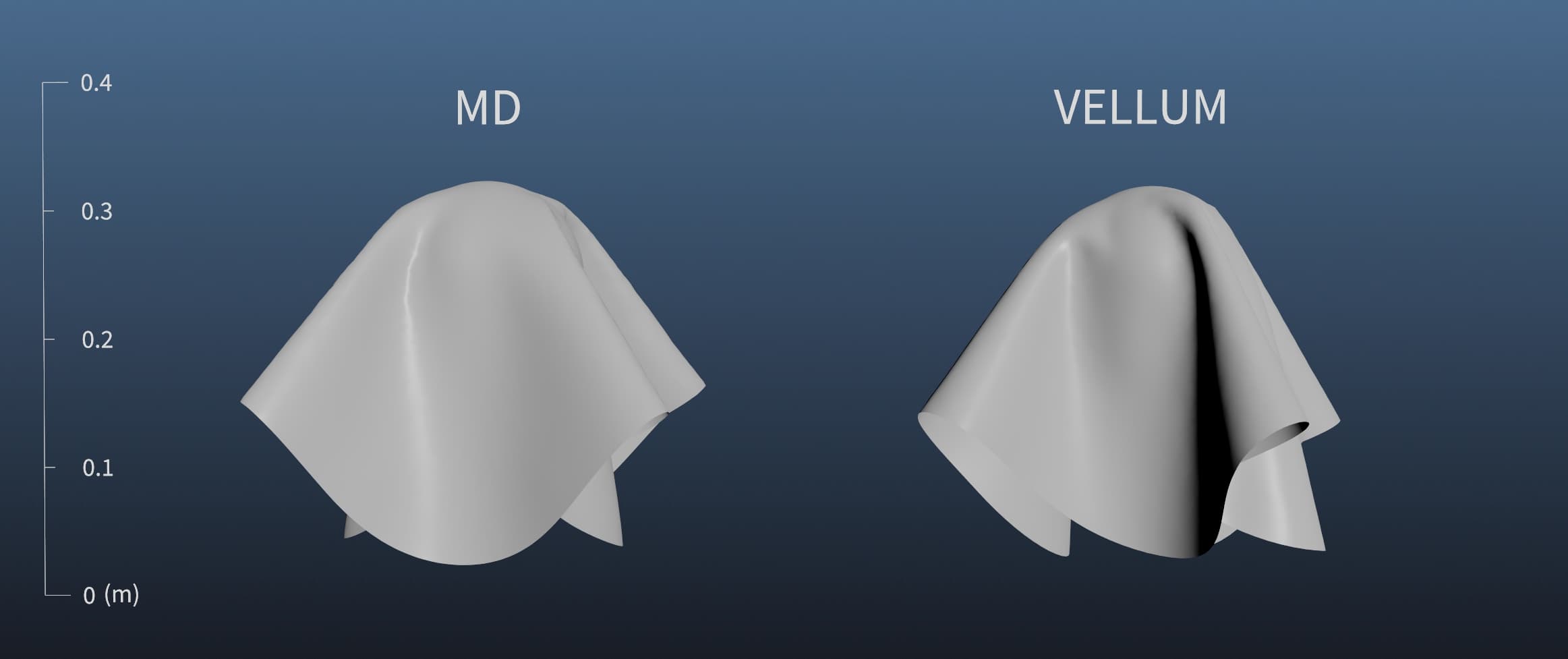

Cotton_Gabardine_md Cotton_Gabardine_hou

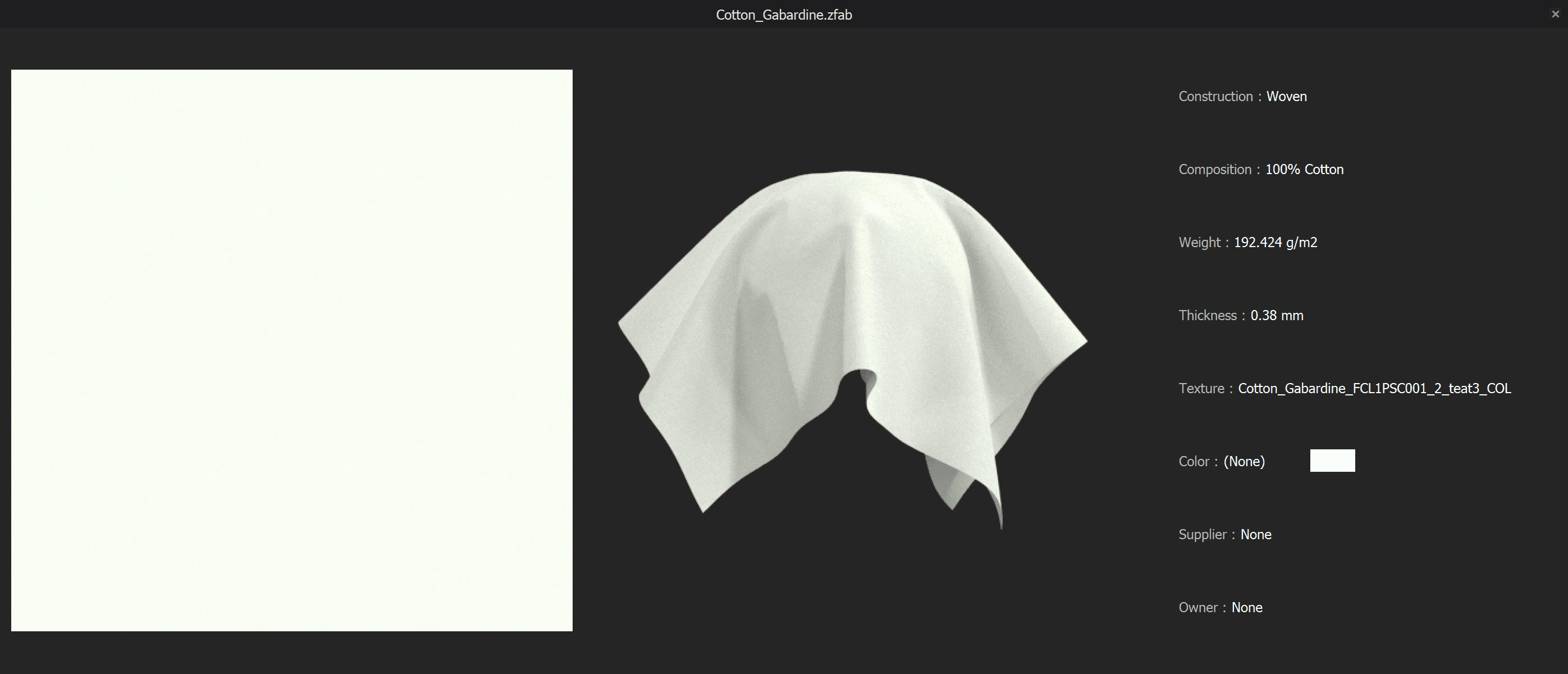

Cotton_Gabardine
Weight (=Density)192.42 (g/m2)
Thickness0.38 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)760106 (g/s2) / 714431 (g/s2)
Shear (Left / Right)308368 (g/s2) / 308368 (g/s2)
Bending (Weft / Warp)12251 (g * mm2/s2) / 30701 (g * mm2/s2)
Bending-Bias (Left / Right)18411 (g * mm2/s2) / 18411 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness2 * 0.00001

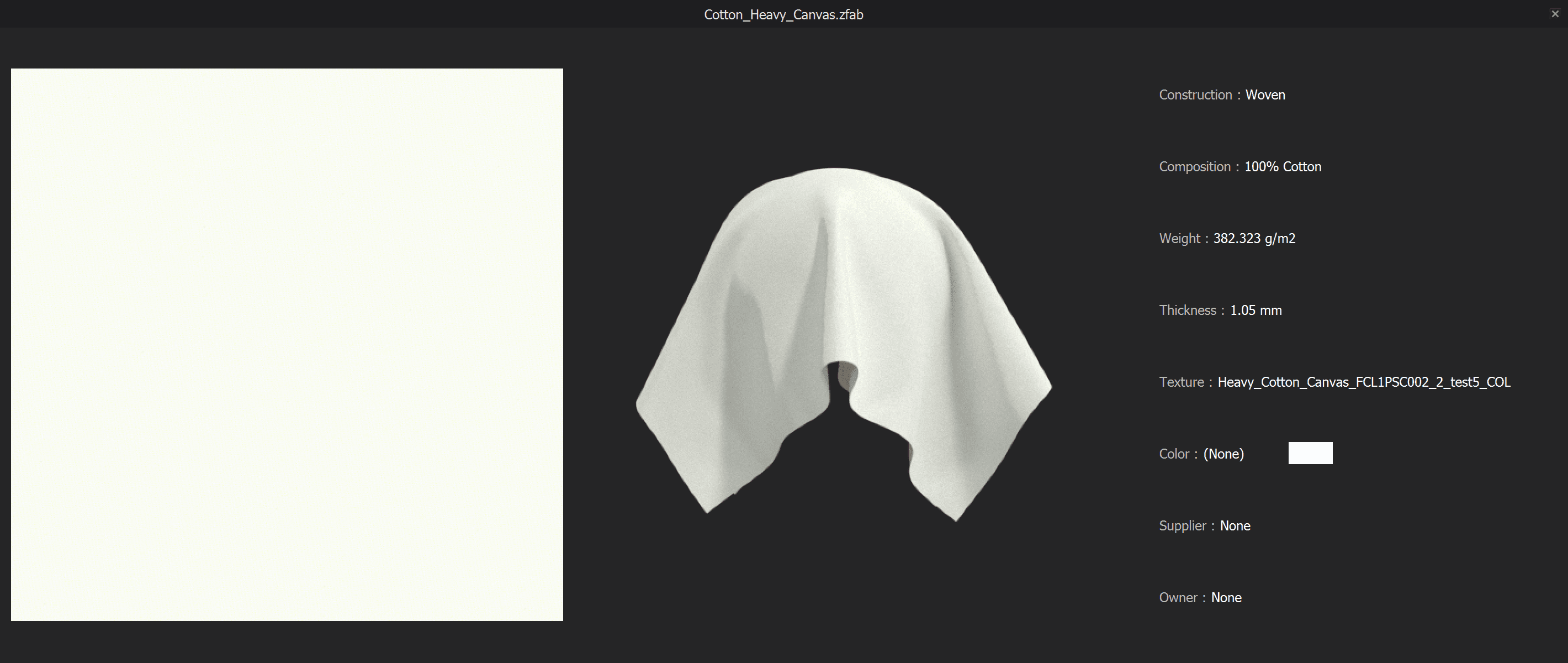

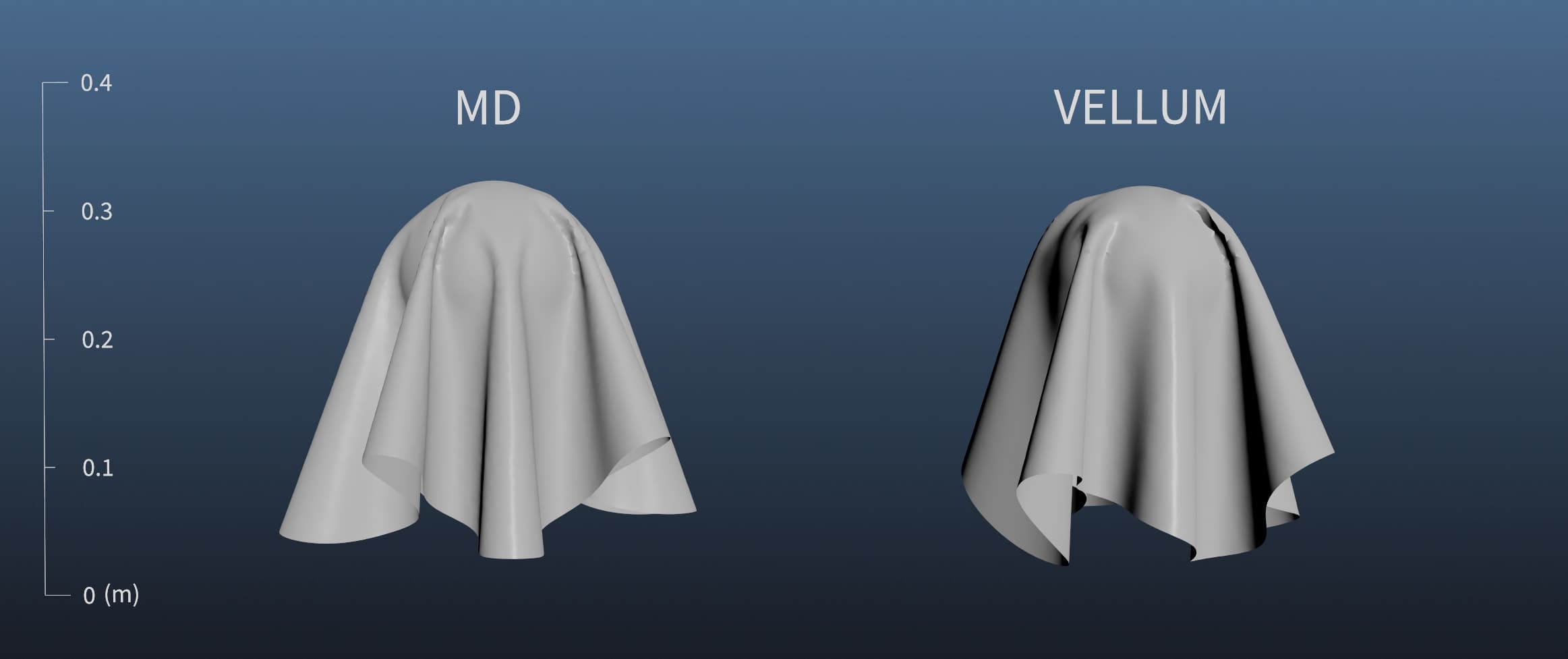

Cotton_Heavy_Canvas

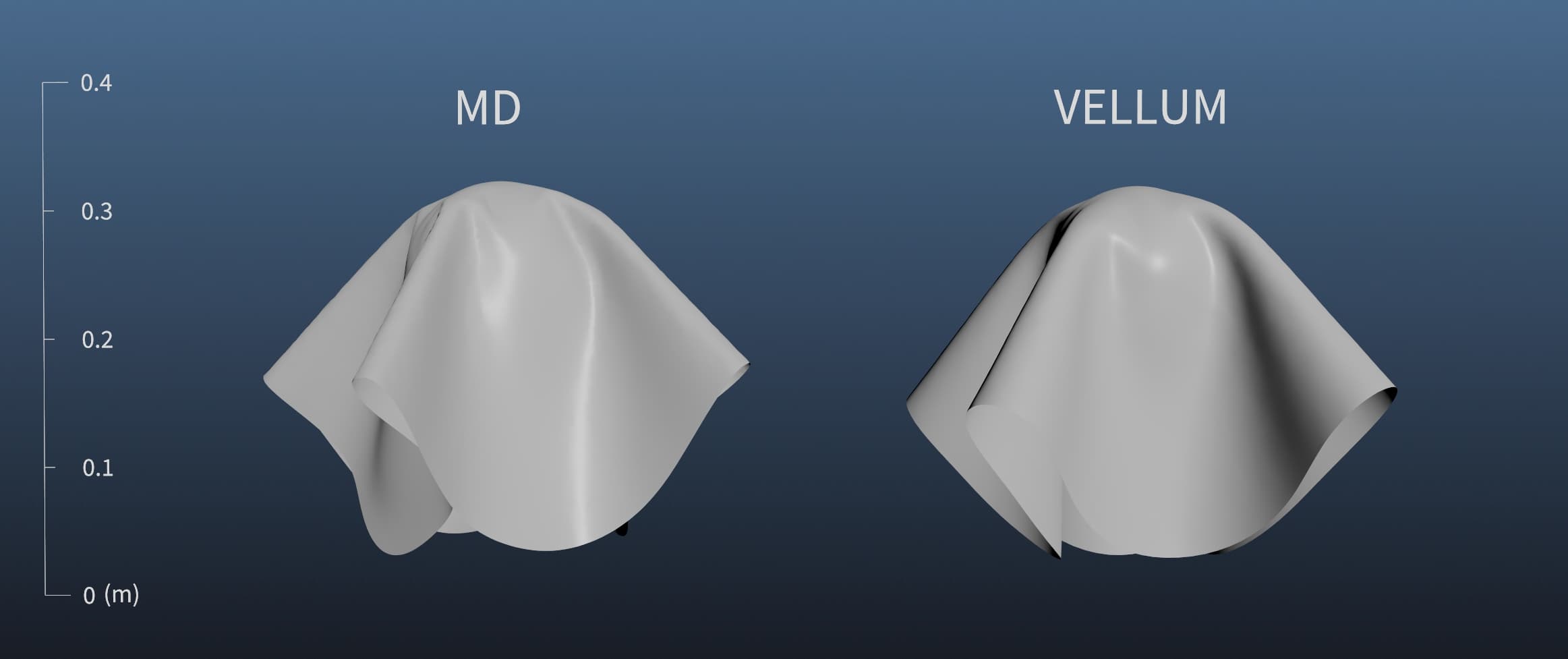

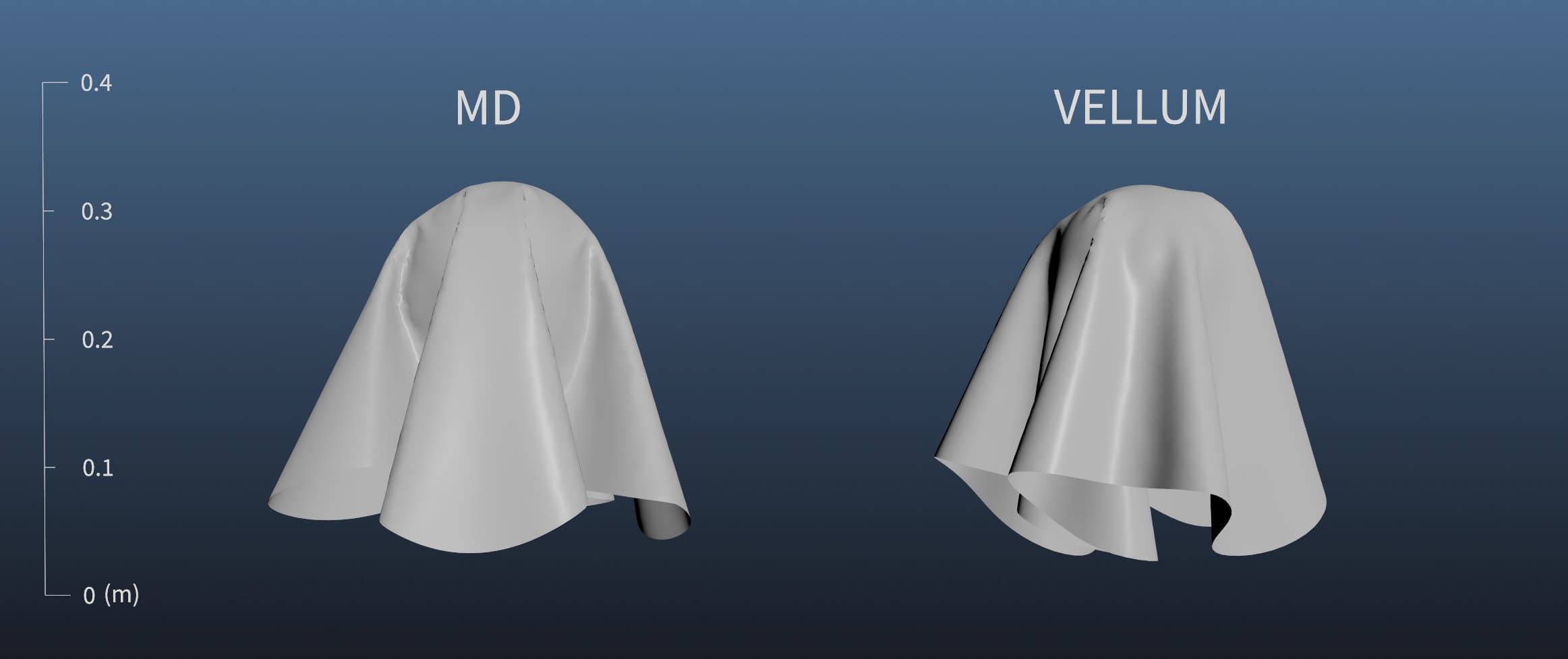

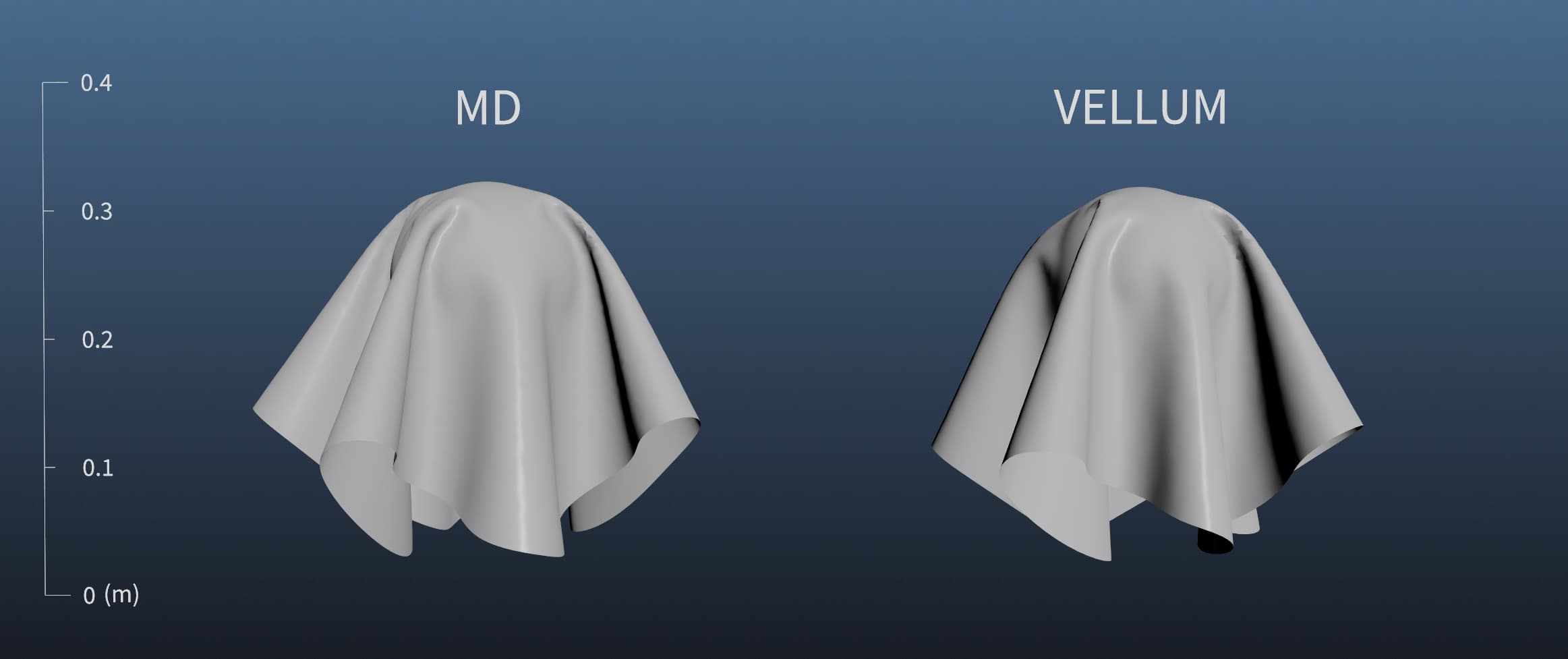

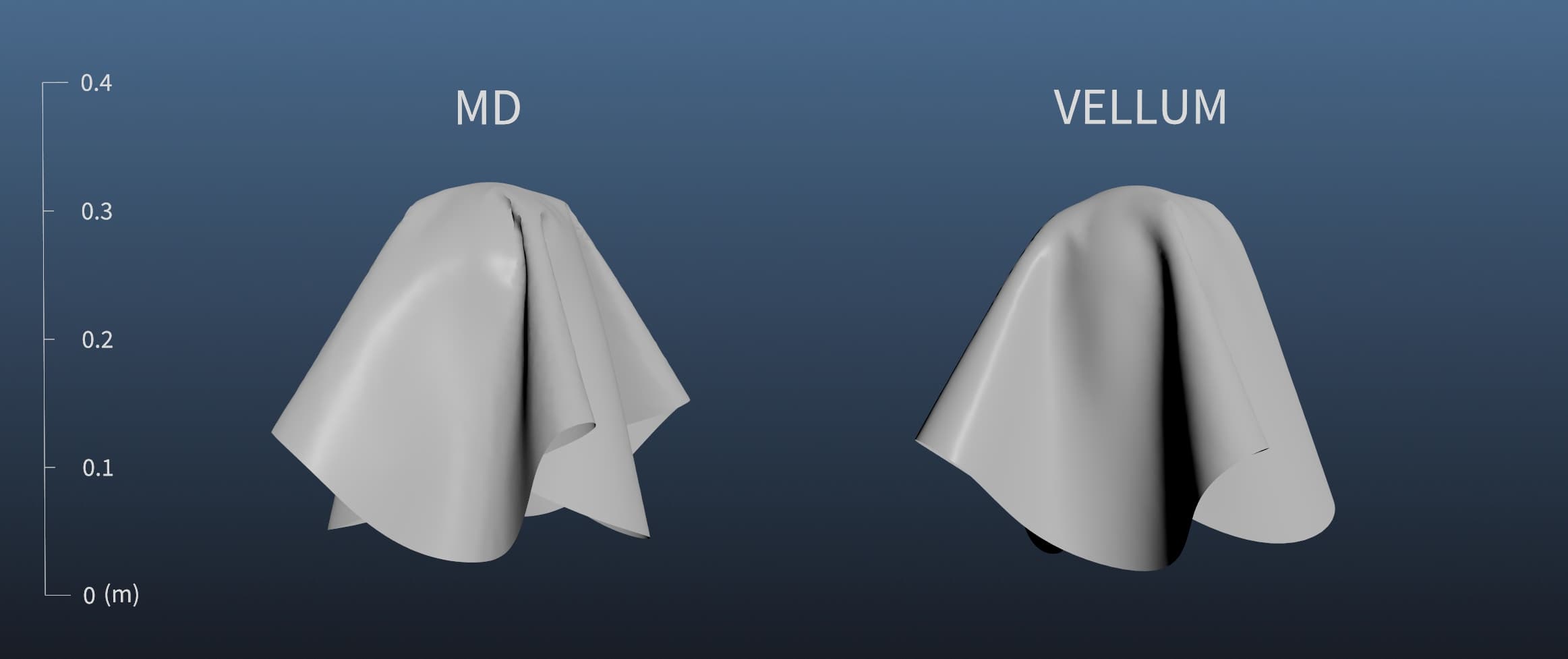

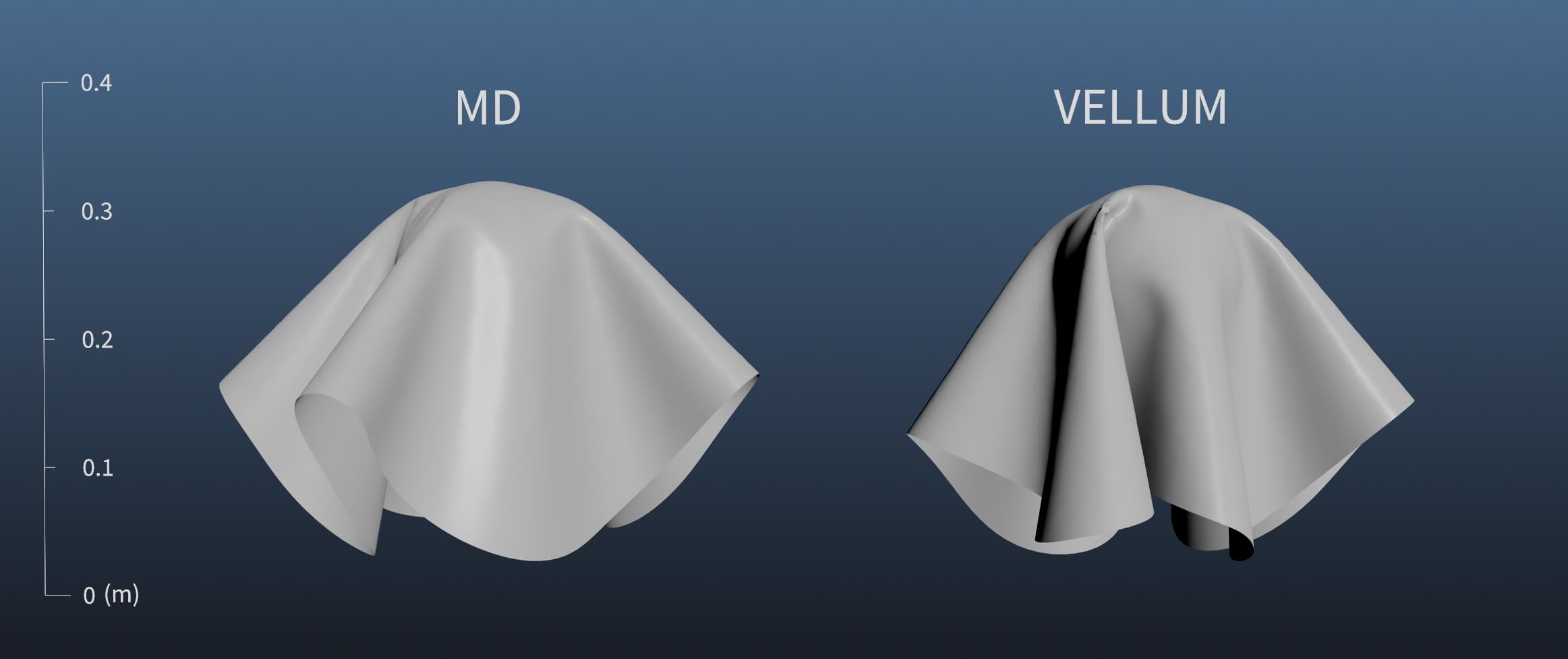

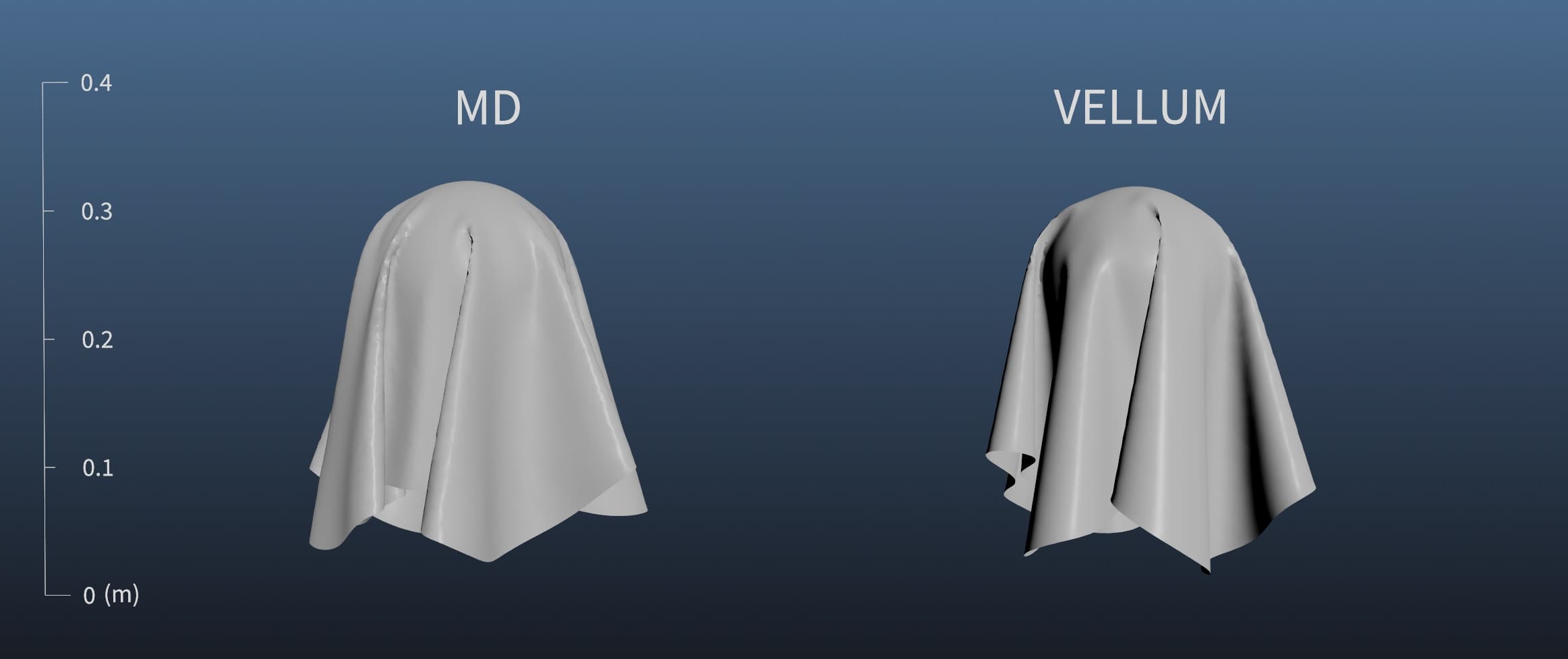

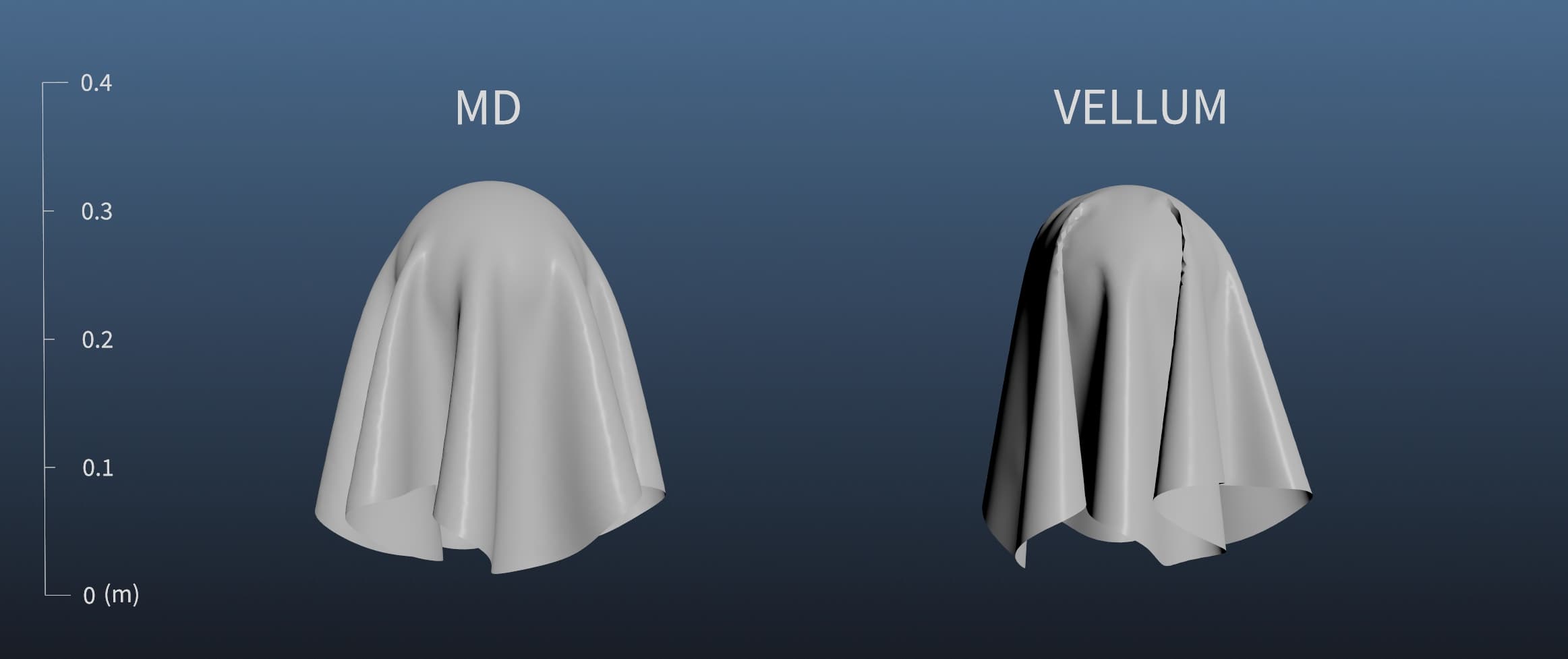

Cotton_Heavy_Canvas_md Cotton_Heavy_Canvas_hou
Cotton_Heavy_Canvas
Weight (=Density)382.32 (g/m2)
Thickness1.05 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)288875 (g/s2) / 139966 (g/s2)
Shear (Left / Right)233384 (g/s2) / 233384 (g/s2)
Bending (Weft / Warp)33751 (g * mm2/s2) / 33751 (g * mm2/s2)
Bending-Bias (Left / Right)33751 (g * mm2/s2) / 33751 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.4
Bend-Stiffness3 * 0.00001

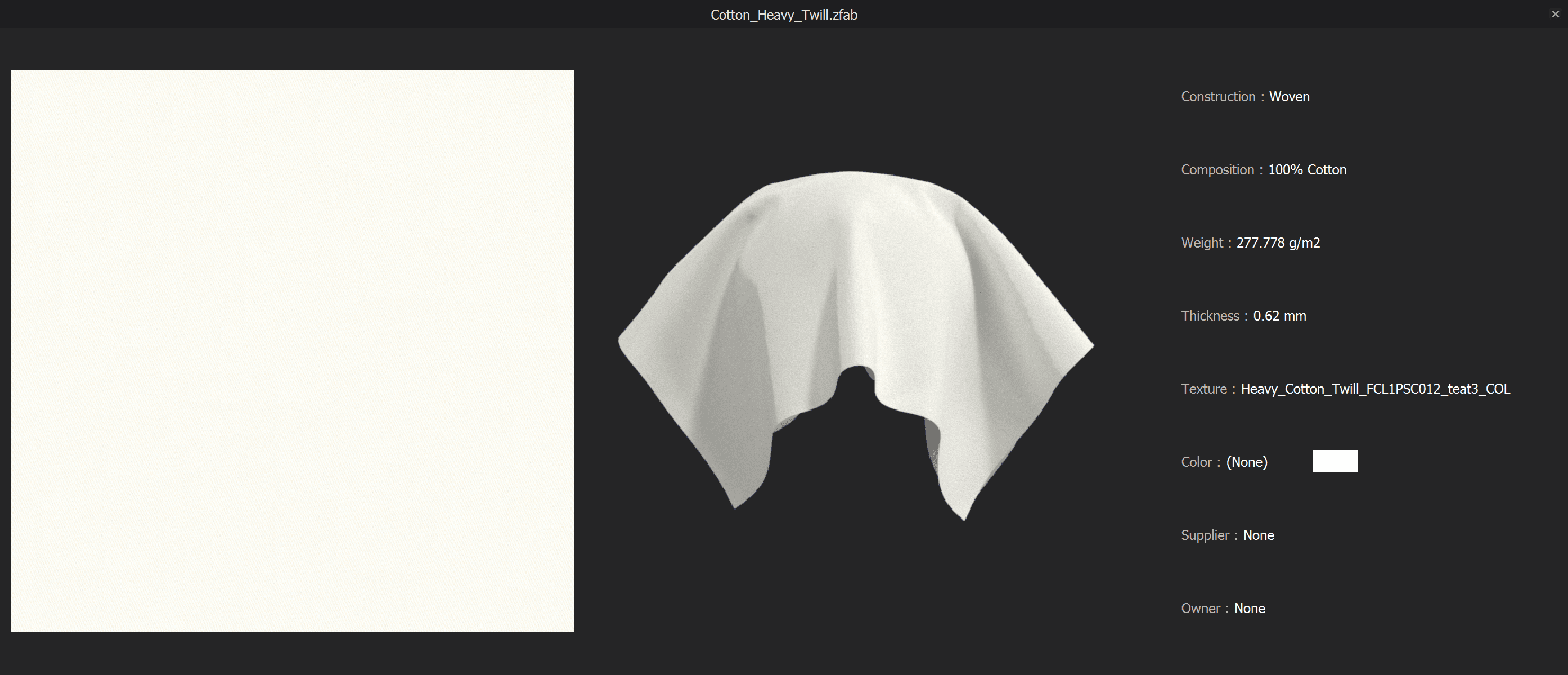

Cotton_Heavy_Twill

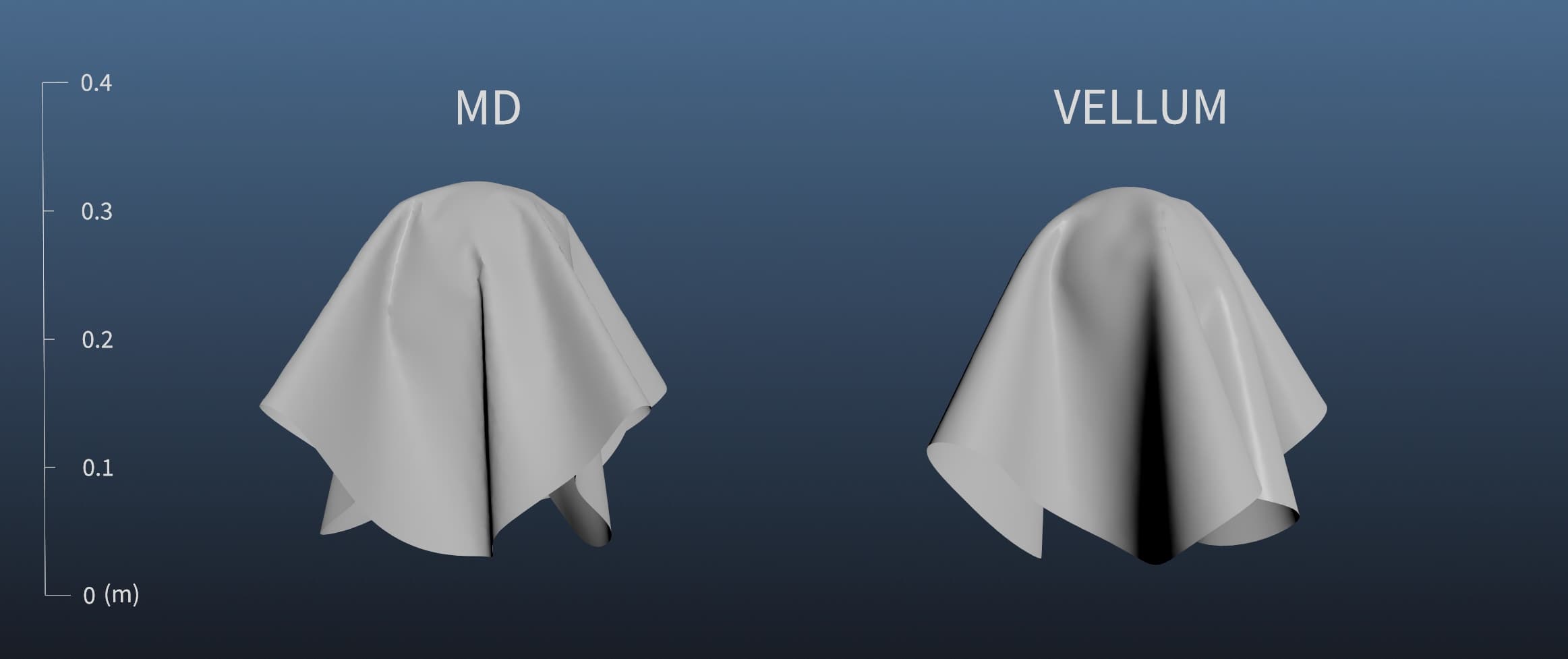

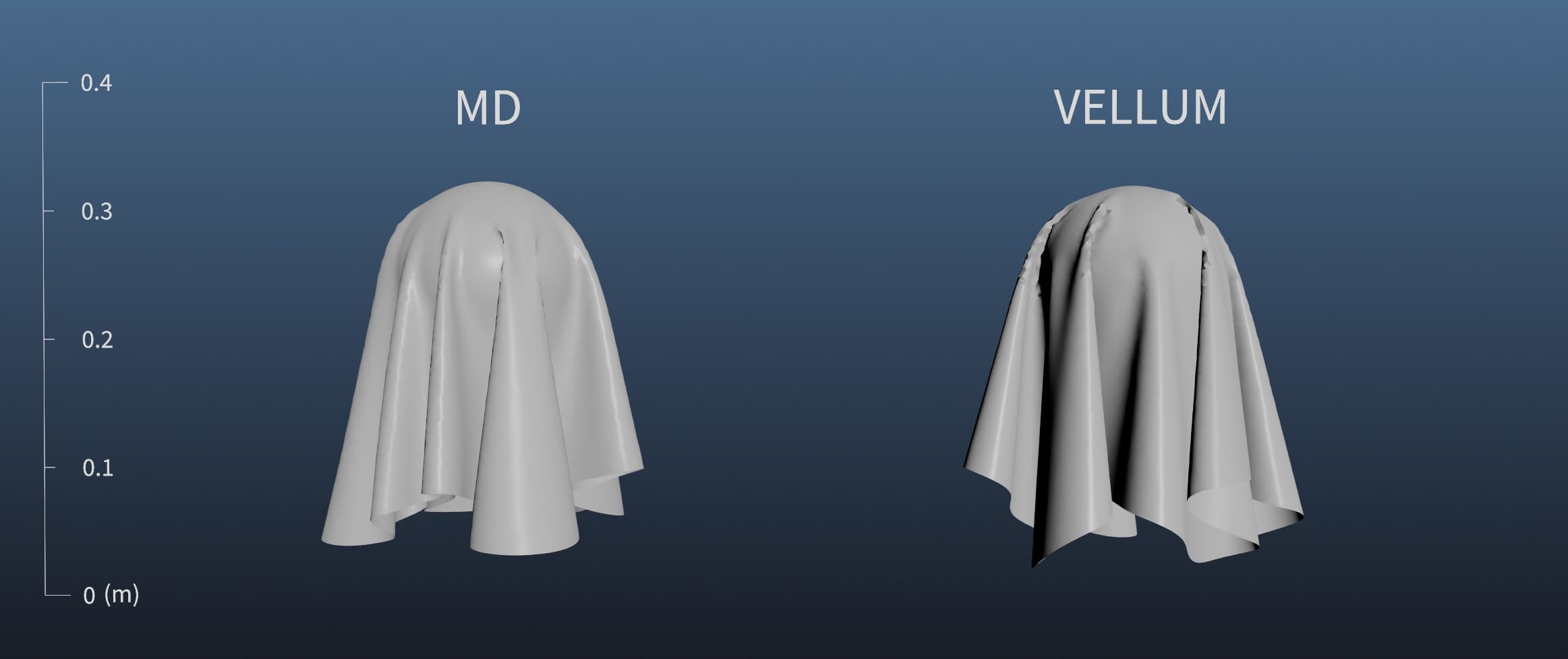

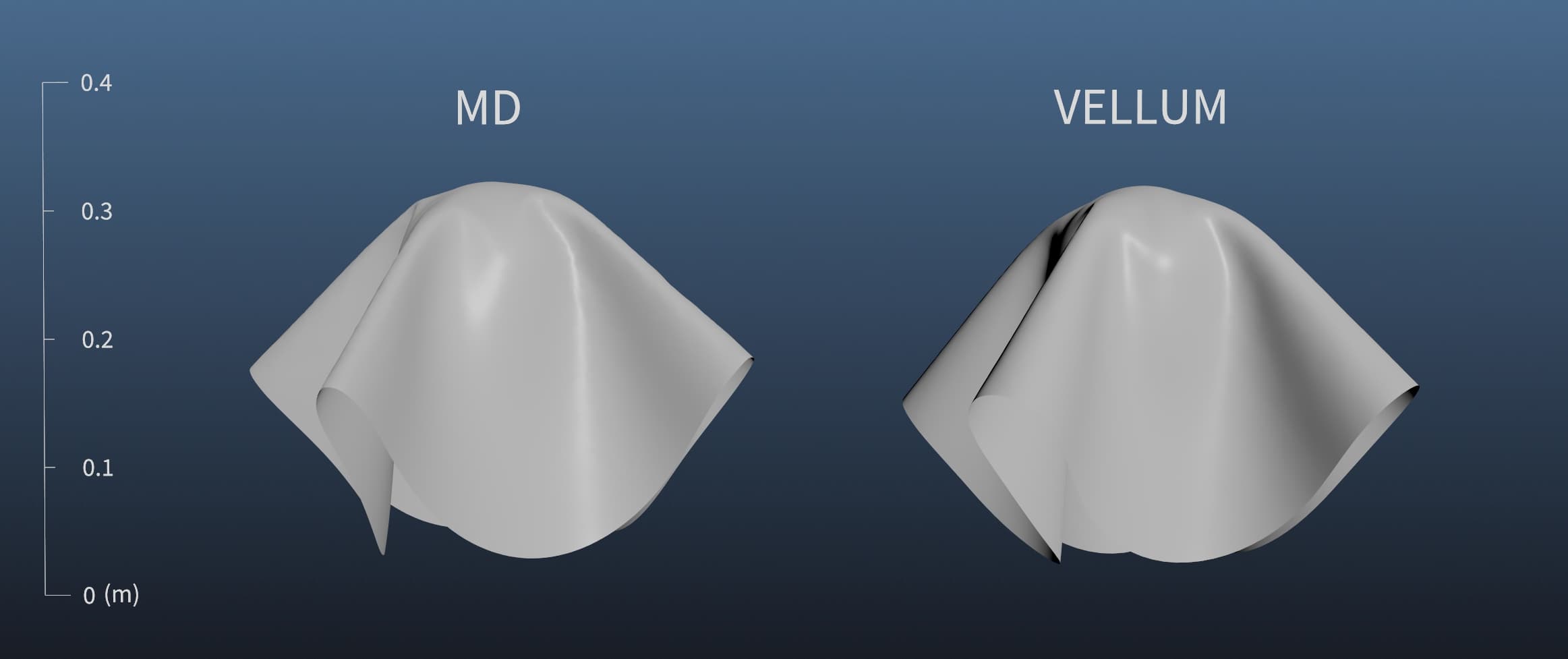

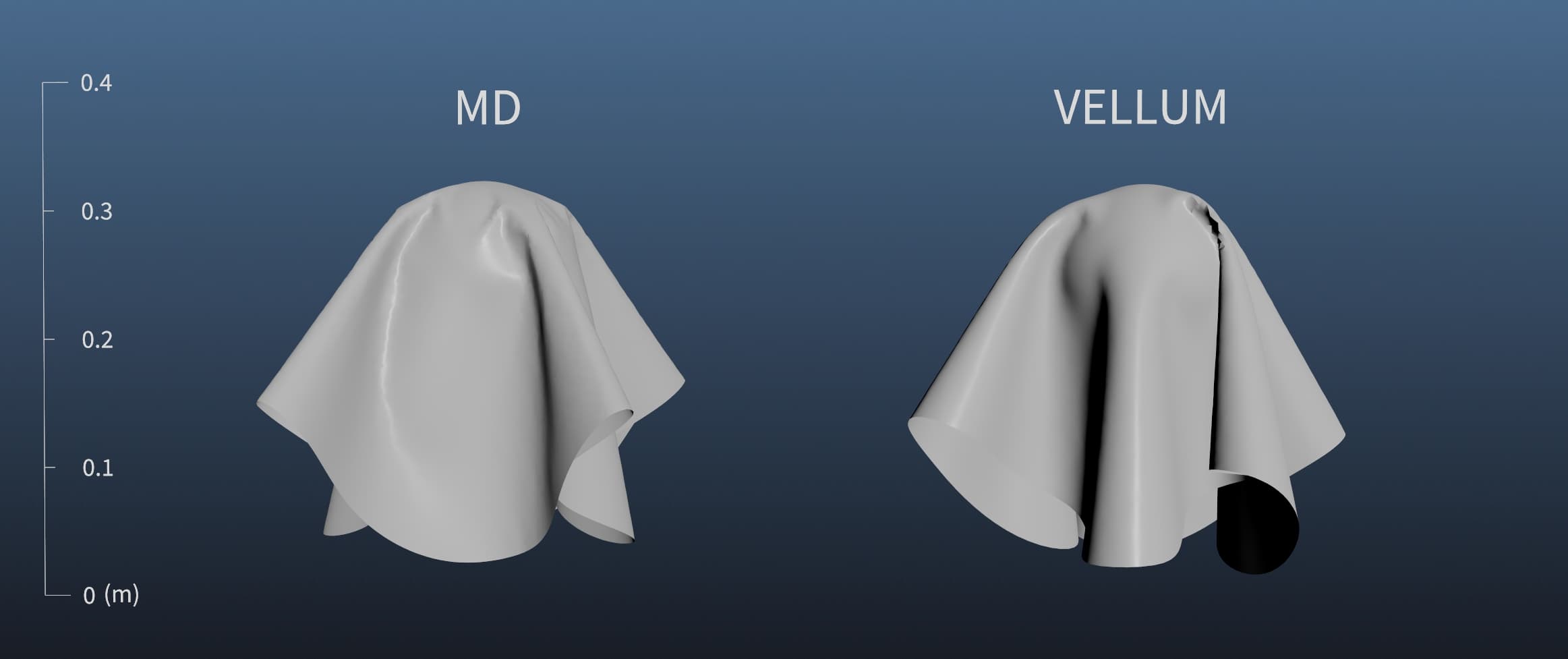

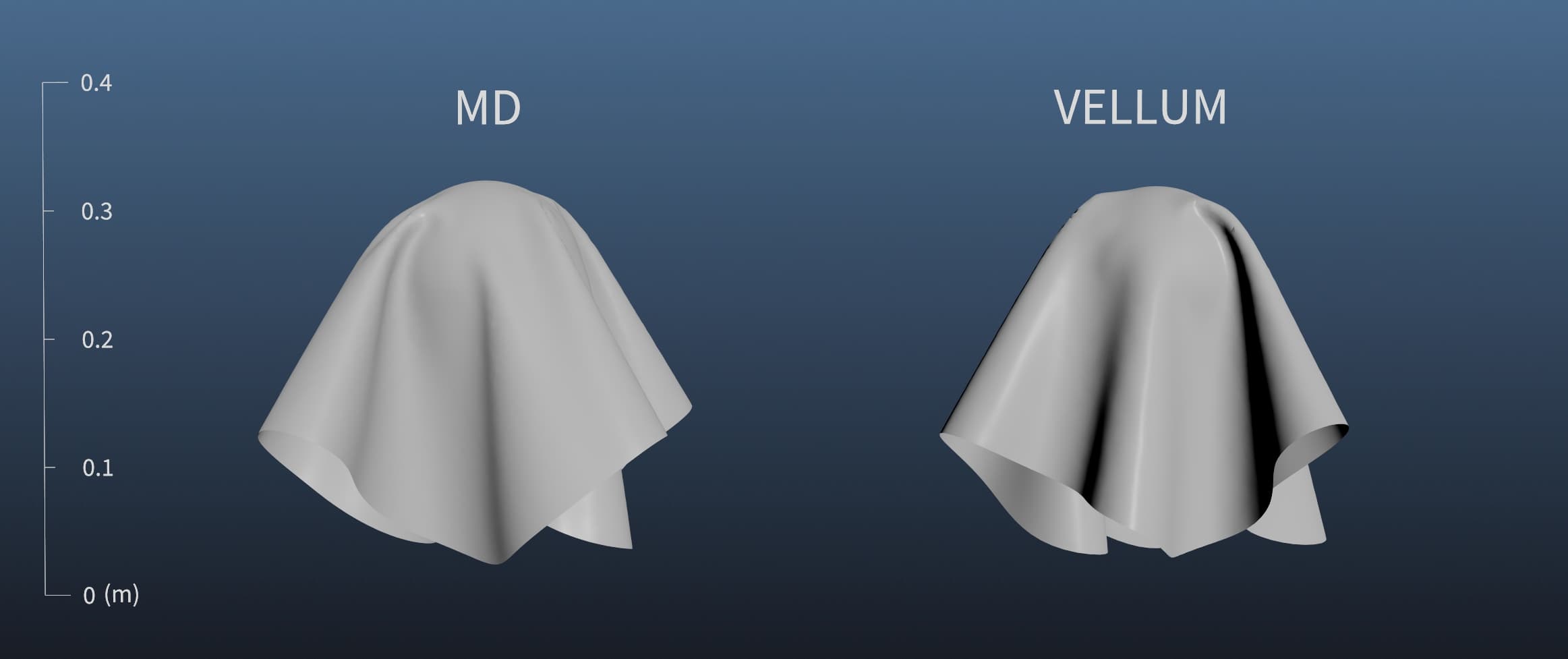

Cotton_Heavy_Twill_md Cotton_Heavy_Twill_hou
Cotton_Heavy_Twill
Weight (=Density)277.78 (g/m2)
Thickness0.62 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)629430 (g/s2) / 490655 (g/s2)
Shear (Left / Right)502461 (g/s2) / 502461 (g/s2)
Bending (Weft / Warp)18429 (g * mm2/s2) / 49084 (g * mm2/s2)
Bending-Bias (Left / Right)30677 (g * mm2/s2) / 30677 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness4 * 0.00001

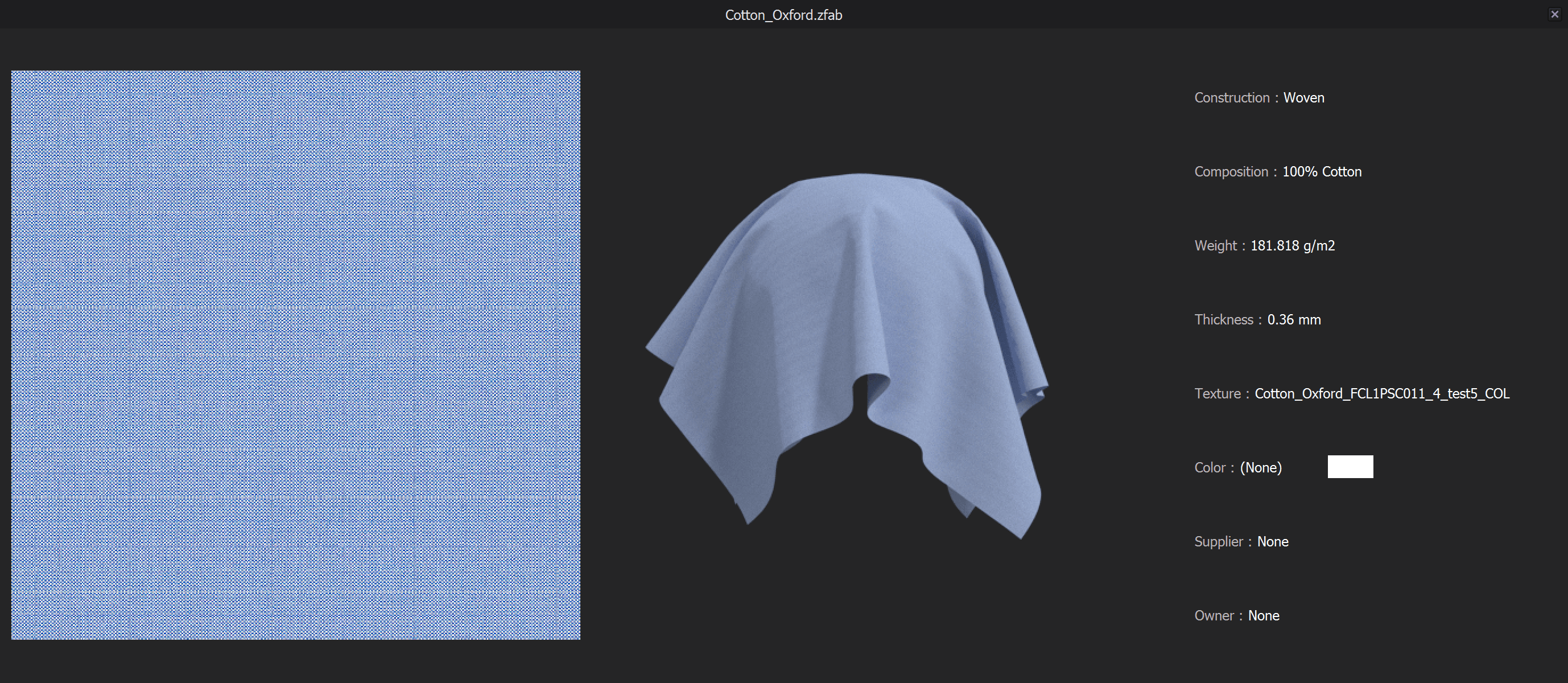

Cotton_Oxford

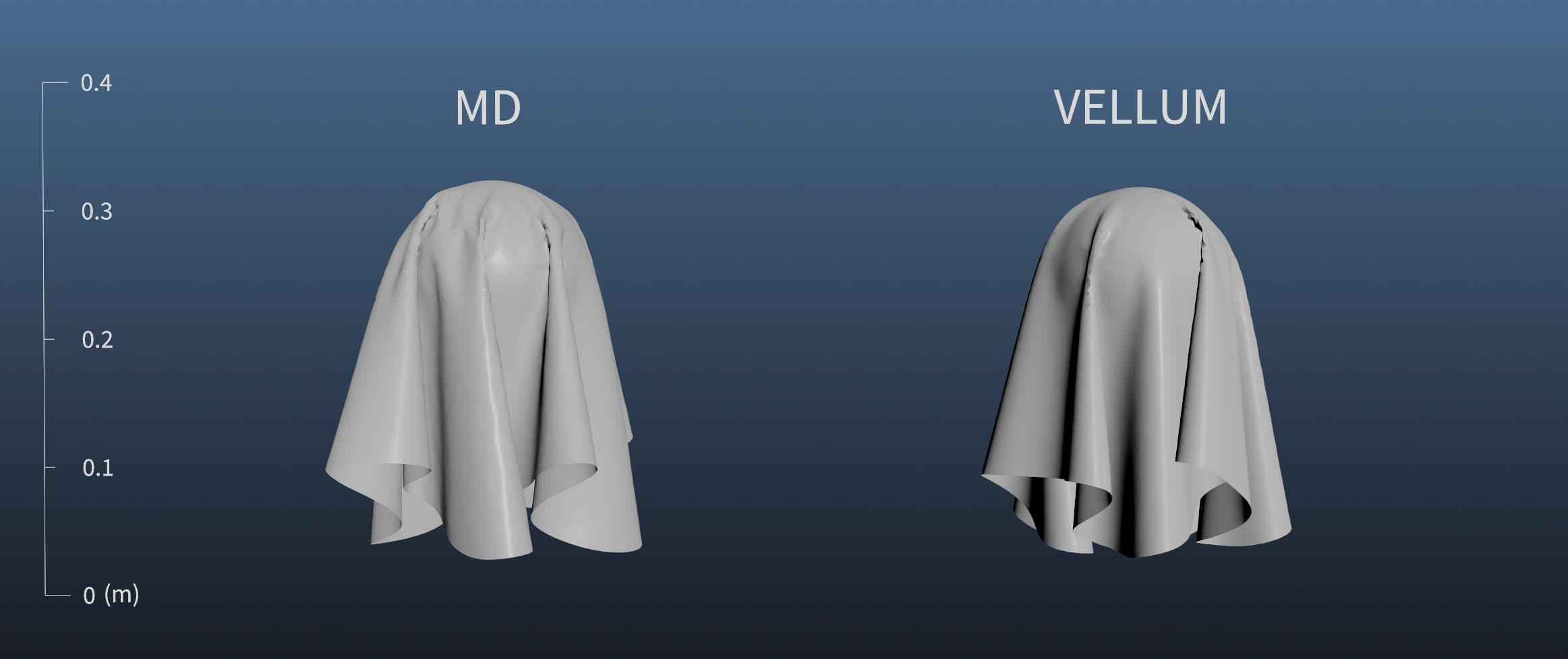

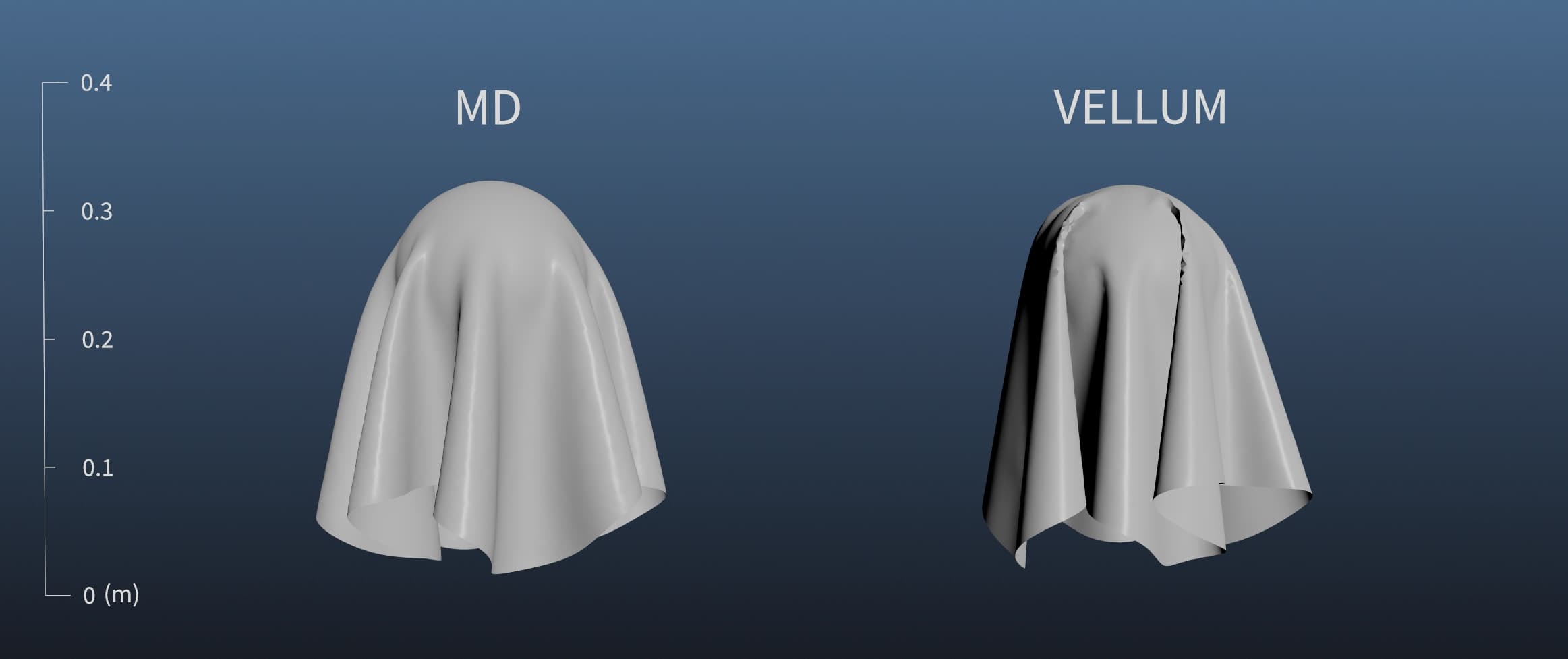

Cotton_Oxford_md Cotton_Oxford_hou
Cotton_Oxford
Weight (=Density)181.82 (g/m2)
Thickness0.36 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)594257 (g/s2) / 357475 (g/s2)
Shear (Left / Right)95987 (g/s2) / 95987 (g/s2)
Bending (Weft / Warp)14576 (g * mm2/s2) / 9584 (g * mm2/s2)
Bending-Bias (Left / Right)11891 (g * mm2/s2) / 11891 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness2 * 0.00001

Cotton_Plush

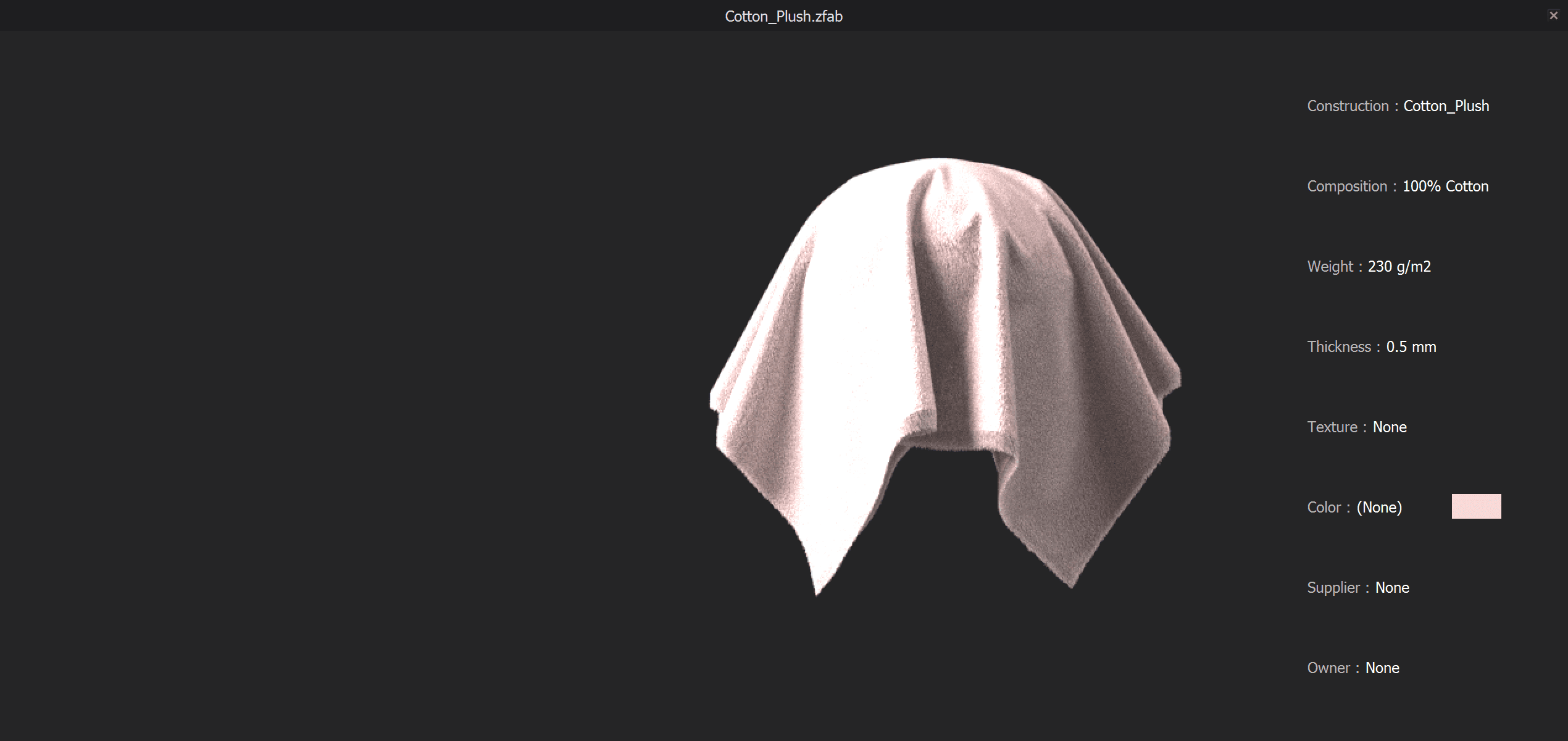

Cotton_Plush_md Cotton_Plush_hou
Cotton_Plush
Weight (=Density)230.00 (g/m2)
Thickness0.50 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)330000 (g/s2) / 700000 (g/s2)
Shear (Left / Right)460000 (g/s2) / 460000 (g/s2)
Bending (Weft / Warp)4398 (g * mm2/s2) / 3770 (g * mm2/s2)
Bending-Bias (Left / Right)4084 (g * mm2/s2) / 4084 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness4 * 0.000001

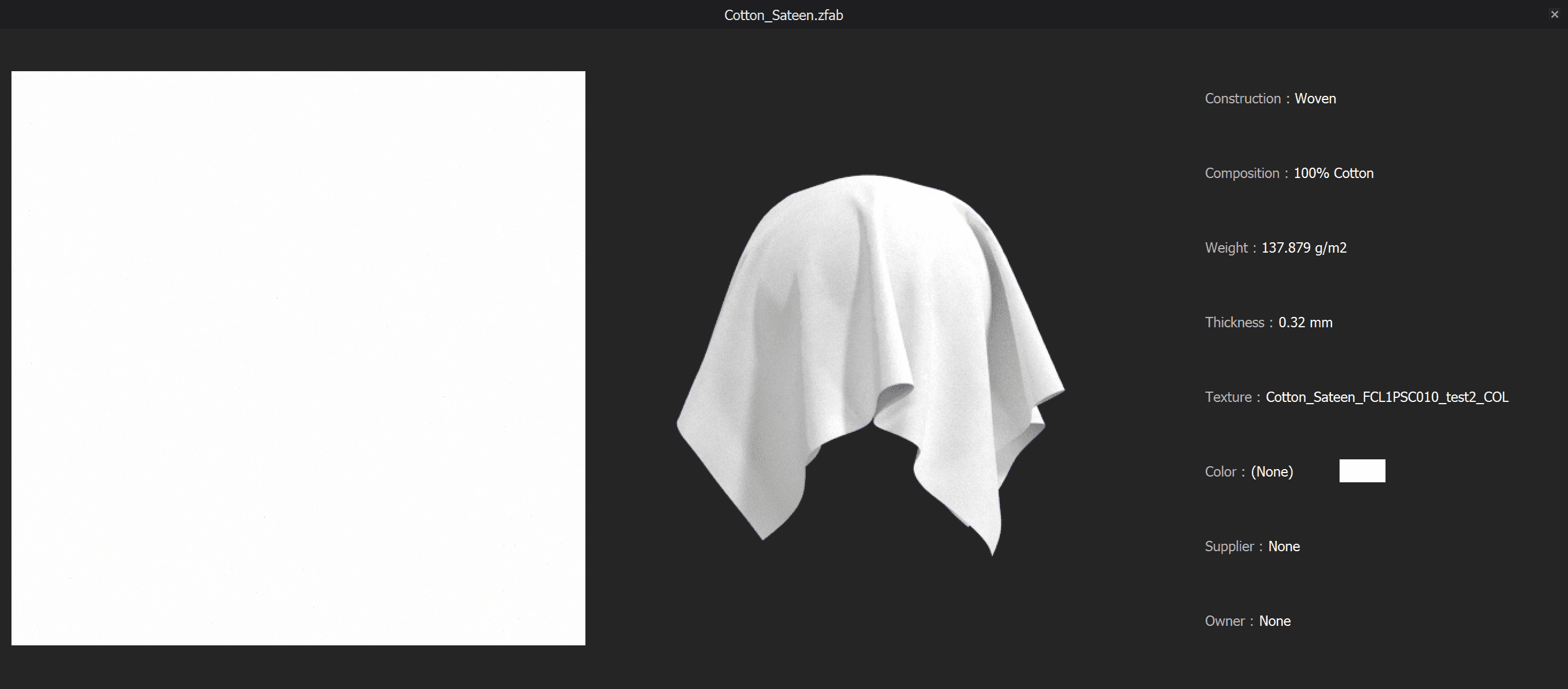

Cotton_Sateen

Cotton_Sateen_md Cotton_Sateen_hou
Cotton_Sateen
Weight (=Density)137.88 (g/m2)
Thickness0.32 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)194125 (g/s2) / 321432 (g/s2)
Shear (Left / Right)64325 (g/s2) / 64325 (g/s2)
Bending (Weft / Warp)2106 (g * mm2/s2) / 12269 (g * mm2/s2)
Bending-Bias (Left / Right)5755 (g * mm2/s2) / 5755 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness3 * 0.000001

Cotton_Stretch_Sateen

Cotton_Stretch_Sateen_md Cotton_Stretch_Sateen_hou
Cotton_Stretch_Sateen
Weight (=Density)229.80 (g/m2)
Thickness0.52 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)459253 (g/s2) / 514214 (g/s2)
Shear (Left / Right)274146 (g/s2) / 274146 (g/s2)
Bending (Weft / Warp)6091 (g * mm2/s2) / 49084 (g * mm2/s2)
Bending-Bias (Left / Right)19939 (g * mm2/s2) / 19939 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness8 * 0.000001

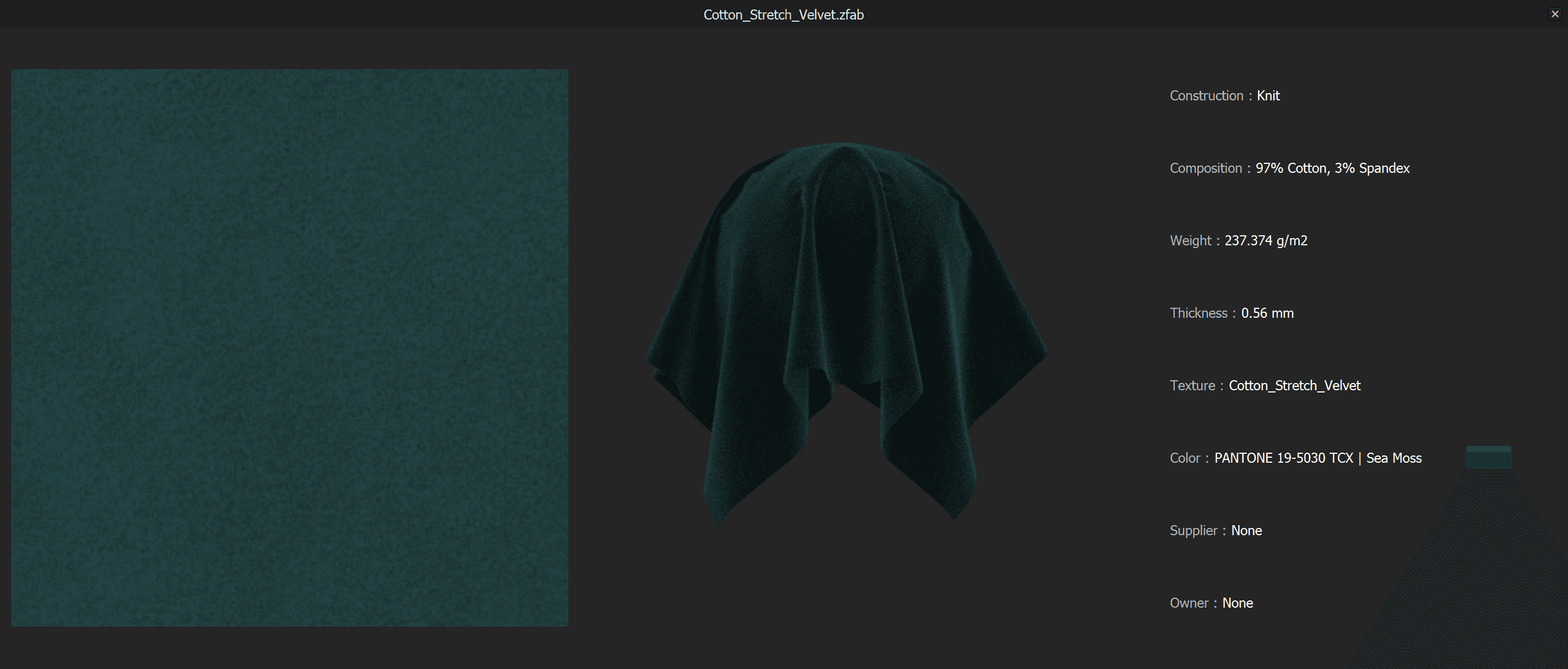

Cotton_Stretch_Velvet

Cotton_Stretch_Velvet_md Cotton_Stretch_Velvet_hou
Cotton_Stretch_Velvet
Weight (=Density)237.37 (g/m2)
Thickness0.56 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)16304 (g/s2) / 40872 (g/s2)
Shear (Left / Right)17155 (g/s2) / 17155 (g/s2)
Bending (Weft / Warp)446 (g * mm2/s2) / 656 (g * mm2/s2)
Bending-Bias (Left / Right)524 (g * mm2/s2) / 524 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness6 * 0.0000001

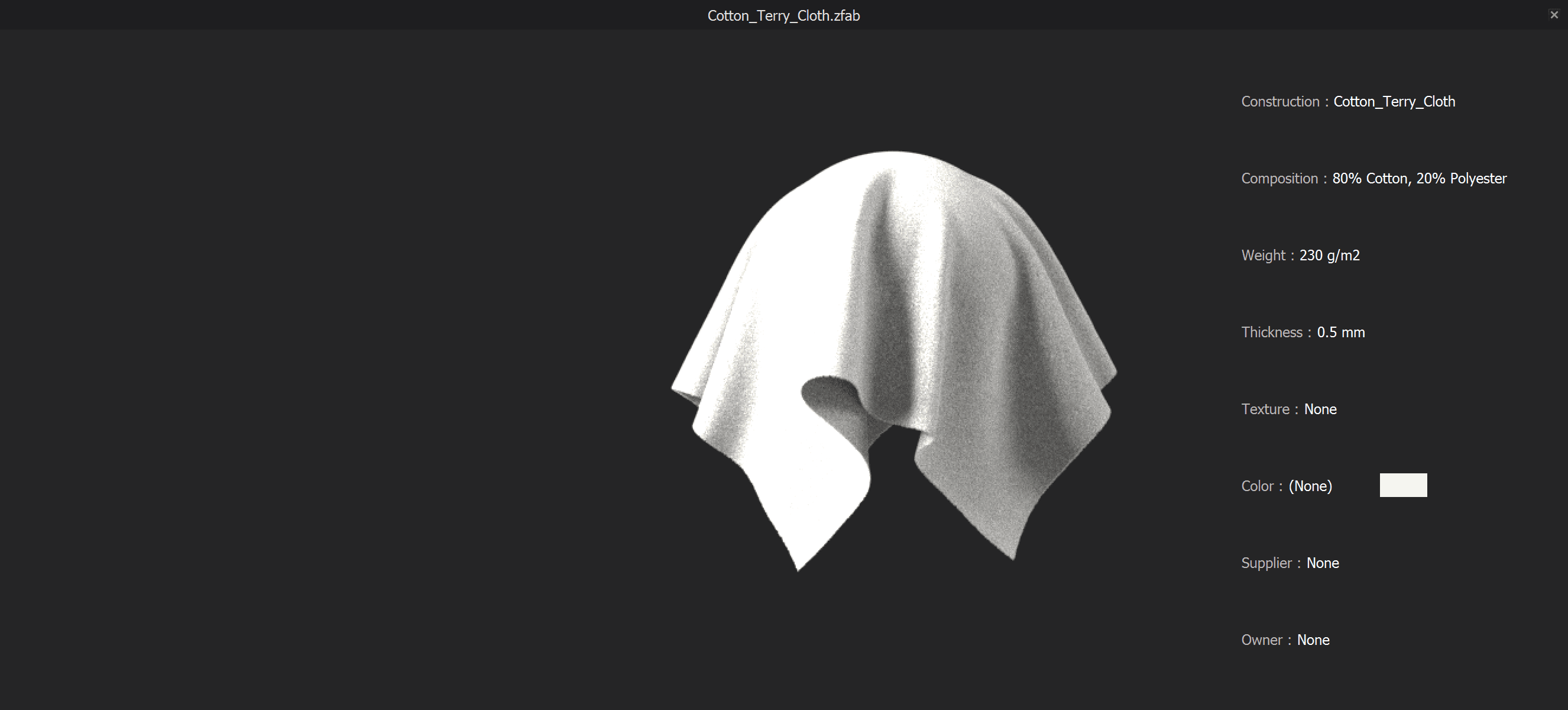

Cotton_Terry_Cloth

Cotton_Terry_Cloth_md Cotton_Terry_Cloth_hou
Cotton_Terry_Cloth
Weight (=Density)230.00 (g/m2)
Thickness0.50 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)45000 (g/s2) / 35000 (g/s2)
Shear (Left / Right)30000 (g/s2) / 30000 (g/s2)
Bending (Weft / Warp)8796 (g * mm2/s2) / 5969 (g * mm2/s2)
Bending-Bias (Left / Right)6597 (g * mm2/s2) / 6597 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness9 * 0.000001

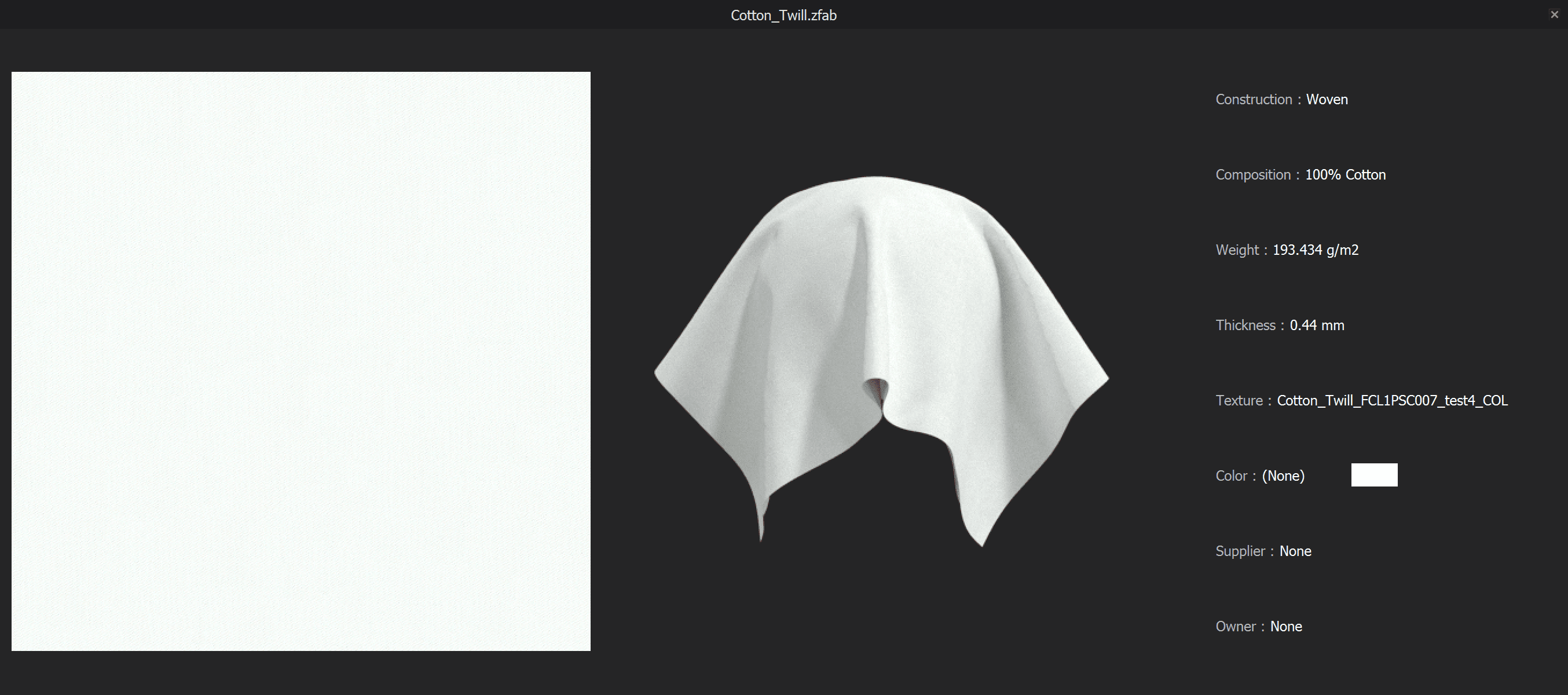

Cotton_Twill

Cotton_Twill_md Cotton_Twill_hou
Cotton_Twill
Weight (=Density)193.43 (g/m2)
Thickness0.44 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)481162 (g/s2) / 482626 (g/s2)
Shear (Left / Right)377935 (g/s2) / 377935 (g/s2)
Bending (Weft / Warp)6133 (g * mm2/s2) / 24541 (g * mm2/s2)
Bending-Bias (Left / Right)14186 (g * mm2/s2) / 14186 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness1 * 0.0001

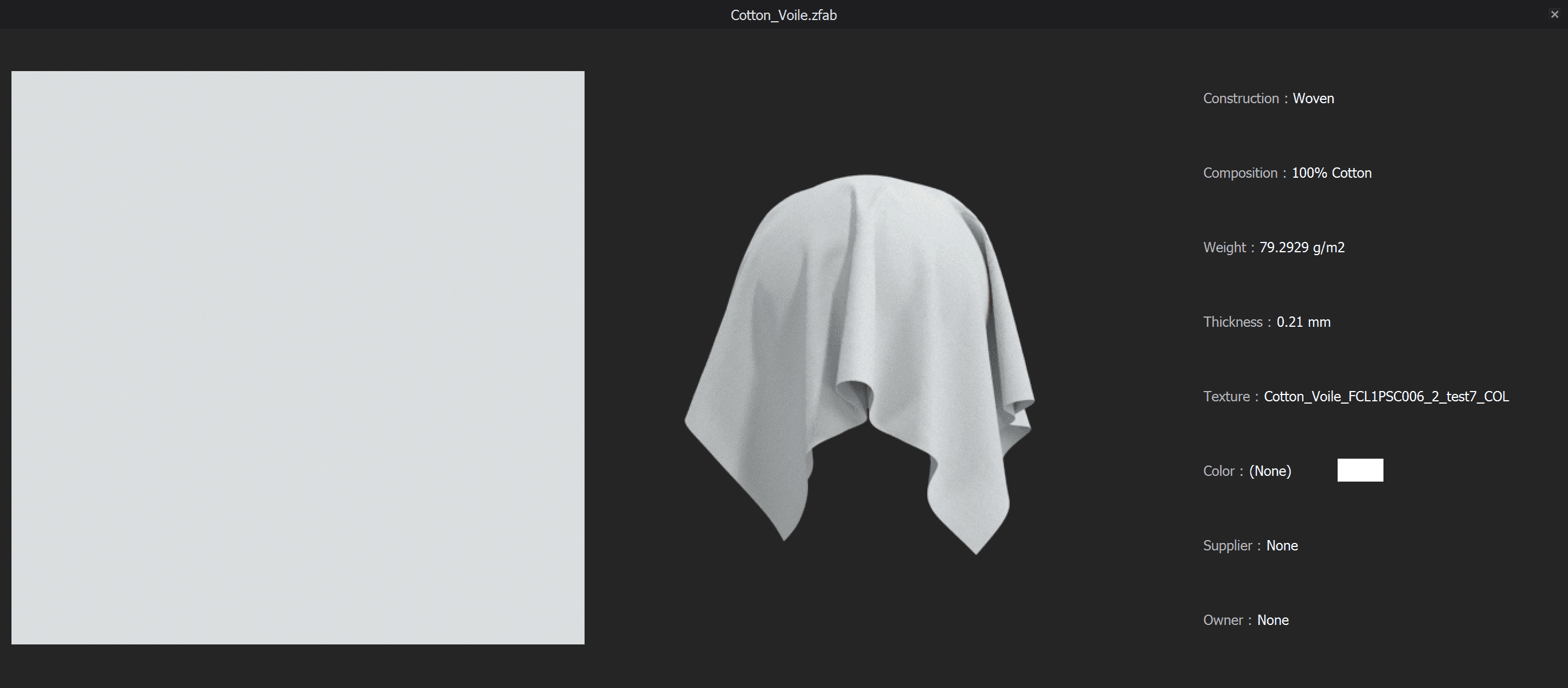

Cotton_Voile

Cotton_Voile_md Cotton_Voile_hou
Cotton_Voile
Weight (=Density)79.29 (g/m2)
Thickness0.21 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)189098 (g/s2) / 323740 (g/s2)
Shear (Left / Right)42215 (g/s2) / 42215 (g/s2)
Bending (Weft / Warp)2256 (g * mm2/s2) / 5372 (g * mm2/s2)
Bending-Bias (Left / Right)3065 (g * mm2/s2) / 3065 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness3 * 0.000001

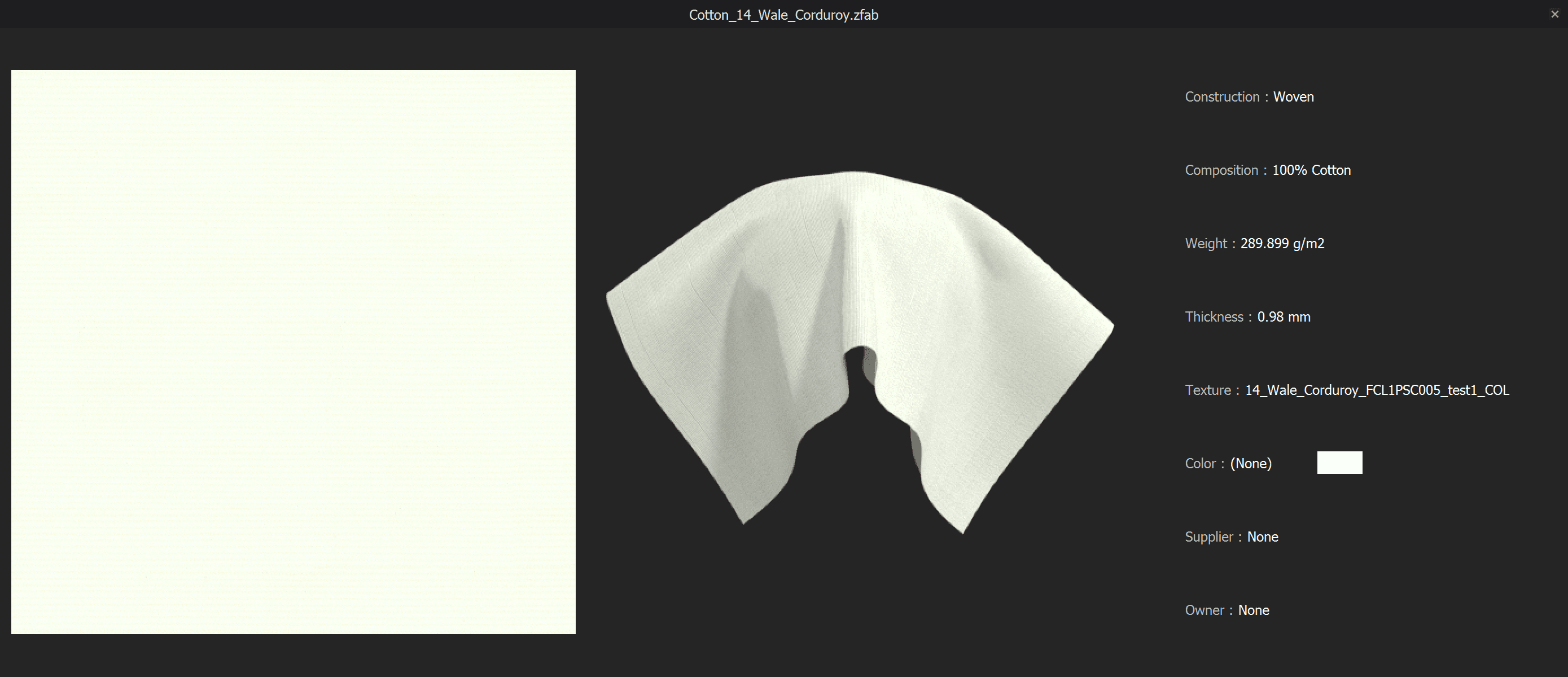

Cotton_14_Wale_Corduroy

Cotton_14_Wale_Corduroy_md Cotton_14_Wale_Corduroy_hou
Cotton_14_Wale_Corduroy
Weight (=Density)289.90 (g/m2)
Thickness0.98 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)520010 (g/s2) / 271017 (g/s2)
Shear (Left / Right)226453 (g/s2) / 226453 (g/s2)
Bending (Weft / Warp)21383 (g * mm2/s2) / 49084 (g * mm2/s2)
Bending-Bias (Left / Right)36819 (g * mm2/s2) / 36819 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness2 * 0.00001

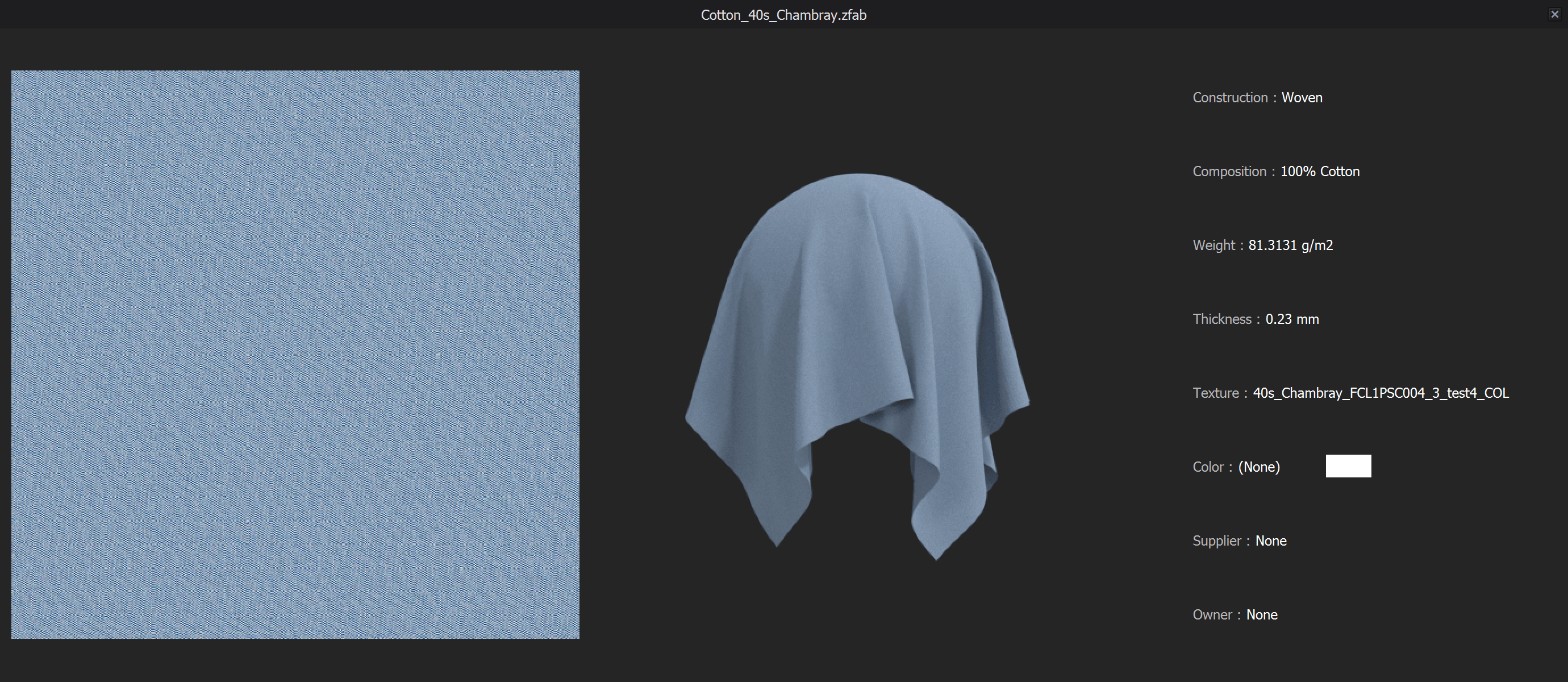

Cotton_40s_Chambray

Cotton_40s_Chambray_md Cotton_40s_Chambray_hou
Cotton_40s_Chambray
Weight (=Density)81.31 (g/m2)
Thickness0.23 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)254557 (g/s2) / 159138 (g/s2)
Shear (Left / Right)12921 (g/s2) / 12921 (g/s2)
Bending (Weft / Warp)1962 (g * mm2/s2) / 3047 (g * mm2/s2)
Bending-Bias (Left / Right)2496 (g * mm2/s2) / 2496 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness2 * 0.000001

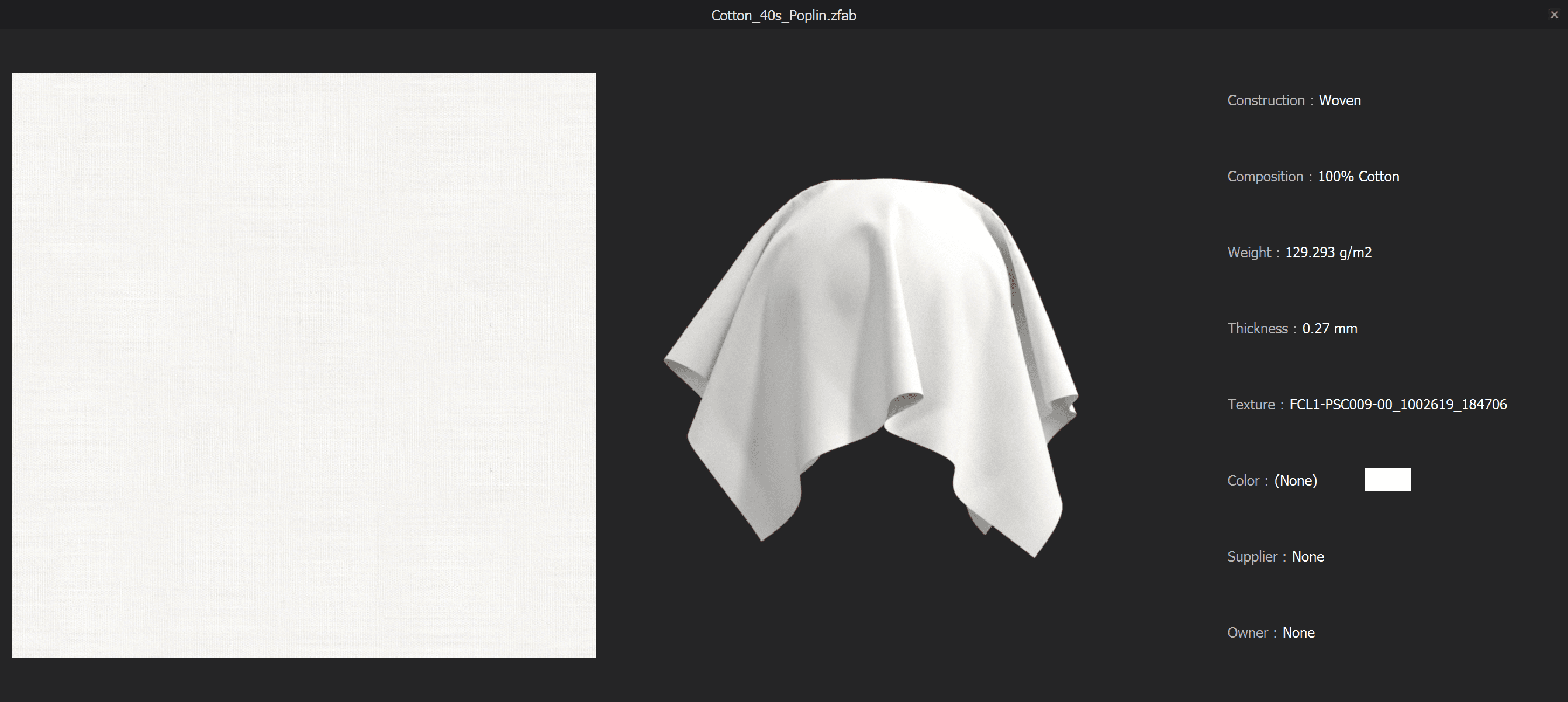

Cotton_40s_Poplin

Cotton_40s_Poplin_md Cotton_40s_Poplin_hou
Cotton_40s_Poplin
Weight (=Density)129.29 (g/m2)
Thickness0.27 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)423510 (g/s2) / 315136 (g/s2)
Shear (Left / Right)154035 (g/s2) / 154035 (g/s2)
Bending (Weft / Warp)5174 (g * mm2/s2) / 8056 (g * mm2/s2)
Bending-Bias (Left / Right)6139 (g * mm2/s2) / 6139 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness3 * 0.000001

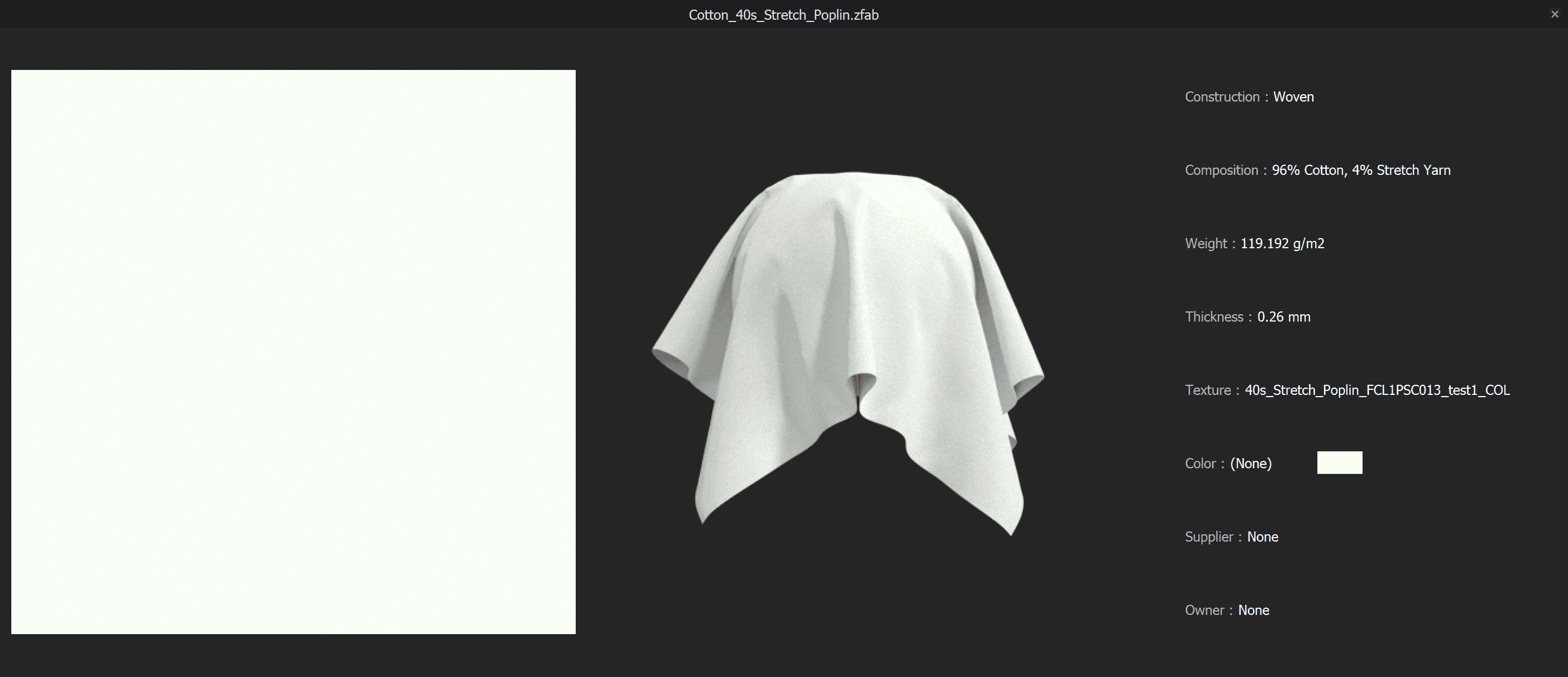

Cotton_40s_Stretch_Poplin

Cotton_40s_Stretch_Poplin_md Cotton_40s_Stretch_Poplin_hou
Cotton_40s_Stretch_Poplin
Weight (=Density)119.19 (g/m2)
Thickness0.26 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)270248 (g/s2) / 340624 (g/s2)
Shear (Left / Right)589503 (g/s2) / 589503 (g/s2)
Bending (Weft / Warp)3071 (g * mm2/s2) / 11508 (g * mm2/s2)
Bending-Bias (Left / Right)6906 (g * mm2/s2) / 6906 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness2 * 0.000001

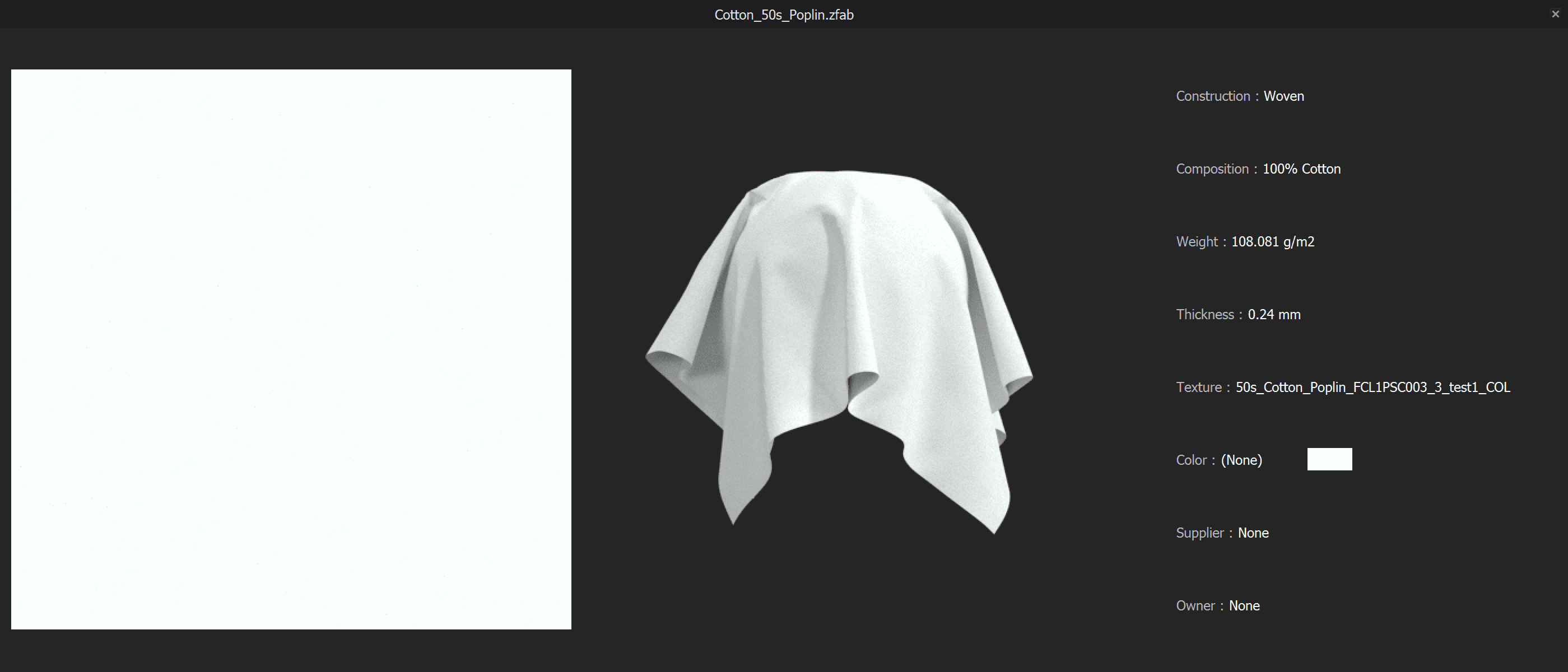

Cotton_50s_Poplin

Cotton_50s_Poplin_md Cotton_50s_Poplin_hou
Cotton_40s_Stretch_Poplin
Weight (=Density)108.08 (g/m2)
Thickness0.24 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)434443 (g/s2) / 460021 (g/s2)
Shear (Left / Right)118333 (g/s2) / 118333 (g/s2)
Bending (Weft / Warp)3838 (g * mm2/s2) / 11502 (g * mm2/s2)
Bending-Bias (Left / Right)5947 (g * mm2/s2) / 5947 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness5 * 0.000001

Denim

Denim_Lightweight

Denim_Lightweight_md Denim_Lightweight_hou
Denim_Lightweight
Weight (=Density)194.95 (g/m2)
Thickness0.71 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)613166 (g/s2) / 413338 (g/s2)
Shear (Left / Right)60204 (g/s2) / 60204 (g/s2)
Bending (Weft / Warp)4623 (g * mm2/s2) / 21095 (g * mm2/s2)
Bending-Bias (Left / Right)10741 (g * mm2/s2) / 10741 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness5 * 0.000001

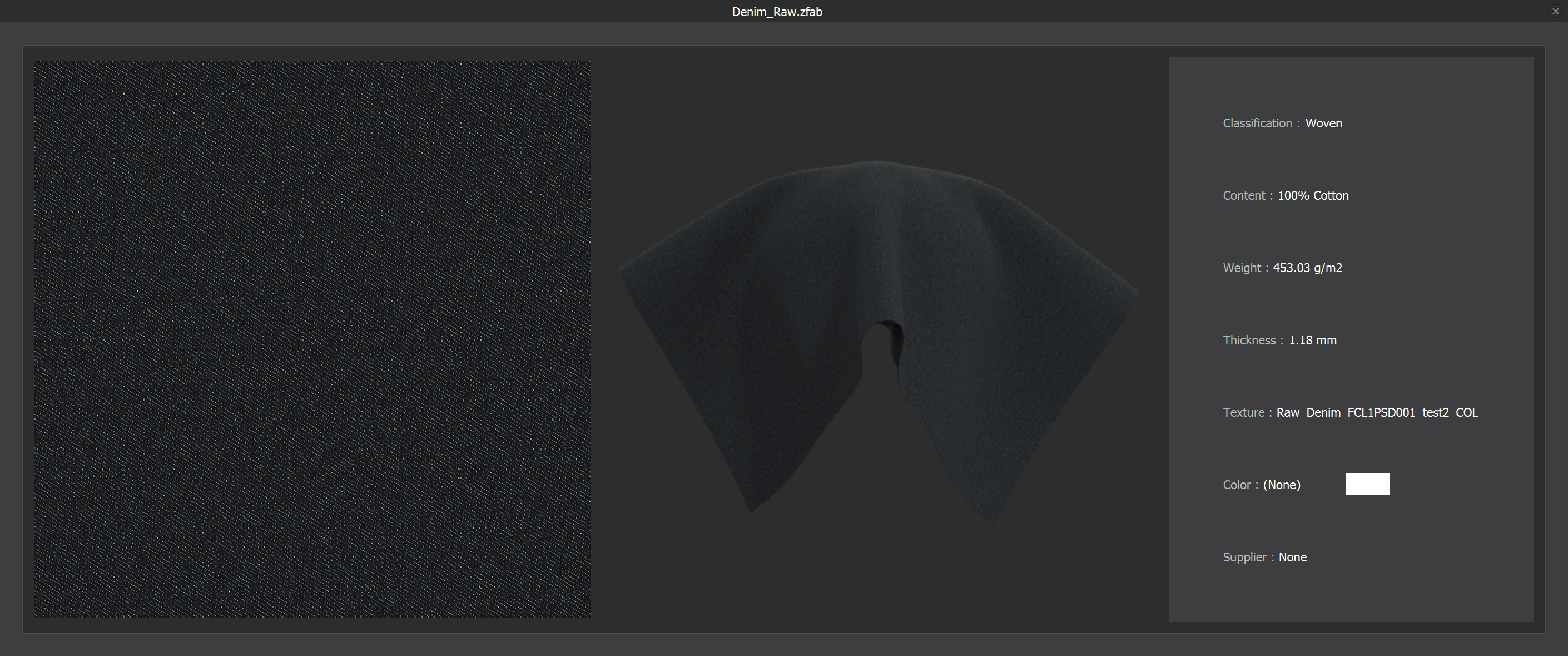

Denim_Raw

Denim_Raw_md Denim_Raw_hou
Denim_Raw
Weight (=Density)453.03 (g/m2)
Thickness1.18 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)686885 (g/s2) / 557445 (g/s2)
Shear (Left / Right)708230 (g/s2) / 708230 (g/s2)
Bending (Weft / Warp)36819 (g * mm2/s2) / 116586 (g * mm2/s2)
Bending-Bias (Left / Right)73634 (g * mm2/s2) / 73634 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.5
Bend-Stiffness7 * 0.00001

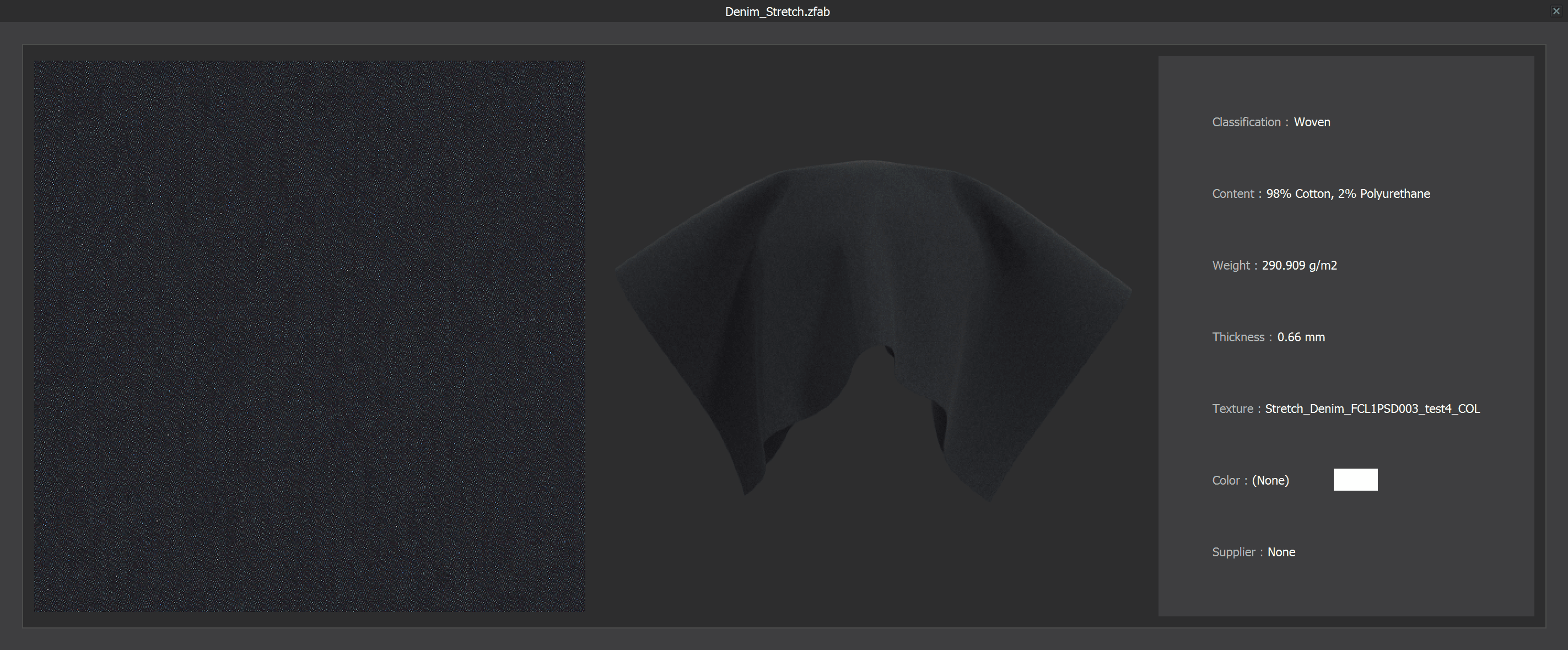

Denim_Stretch

Denim_Stretch_md Denim_Stretch_hou
Denim_Stretch
Weight (=Density)290.91(g/m2)
Thickness0.66 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)594319 (g/s2) / 390296 (g/s2)
Shear (Left / Right)660523 (g/s2) / 660523 (g/s2)
Bending (Weft / Warp)17644 (g * mm2/s2) / 49084 (g * mm2/s2)
Bending-Bias (Left / Right)36819 (g * mm2/s2) / 36819 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness5 * 0.00001

Fur

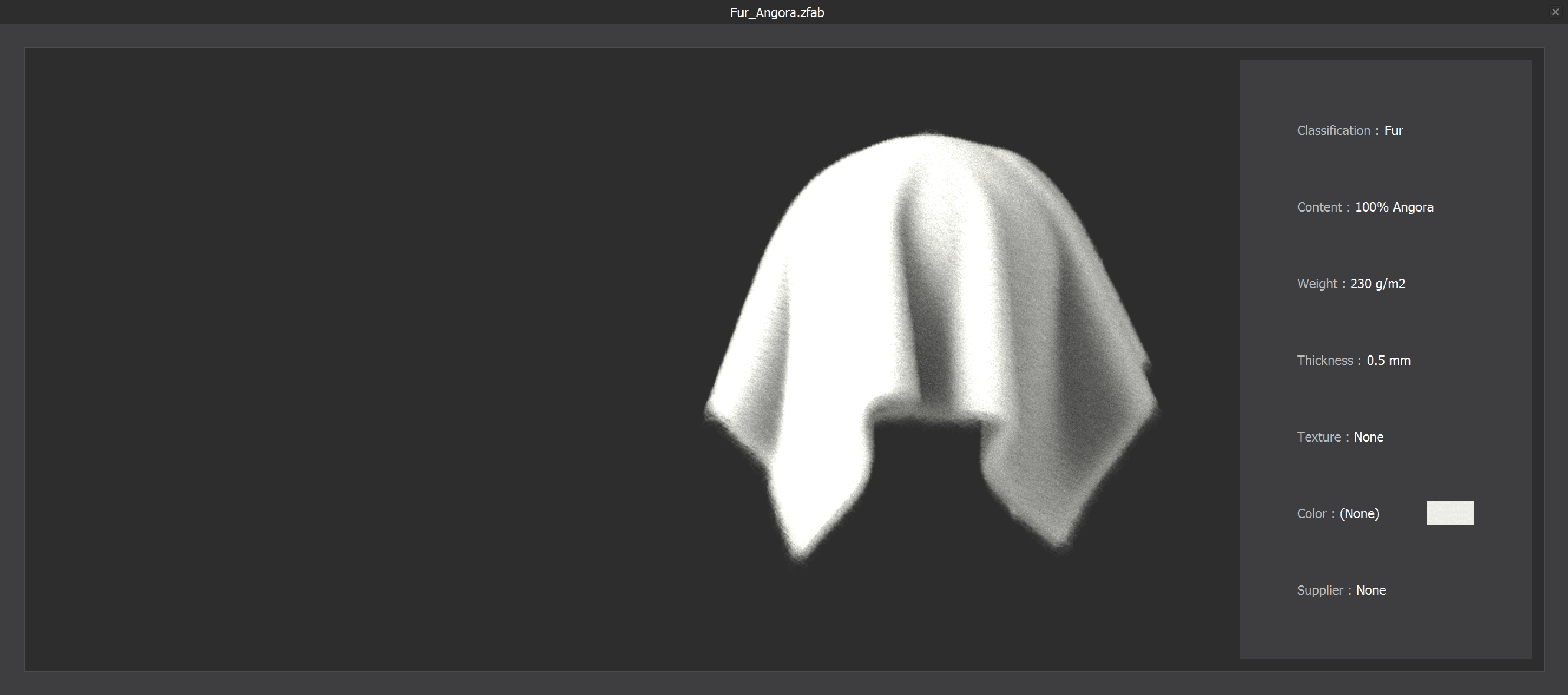

Fur_Angora

Fur_Angora_md Fur_Angora_hou
Fur_Angora
Weight (=Density)230.00 (g/m2)
Thickness0.50 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)53000 (g/s2) / 110000 (g/s2)
Shear (Left / Right)80000 (g/s2) / 80000 (g/s2)
Bending (Weft / Warp)3770 (g * mm2/s2) / 5341 (g * mm2/s2)
Bending-Bias (Left / Right)4712 (g * mm2/s2) / 4712 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness7 * 0.000001

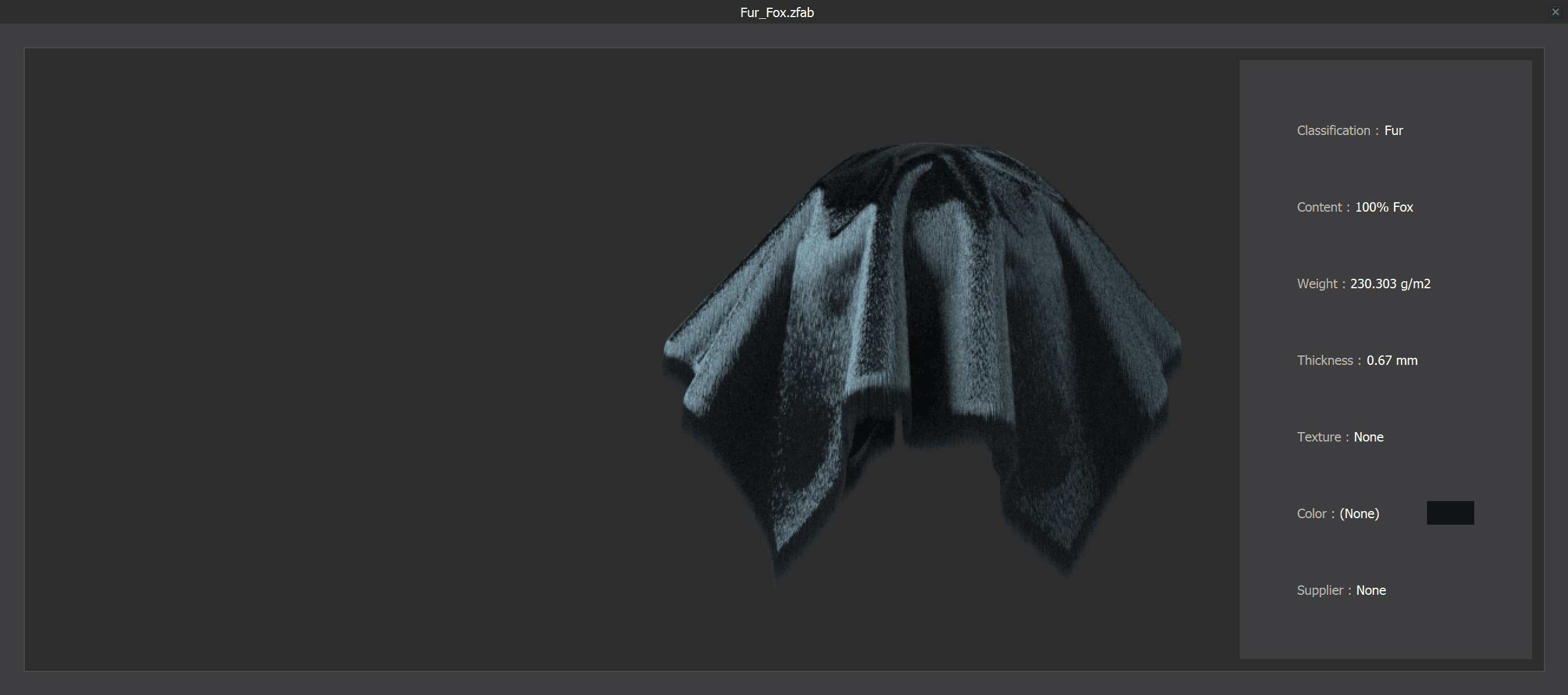

Fur_Fox

Fur_Fox_md Fur_Fox_hou
Fur_Fox
Weight (=Density)230.30 (g/m2)
Thickness0.67 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)1700000 (g/s2) / 2200000 (g/s2)
Shear (Left / Right)2400000 (g/s2) / 2400000 (g/s2)
Bending (Weft / Warp)6283 (g * mm2/s2) / 8796 (g * mm2/s2)
Bending-Bias (Left / Right)7540 (g * mm2/s2) / 7540 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness1 * 0.00001

Fur_Luxe_Cuddle

Fur_Luxe_Cuddle_md Fur_Luxe_Cuddle_hou

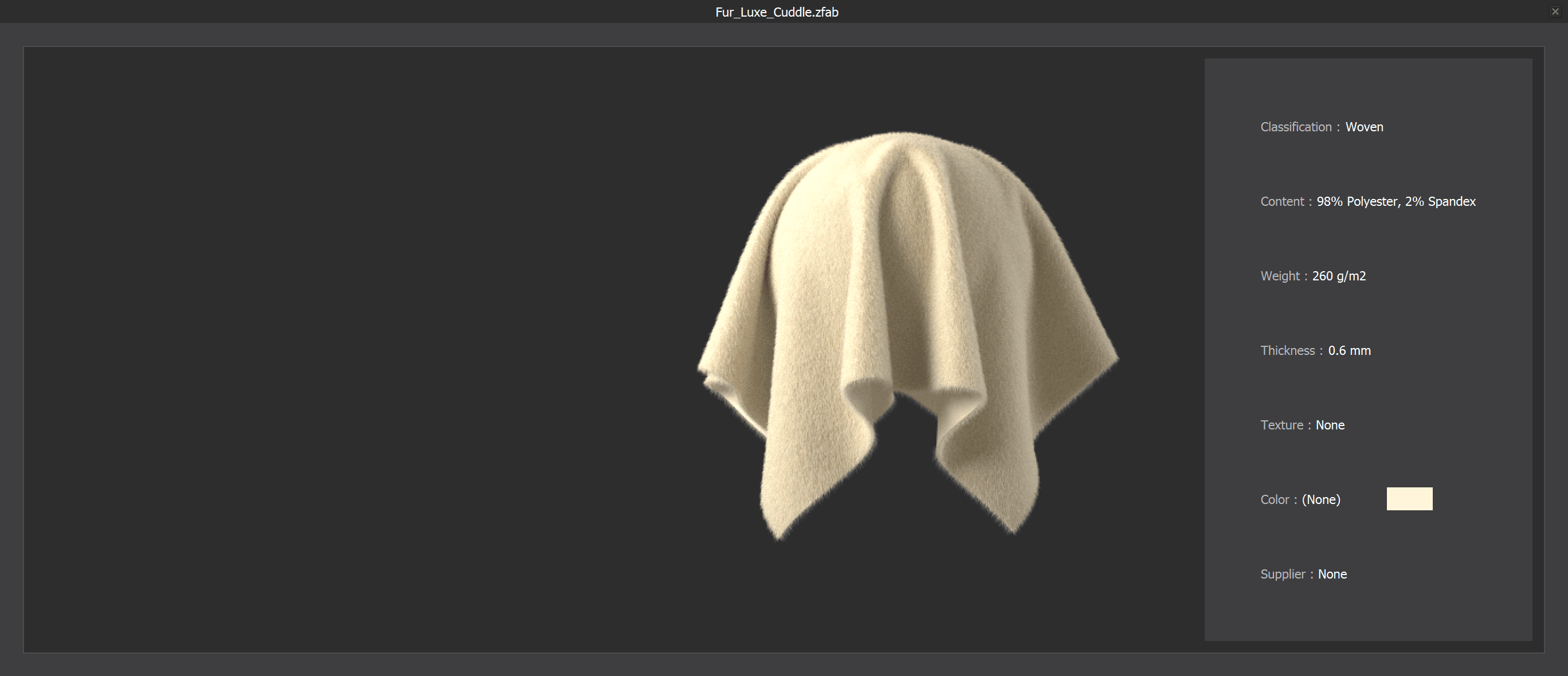

Fur_Luxe_Cuddle
Weight (=Density)260.00 (g/m2)
Thickness0.60 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)70000 (g/s2) / 130000 (g/s2)
Shear (Left / Right)60000 (g/s2) / 60000 (g/s2)
Bending (Weft / Warp)6283 (g * mm2/s2) / 3770 (g * mm2/s2)
Bending-Bias (Left / Right)4398 (g * mm2/s2) / 4398 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness8 * 0.000001

Fur_Mink_Skin

Fur_Mink_Skin_md Fur_Mink_Skin_hou

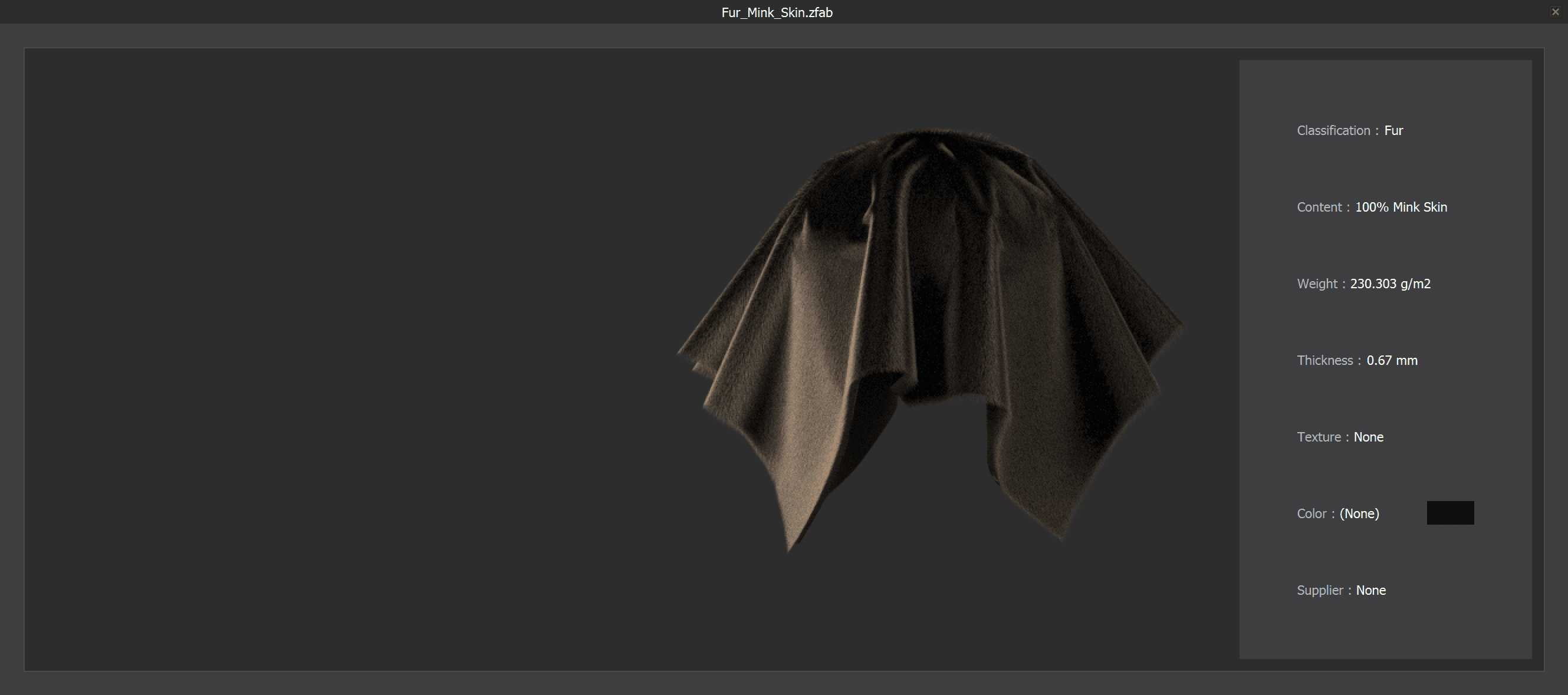

Fur_Mink_Skin
Weight (=Density)230.30 (g/m2)
Thickness0.67 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)1700000 (g/s2) / 2200000 (g/s2)
Shear (Left / Right)1200000 (g/s2) / 1200000 (g/s2)
Bending (Weft / Warp)5341 (g * mm2/s2) / 5969 (g * mm2/s2)
Bending-Bias (Left / Right)5655 (g * mm2/s2) / 5655 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness9 * 0.000001

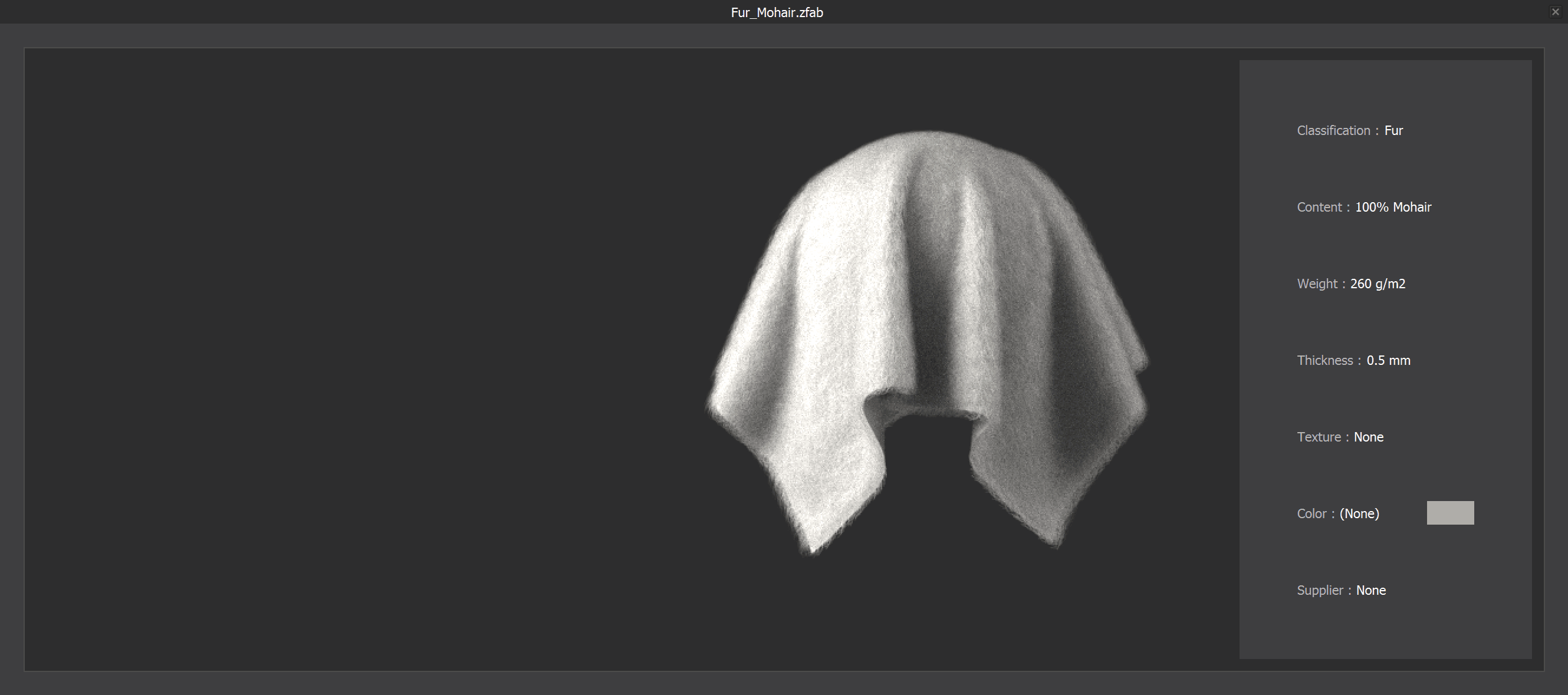

Fur_Mohair

Fur_Mohair_md Fur_Mohair_hou
Fur_Mohair
Weight (=Density)260.00 (g/m2)
Thickness0.50 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)70000 (g/s2) / 130000 (g/s2)
Shear (Left / Right)60000 (g/s2) / 60000 (g/s2)
Bending (Weft / Warp)6283 (g * mm2/s2) / 3770 (g * mm2/s2)
Bending-Bias (Left / Right)4398 (g * mm2/s2) / 4398 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness8 * 0.000001

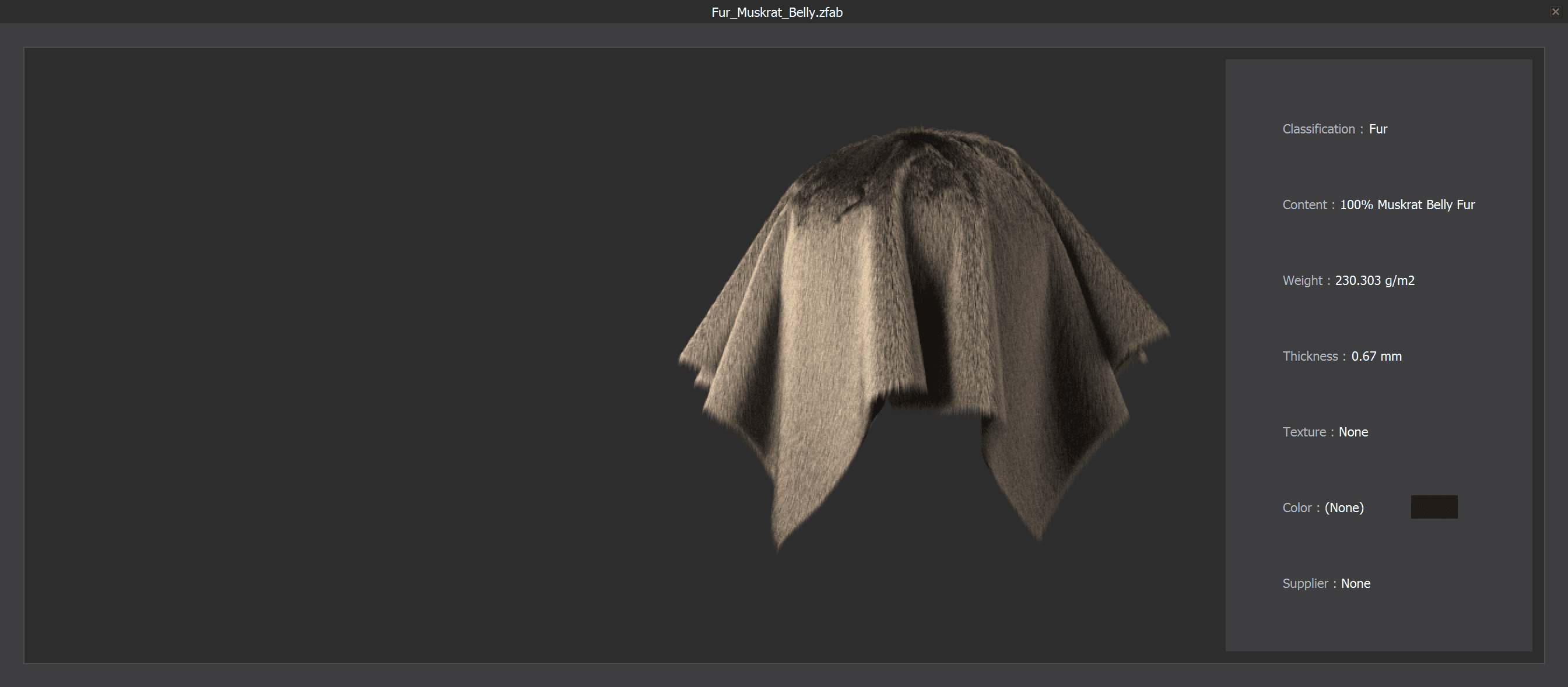

Fur_Muskrat_Belly

Fur_Muskrat_Belly_md Fur_Muskrat_Belly_hou
Fur_Muskrat_Belly
Weight (=Density)230.30 (g/m2)
Thickness0.67 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)700000 (g/s2) / 1700000 (g/s2)
Shear (Left / Right)660000 (g/s2) / 660000 (g/s2)
Bending (Weft / Warp)4398 (g * mm2/s2) / 3770 (g * mm2/s2)
Bending-Bias (Left / Right)4084 (g * mm2/s2) / 4084 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness7 * 0.000001

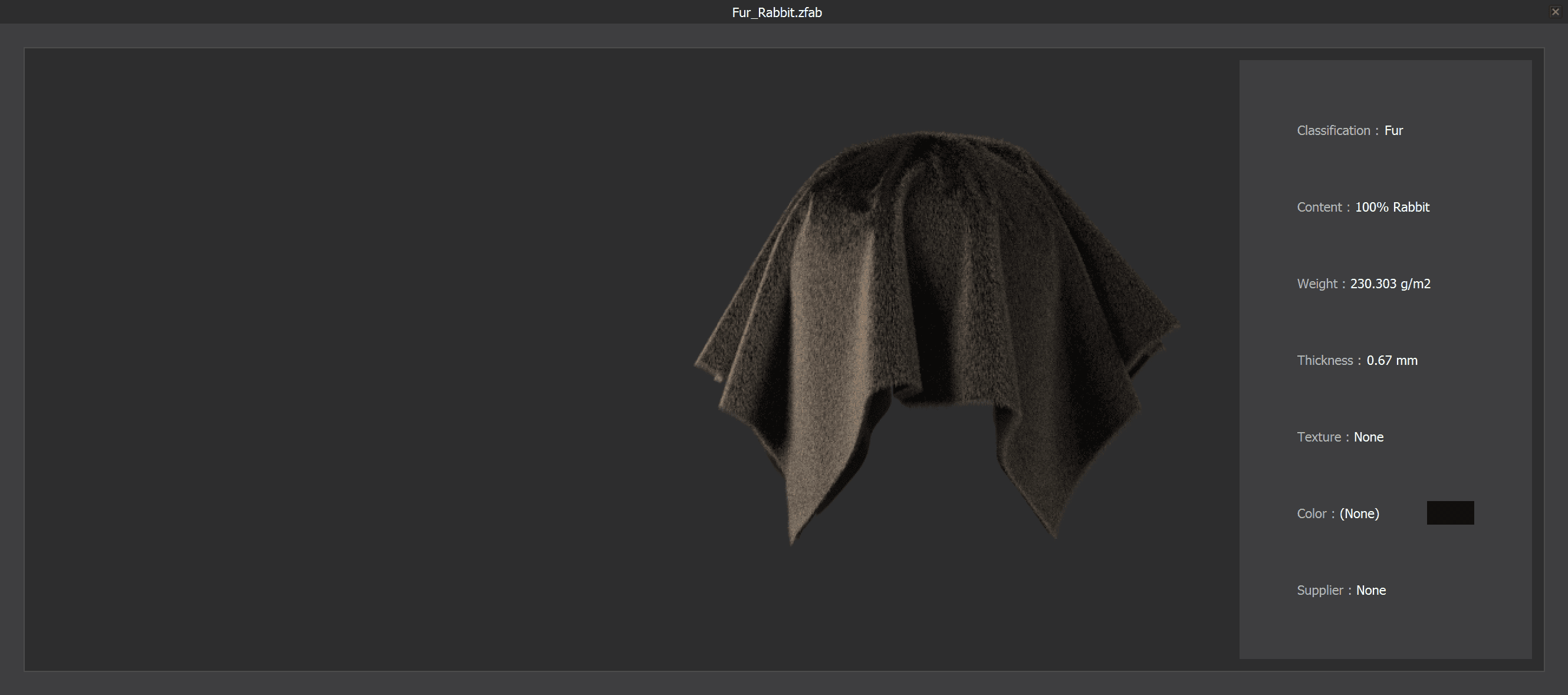

Fur_Rabbit

Fur_Rabbit_md Fur_Rabbit_hou
Fur_Rabbit
Weight (=Density)230.30 (g/m2)
Thickness0.67 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)700000 (g/s2) / 1700000 (g/s2)
Shear (Left / Right)660000 (g/s2) / 660000 (g/s2)
Bending (Weft / Warp)3770 (g * mm2/s2) / 5341 (g * mm2/s2)
Bending-Bias (Left / Right)4555 (g * mm2/s2) / 4555 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness8 * 0.000001

Interlining

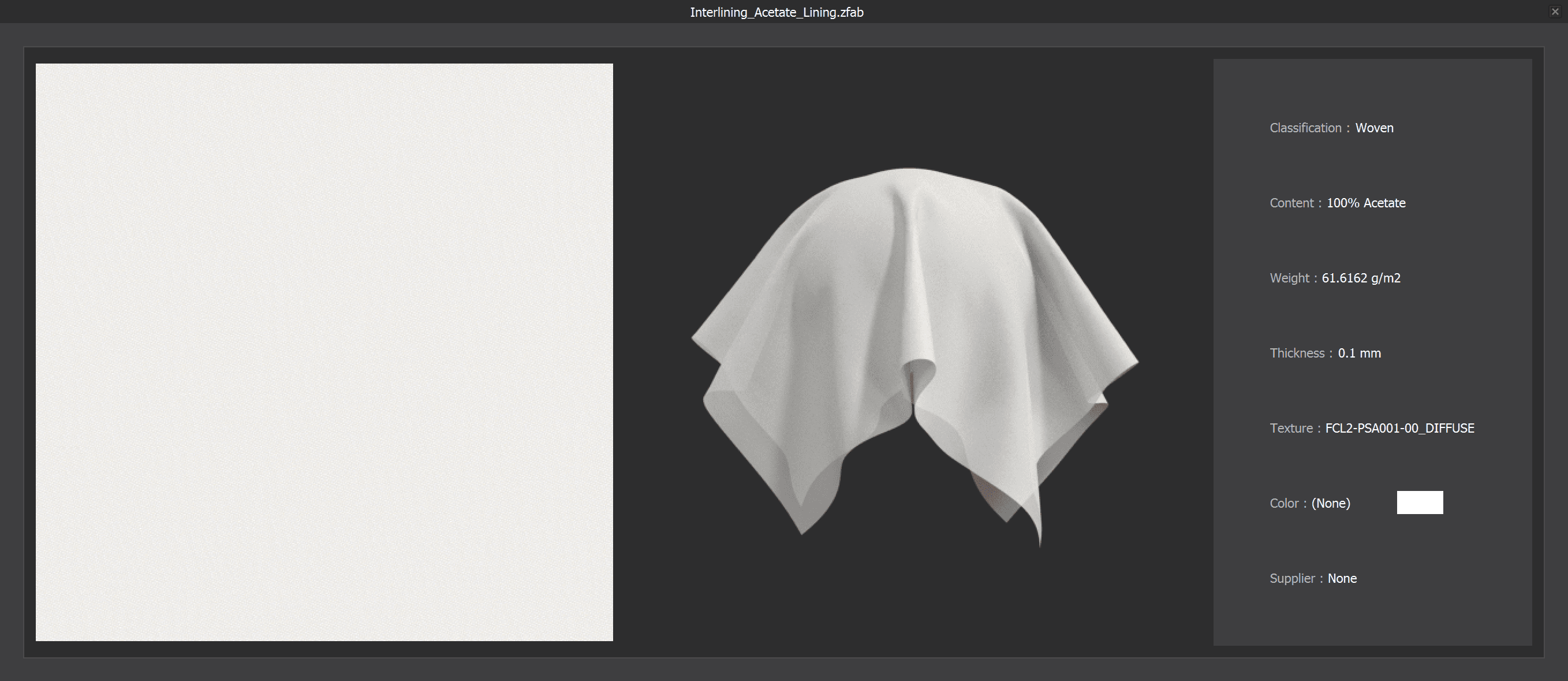

Interlining_Acetate_Lining

Interlining_Acetate_Lining_md Interlining_Acetate_Lining_hou
Interlining_Acetate_Lining
Weight (=Density)61.62 (g/m2)
Thickness0.10 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)286181 (g/s2) / 259999 (g/s2)
Shear (Left / Right)159347 (g/s2) / 159347 (g/s2)
Bending (Weft / Warp)3071 (g * mm2/s2) / 8823 (g * mm2/s2)
Bending-Bias (Left / Right)5348 (g * mm2/s2) / 5348 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness5 * 0.000001

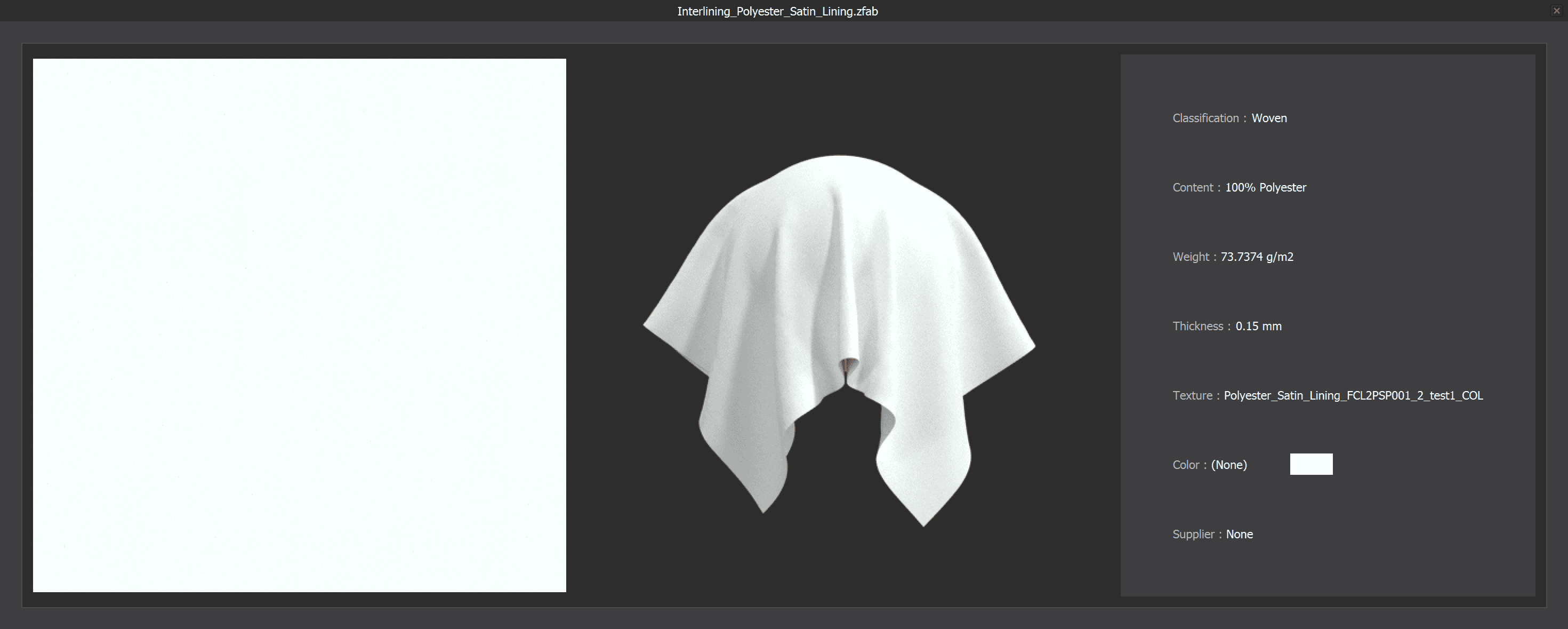

Interlining_Polyester_Statin_Lining

Interlining_Polyester_Statin_Lining_md Interlining_Polyester_Statin_Lining_hou
Interlining_Polyester_Statin_Lining
Weight (=Density)73.74 (g/m2)
Thickness0.15 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)256180 (g/s2) / 176127 (g/s2)
Shear (Left / Right)10653 (g/s2) / 10653 (g/s2)
Bending (Weft / Warp)1333 (g * mm2/s2) / 7667 (g * mm2/s2)
Bending-Bias (Left / Right)3454 (g * mm2/s2) / 3454 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness2 * 0.000001

Knit

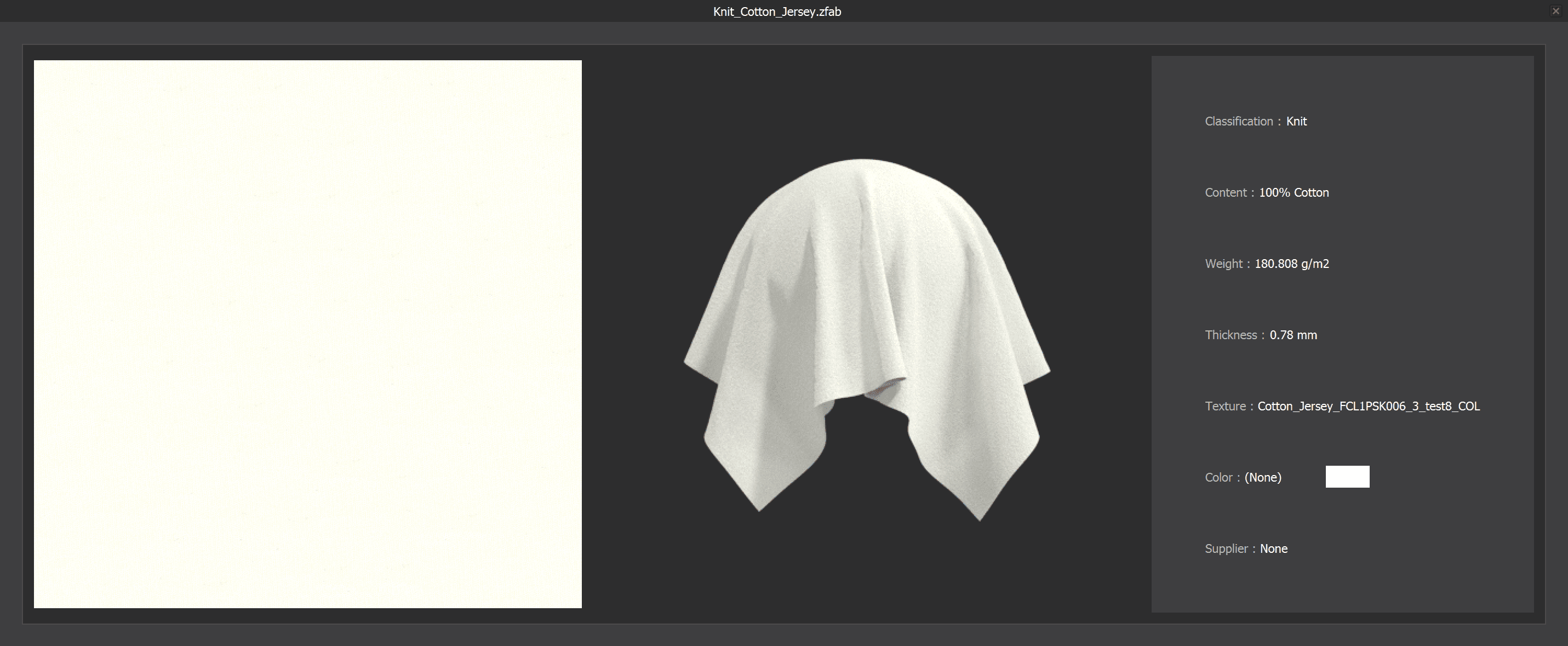

Knit_Cotton_Jersey

Knit_Cotton_Jersey_md Knit_Cotton_Jersey_hou
Knit_Cotton_Jersey
Weight (=Density)180.81 (g/m2)
Thickness0.78 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)238676 (g/s2) / 149515 (g/s2)
Shear (Left / Right)39516 (g/s2) / 39516 (g/s2)
Bending (Weft / Warp)482 (g * mm2/s2) / 6139 (g * mm2/s2)
Bending-Bias (Left / Right)1723 (g * mm2/s2) / 1723 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness4 * 0.000001

Knit_Cotton_Rayon_Jersey

Knit_Cotton_Rayon_Jersey_md Knit_Cotton_Rayon_Jersey_hou
Knit_Cotton_Rayon_Jersey
Weight (=Density)140.40 (g/m2)
Thickness0.51 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)14885 (g/s2) / 27841 (g/s2)
Shear (Left / Right)45059 (g/s2) / 45059 (g/s2)
Bending (Weft / Warp)129 (g * mm2/s2) / 2202 (g * mm2/s2)
Bending-Bias (Left / Right)650 (g * mm2/s2) / 650 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness7 * 0.0000001

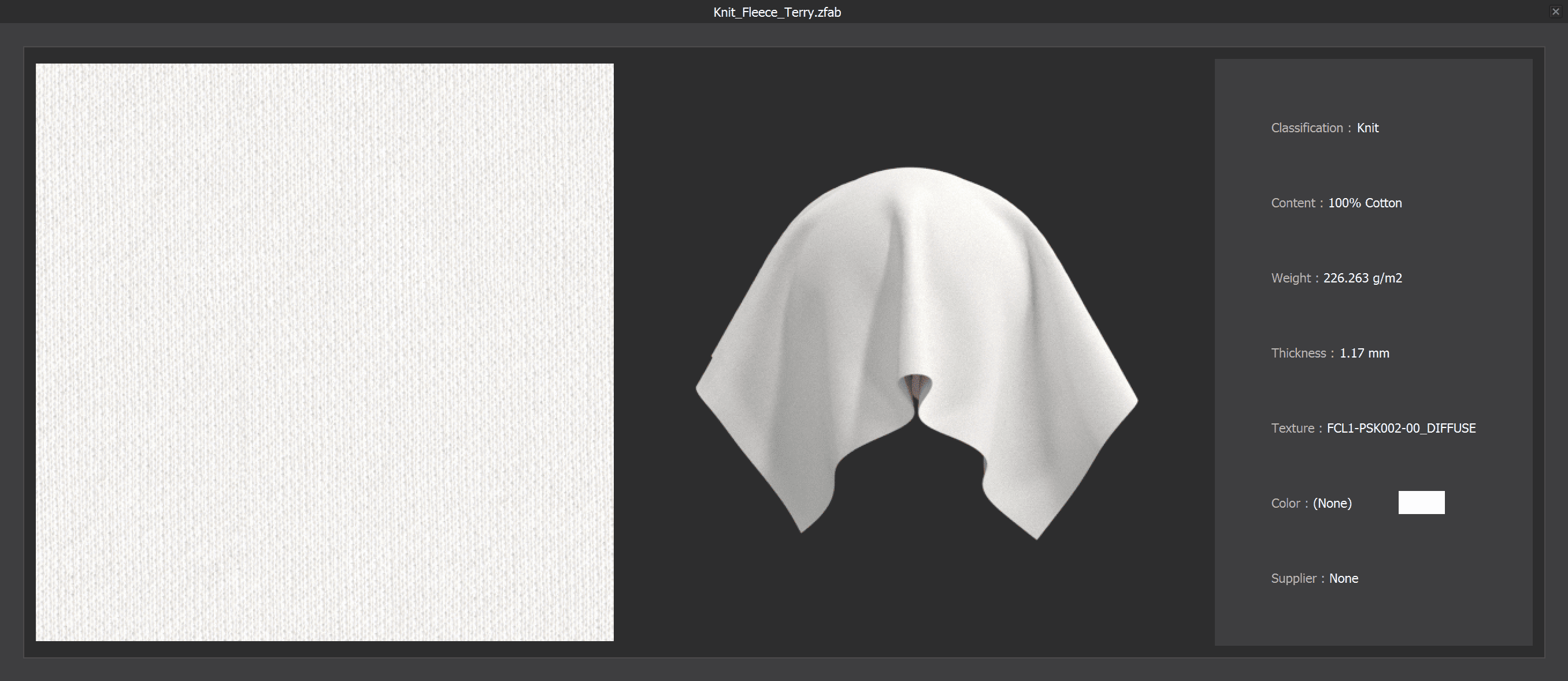

Knit_Fleece_Terry

Knit_Fleece_Terry_md Knit_Fleece_Terry_hou
Knit_Fleece_Terry
Weight (=Density)226.26 (g/m2)
Thickness1.17 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)60241 (g/s2) / 38348 (g/s2)
Shear (Left / Right)134265 (g/s2) / 134265 (g/s2)
Bending (Weft / Warp)6906 (g * mm2/s2) / 11694 (g * mm2/s2)
Bending-Bias (Left / Right)7673 (g * mm2/s2) / 7673 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness9 * 0.000001

Knit_Pique_Jersey

Knit_Pique_Jersey_md Knit_Pique_Jersey_hou
Knit_Pique_Jersey
Weight (=Density)197.47 (g/m2)
Thickness0.85 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)65265 (g/s2) / 65483 (g/s2)
Shear (Left / Right)132064 (g/s2) / 132064 (g/s2)
Bending (Weft / Warp)1537 (g * mm2/s2) / 11142 (g * mm2/s2)
Bending-Bias (Left / Right)4239 (g * mm2/s2) / 4239 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness7 * 0.000001

Knit_Ponte_Jersey

Knit_Ponte_Jersey_md Knit_Ponte_Jersey_hou
Knit_Ponte_Jersey
Weight (=Density)341.92 (g/m2)
Thickness0.98 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)173939 (g/s2) / 94502 (g/s2)
Shear (Left / Right)107253 (g/s2) / 107253 (g/s2)
Bending (Weft / Warp)4311 (g * mm2/s2) / 4209 (g * mm2/s2)
Bending-Bias (Left / Right)4215 (g * mm2/s2) / 4215 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness7 * 0.000001

Knit_Terry

Knit_Terry_md Knit_Terry_hou
Knit_Terry
Weight (=Density)354.04 (g/m2)
Thickness1.75 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)48205 (g/s2) / 500 (g/s2)
Shear (Left / Right)177764 (g/s2) / 177764 (g/s2)
Bending (Weft / Warp)9201 (g * mm2/s2) / 23780 (g * mm2/s2)
Bending-Bias (Left / Right)13995 (g * mm2/s2) / 13995 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.4
Bend-Stiffness2 * 0.00001

Leather

Leather_Lambskin

Leather_Lambskin_md Leather_Lambskin_hou
Leather_Lambskin
Weight (=Density)328.79 (g/m2)
Thickness0.84 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)189278 (g/s2) / 393581 (g/s2)
Shear (Left / Right)472419 (g/s2) / 472419 (g/s2)
Bending (Weft / Warp)6516 (g * mm2/s2) / 20035 (g * mm2/s2)
Bending-Bias (Left / Right)9968 (g * mm2/s2) / 9968 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness1 * 0.00001

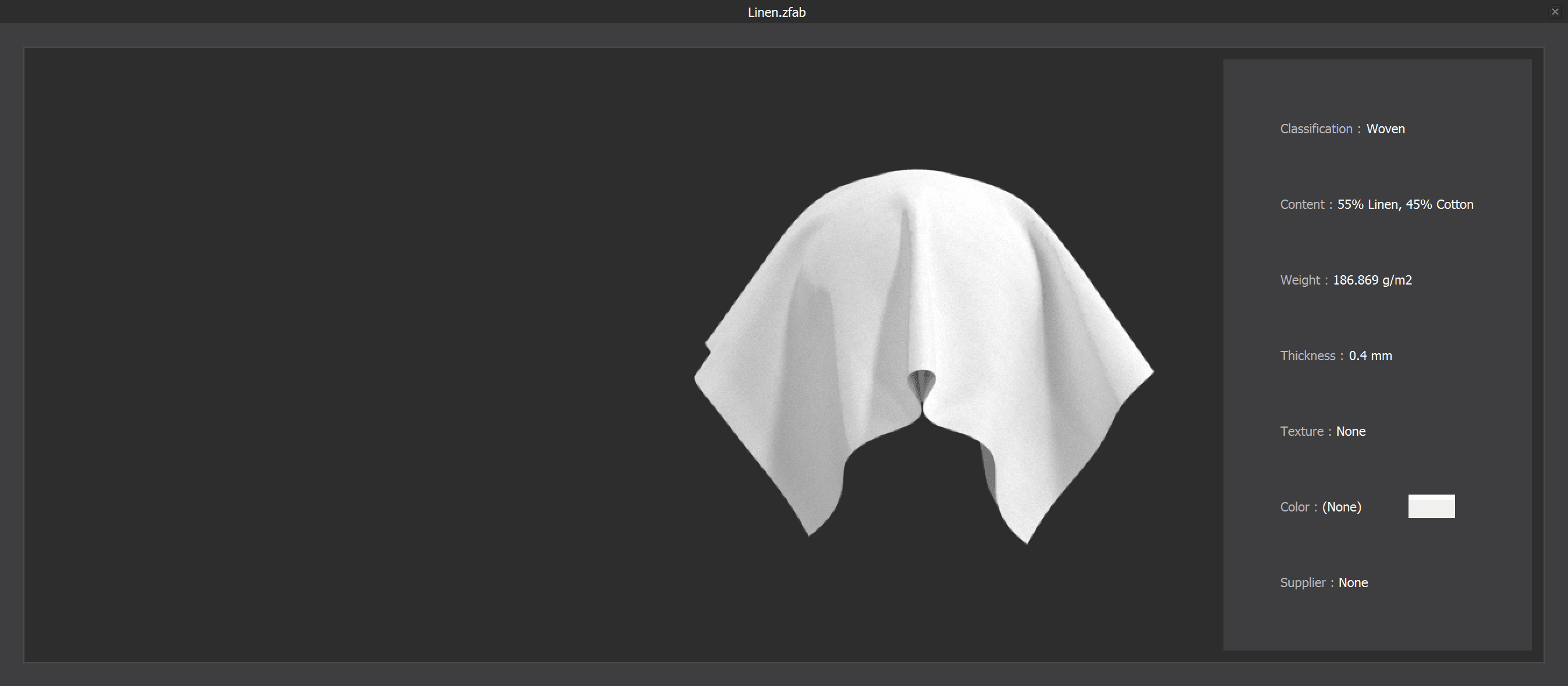

Linen

Linen

Linen_md Linen_hou
Linen
Weight (=Density)186.87 (g/m2)
Thickness0.40 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)455240 (g/s2) / 572711 (g/s2)
Shear (Left / Right)77972 (g/s2) / 77972 (g/s2)
Bending (Weft / Warp)9207 (g * mm2/s2) / 24541 (g * mm2/s2)
Bending-Bias (Left / Right)15720 (g * mm2/s2) / 15720 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness2 * 0.00001

Muslin

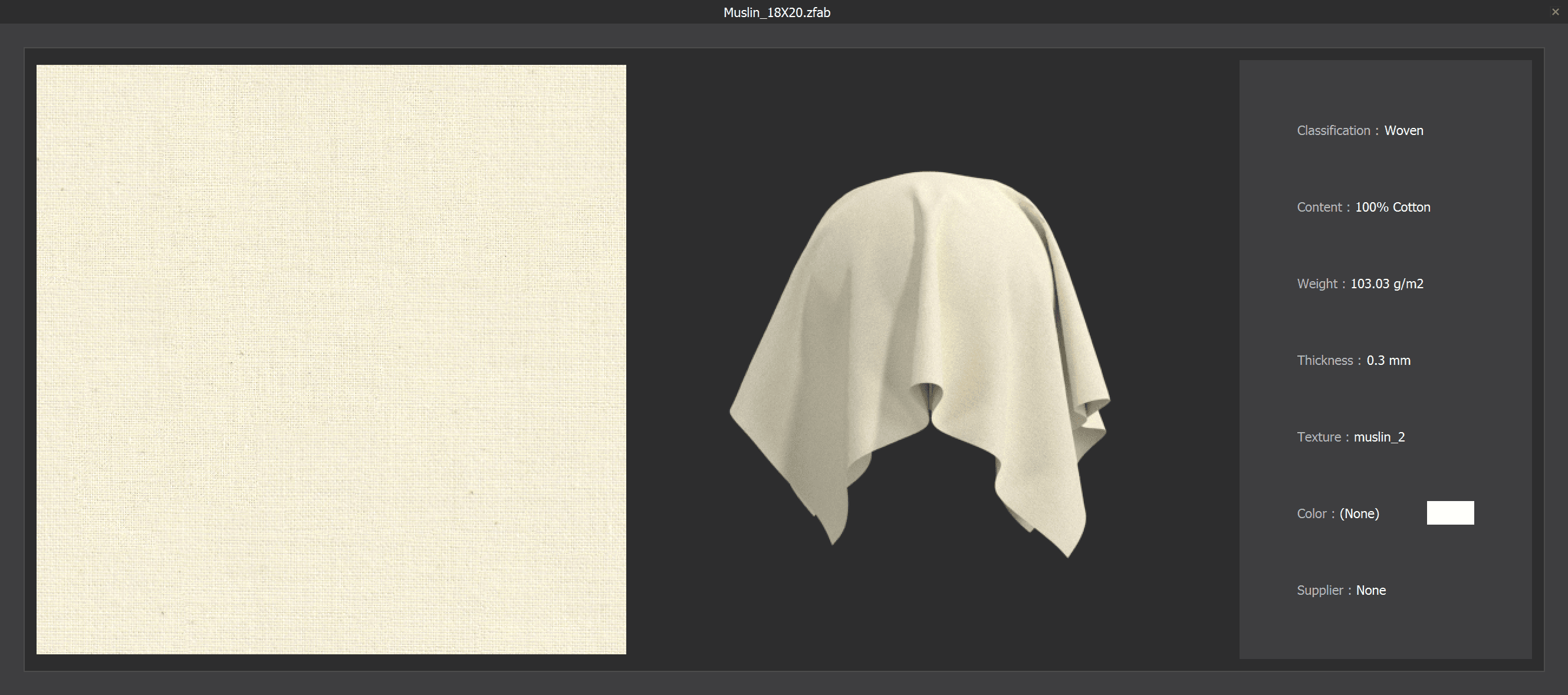

Muslin_18X20

Muslin_18X20_md Muslin_18X20_hou
Muslin_18X20
Weight (=Density)103.03 (g/m2)
Thickness0.30 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)152454 (g/s2) / 212880 (g/s2)
Shear (Left / Right)99420 (g/s2) / 99420 (g/s2)
Bending (Weft / Warp)3263 (g * mm2/s2) / 6139 (g * mm2/s2)
Bending-Bias (Left / Right)4599 (g * mm2/s2) / 4599 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness3 * 0.000001

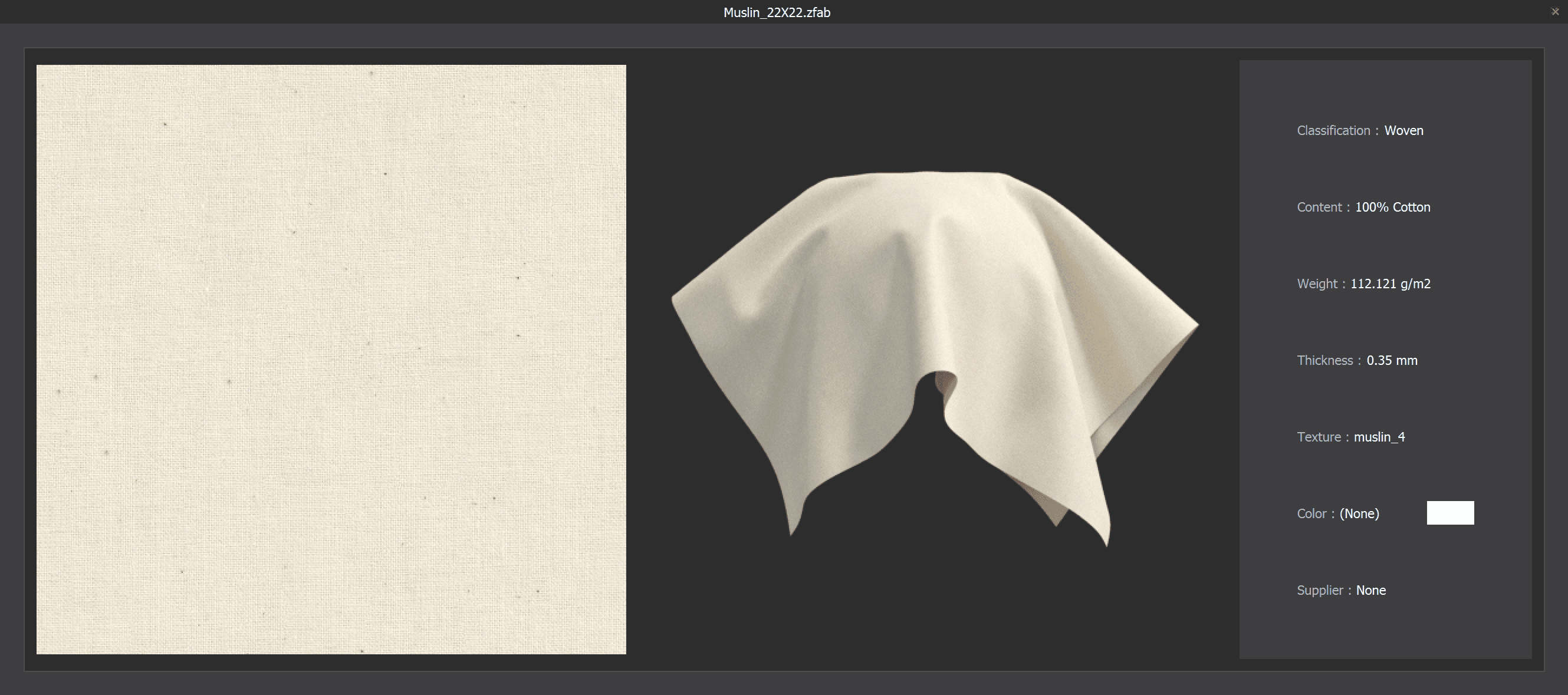

Muslin_22X22

Muslin_22X22_md Muslin_22X22_hou
Muslin_22X22
Weight (=Density)112.12 (g/m2)
Thickness0.35 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)565747 (g/s2) / 669578 (g/s2)
Shear (Left / Right)51466 (g/s2) / 51466 (g/s2)
Bending (Weft / Warp)8440 (g * mm2/s2) / 19939 (g * mm2/s2)
Bending-Bias (Left / Right)12652 (g * mm2/s2) / 12652 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness6 * 0.000001

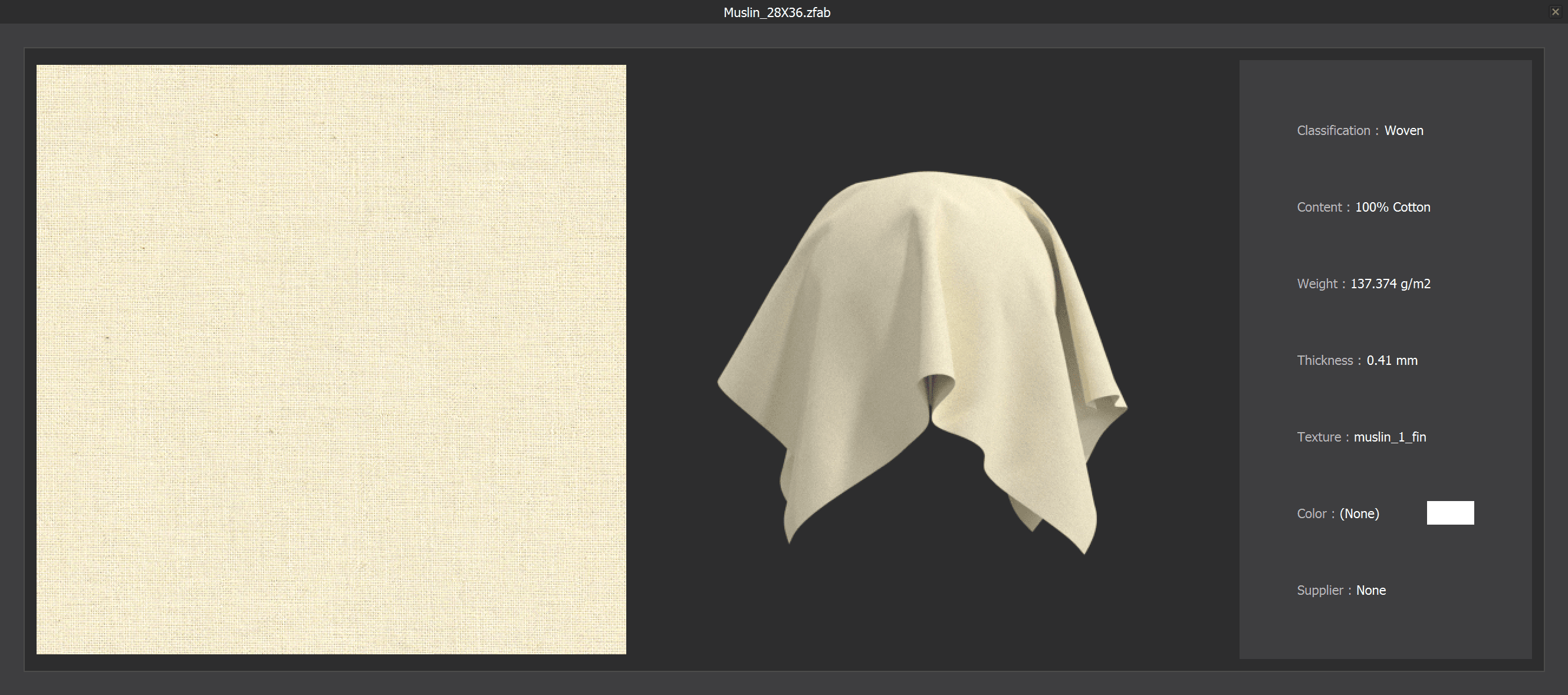

Muslin_28X36

Muslin_28X36_md Muslin_28X36_hou
Muslin_28X36
Weight (=Density)137.37 (g/m2)
Thickness0.41 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)470008 (g/s2) / 388375 (g/s2)
Shear (Left / Right)108637 (g/s2) / 108637 (g/s2)
Bending (Weft / Warp)8440 (g * mm2/s2) / 9974 (g * mm2/s2)
Bending-Bias (Left / Right)9201 (g * mm2/s2) / 9201 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness4 * 0.000001

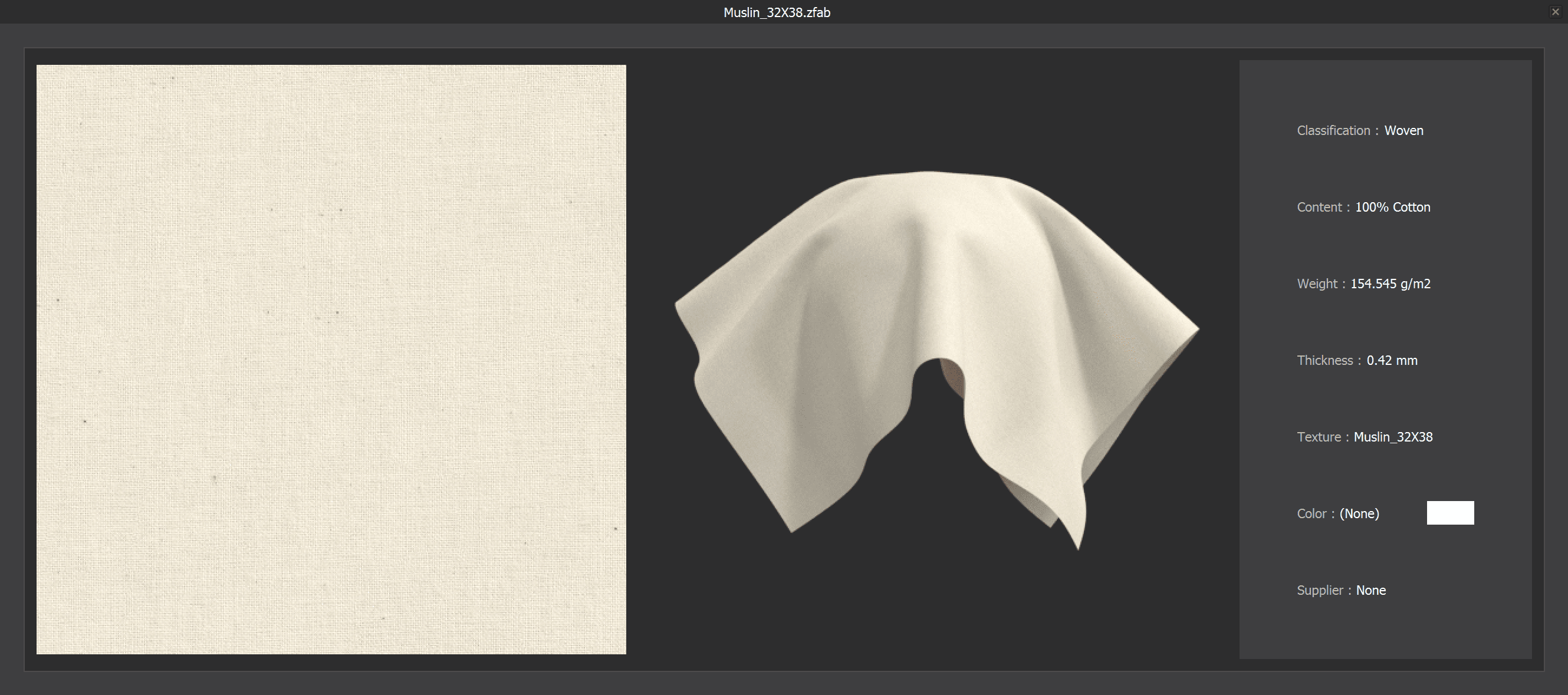

Muslin_32X38

Muslin_32X38_md Muslin_32X38_hou
Muslin_32X38
Weight (=Density)154.55 (g/m2)
Thickness0.42 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)399053 (g/s2) / 378091 (g/s2)
Shear (Left / Right)204805 (g/s2) / 204805 (g/s2)
Bending (Weft / Warp)24541 (g * mm2/s2) / 24541 (g * mm2/s2)
Bending-Bias (Left / Right)24541 (g * mm2/s2) / 24541 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness2 * 0.00001

Nylon

Nylon_Canvas

Nylon_Canvas_md Nylon_Canvas_hou
Nylon_Canvas
Weight (=Density)169.70 (g/m2)
Thickness0.27 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)1000000 (g/s2) / 341048 (g/s2)
Shear (Left / Right)337922 (g/s2) / 337922 (g/s2)
Bending (Weft / Warp)36819 (g * mm2/s2) / 24451 (g * mm2/s2)
Bending-Bias (Left / Right)24541 (g * mm2/s2) / 24541 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness2 * 0.00001

Nylon_Featherweight

Nylon_Featherweight_md Nylon_Canvas_hou
Nylon_Featherweight
Weight (=Density)33.84 (g/m2)
Thickness0.05 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)71443 (g/s2) / 209694 (g/s2)
Shear (Left / Right)13857 (g/s2) / 13857 (g/s2)
Bending (Weft / Warp)776 (g * mm2/s2) / 482 (g * mm2/s2)
Bending-Bias (Left / Right)602 (g * mm2/s2) / 602 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness6 * 0.0000001

Nylon_Matte

Nylon_Matte_md Nylon_Matte_hou
Nylon_Matte
Weight (=Density)54.04 (g/m2)
Thickness0.06 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)383232 (g/s2) / 254436 (g/s2)
Shear (Left / Right)38705 (g/s2) / 38705 (g/s2)
Bending (Weft / Warp)1130 (g * mm2/s2) / 2687 (g * mm2/s2)
Bending-Bias (Left / Right)1633 (g * mm2/s2) / 1633 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness8 * 0.0000001

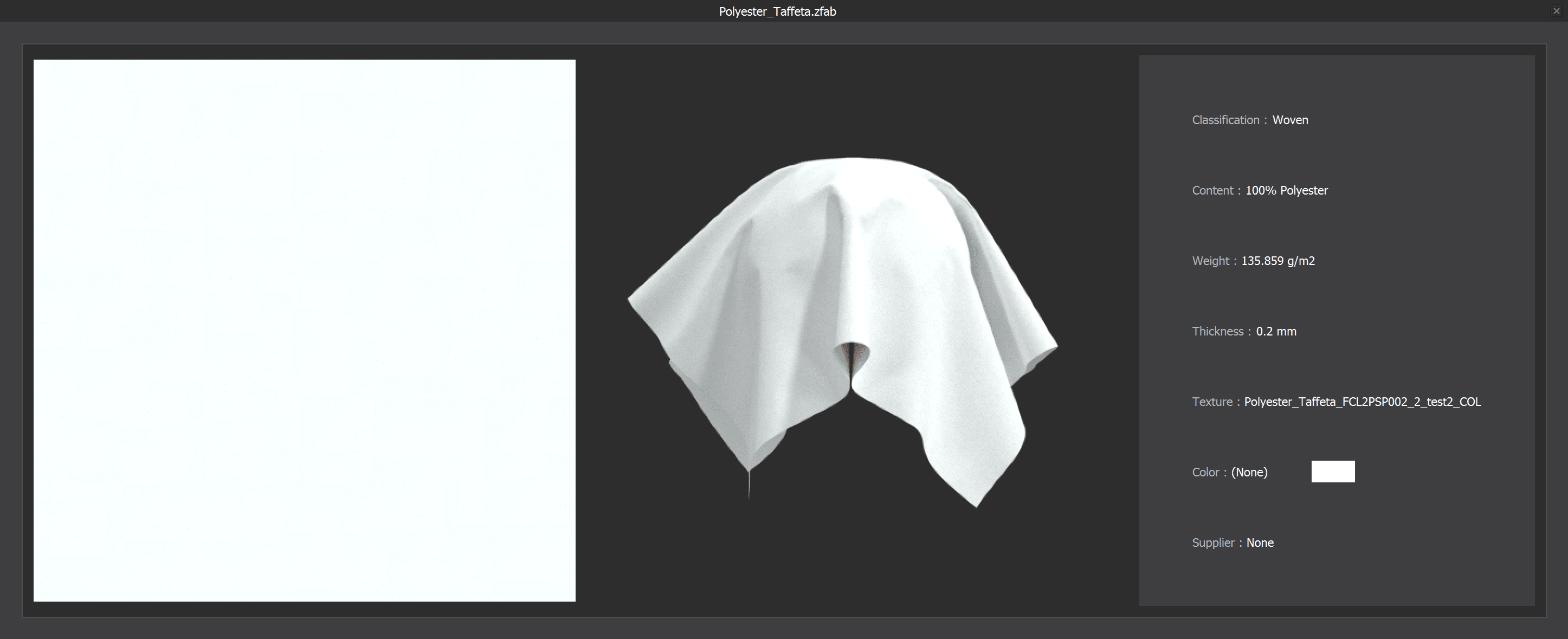

Polyester

Polyester_Taffeta

Polyester_Taffeta_md Polyester_Taffeta_hou
Polyester_Taffeta
Weight (=Density)135.86 (g/m2)
Thickness0.20 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)544209 (g/s2) / 605146 (g/s2)
Shear (Left / Right)831746 (g/s2) / 831746 (g/s2)
Bending (Weft / Warp)13042 (g * mm2/s2) / 5749 (g * mm2/s2)
Bending-Bias (Left / Right)9201 (g * mm2/s2) / 9201 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness6 * 0.000001

Rib

Rib_1X1_319gsm

Rib_1X1_319gsm_md Rib_1X1_319gsm_hou
Rib_1X1_319gsm
Weight (=Density)319.19 (g/m2)
Thickness0.90 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)51992 (g/s2) / 441727 (g/s2)
Shear (Left / Right)47242 (g/s2) / 47242 (g/s2)
Bending (Weft / Warp)536 (g * mm2/s2) / 10927 (g * mm2/s2)
Bending-Bias (Left / Right)1920 (g * mm2/s2) / 1920 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness2 * 0.000001

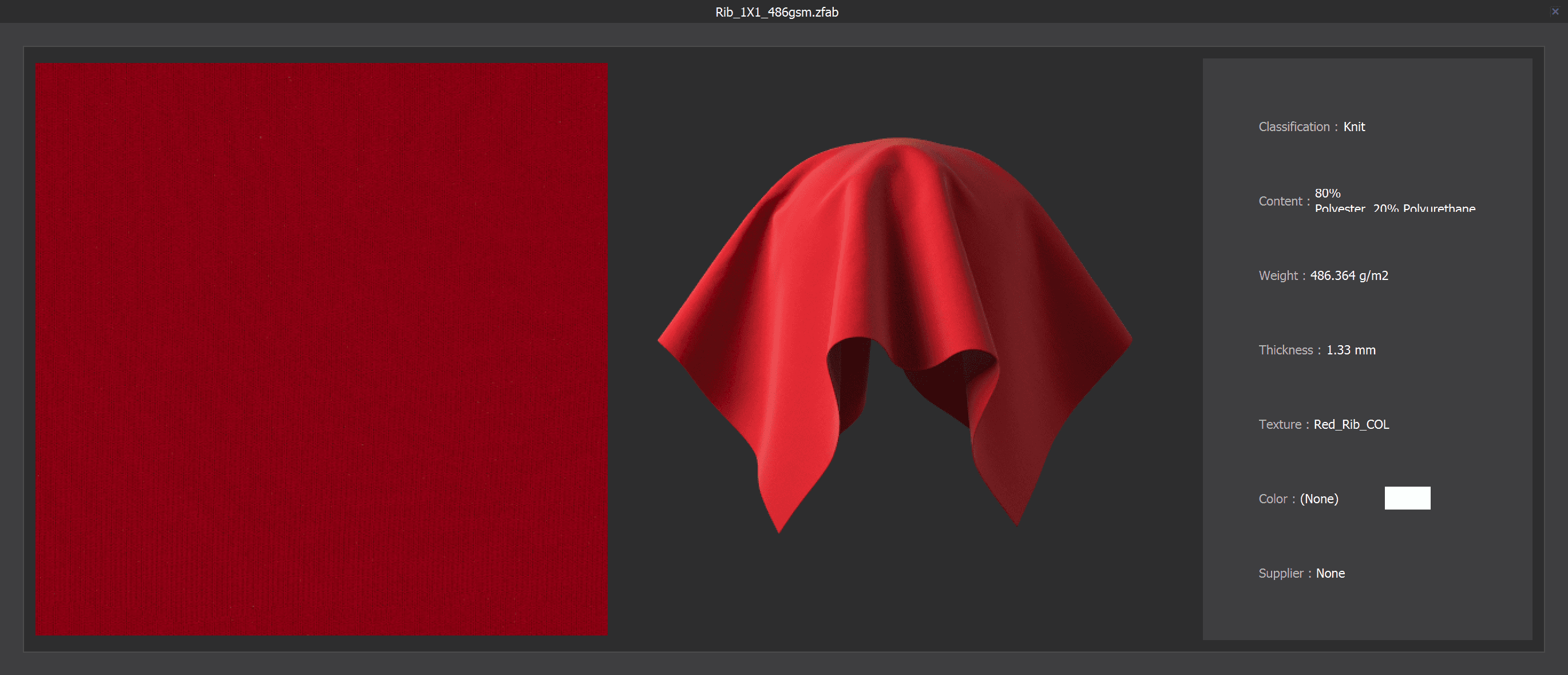

Rib_1X1_486gsm

Rib_1X1_486gsm_md Rib_1X1_486gsm_hou
Rib_1X1_486gsm
Weight (=Density)486.36 (g/m2)
Thickness1.33 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)833752 (g/s2) / 435760 (g/s2)
Shear (Left / Right)749103 (g/s2) / 749103 (g/s2)
Bending (Weft / Warp)10741 (g * mm2/s2) / 98172 (g * mm2/s2)
Bending-Bias (Left / Right)42571 (g * mm2/s2) / 42571 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.5
Bend-Stiffness4 * 0.00001

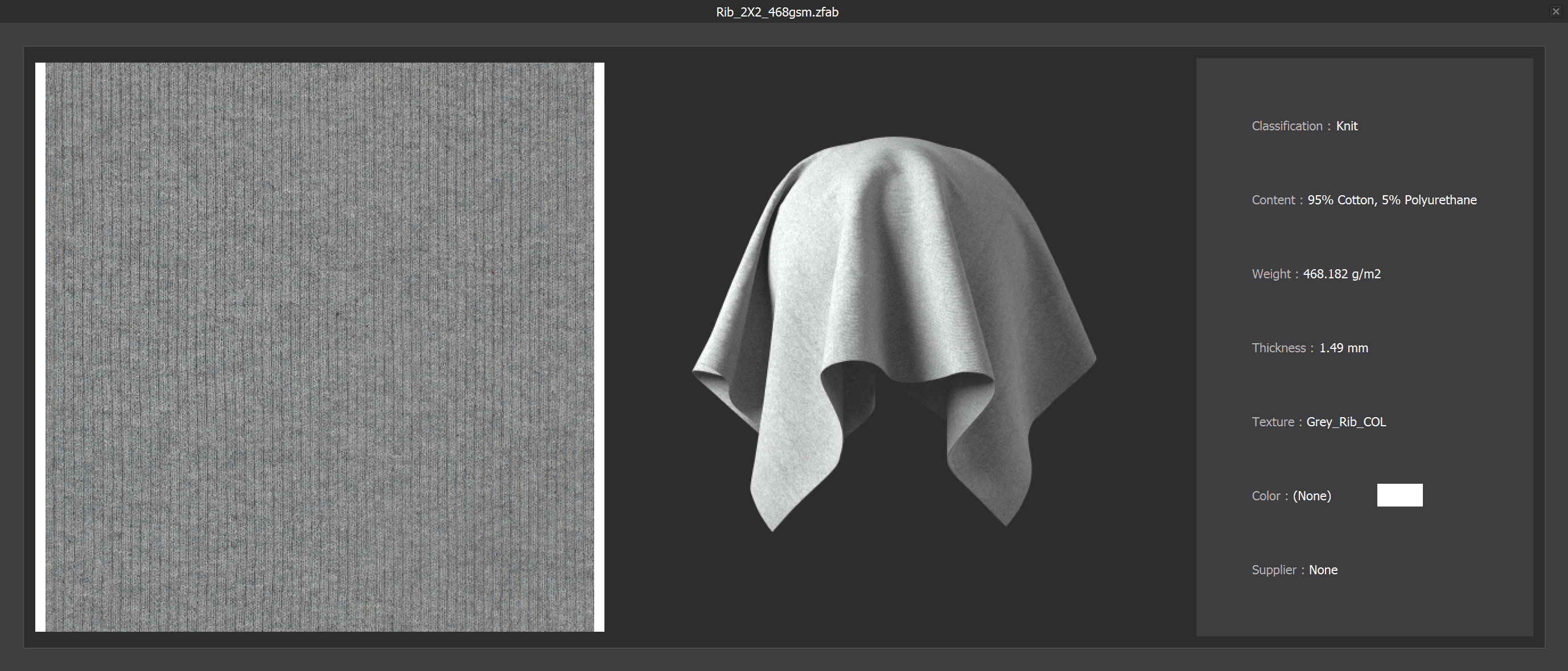

Rib_2X2_468gsm

Rib_2X2_468gsm_md Rib_2X2_468gsm_hou
Rib_2X2_468gsm
Weight (=Density)468.18 (g/m2)
Thickness1.49 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)110087 (g/s2) / 442161 (g/s2)
Shear (Left / Right)201563 (g/s2) / 201563 (g/s2)
Bending (Weft / Warp)2394 (g * mm2/s2) / 76702 (g * mm2/s2)
Bending-Bias (Left / Right)6157 (g * mm2/s2) / 6157 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.5
Bend-Stiffness2 * 0.00001

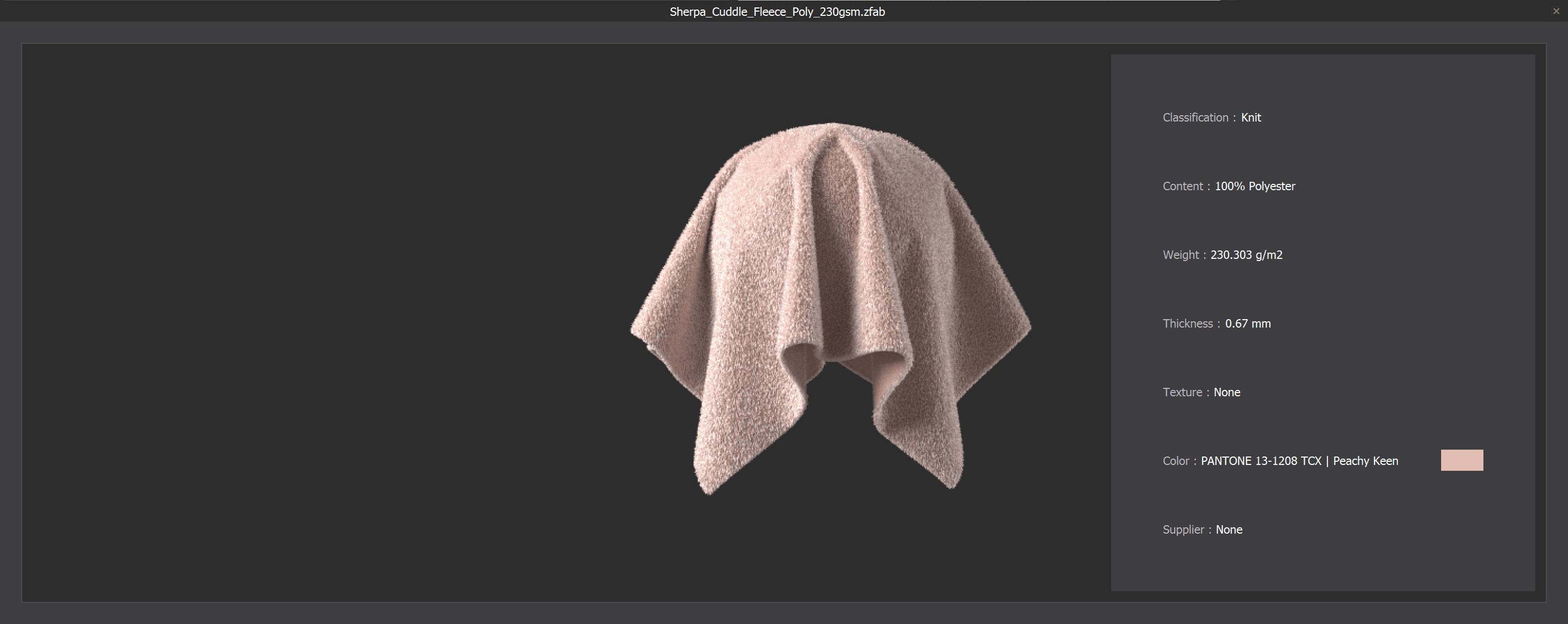

Sherpa

Sherpa_Cuddle_Fleece_Poly_230gsm

Sherpa_Cuddle_Fleece_Poly_230gsm_md Sherpa_Cuddle_Fleece_Poly_230gsm_hou
Sherpa_Cuddle_Fleece_Poly_230gsm
Weight (=Density)230.30 (g/m2)
Thickness0.67 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)2200000 (g/s2) / 2700000 (g/s2)
Shear (Left / Right)3400000 (g/s2) / 3400000 (g/s2)
Bending (Weft / Warp)3456 (g * mm2/s2) / 3770 (g * mm2/s2)
Bending-Bias (Left / Right)2199 (g * mm2/s2) / 2199 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness4 * 0.000001

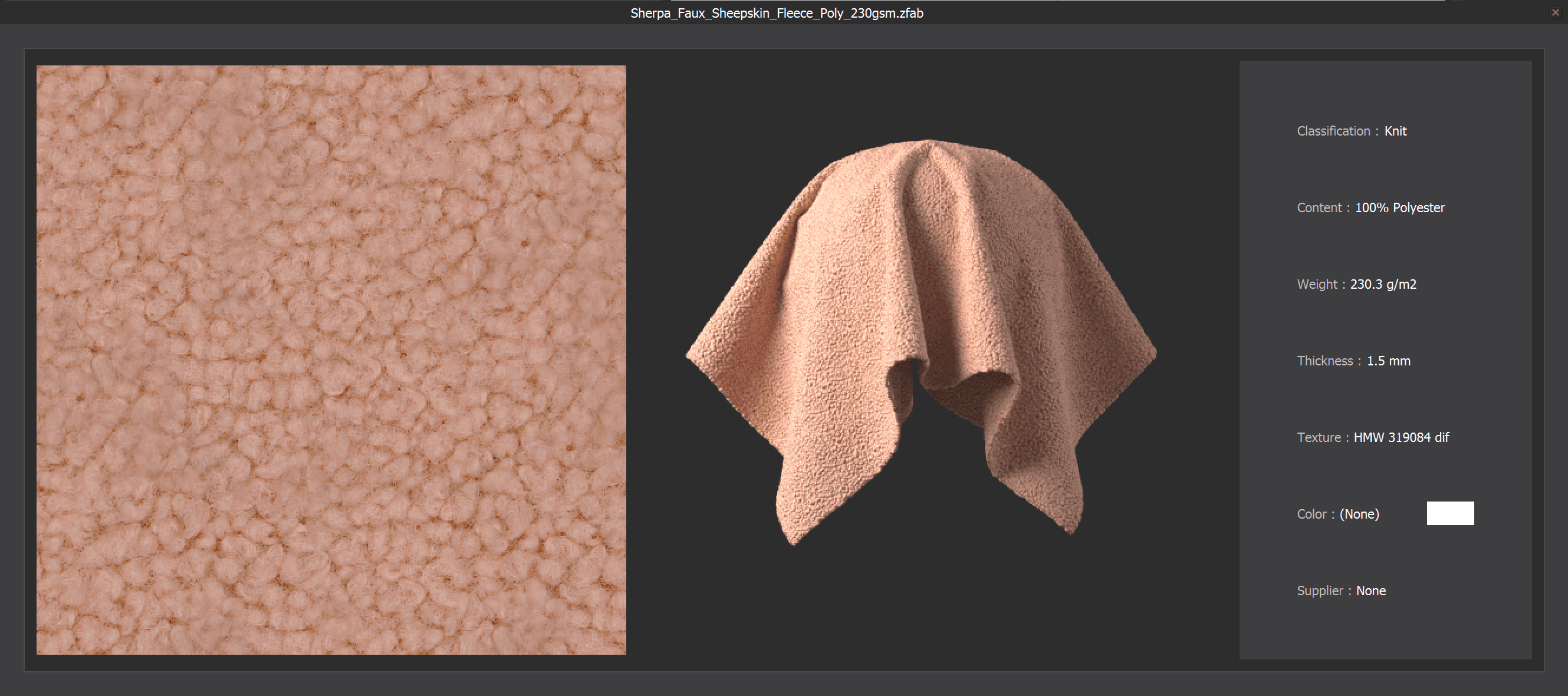

Sherpa_Faux_Sheepskin_Fleece_Poly_230gsm

Sherpa_Faux_Sheepskin_Fleece_Poly_230gsm_md Sherpa_Faux_Sheepskin_Fleece_Poly_230gsm_hou
Sherpa_Faux_Sheepskin_Fleece_Poly_230gsm
Weight (=Density)230.30 (g/m2)
Thickness1.50 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)2700000 (g/s2) / 3200000 (g/s2)
Shear (Left / Right)4400000 (g/s2) / 4400000 (g/s2)
Bending (Weft / Warp)6912 (g * mm2/s2) / 7540 (g * mm2/s2)
Bending-Bias (Left / Right)5969 (g * mm2/s2) / 5969 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness1 * 0.00001

Sherpa_Fleece_Poly_240gsm

「Sherpa_Fleece_Poly_240gsm」から「Sherpa_Fleece_Poly_300gsm」までのパラメータに関して、
設定ミスか分からないが全て同じになっていたので、テクスチャ以外に変化なし

Sherpa_Fleece_Poly_240gsm_md Sherpa_Fleece_Poly_240gsm_hou
Sherpa_Fleece_Poly_240gsm
Weight (=Density)240.00 (g/m2) ※1
Thickness0.67 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)11717 (g/s2) / 27059 (g/s2)
Shear (Left / Right)22960 (g/s2) / 22960 (g/s2)
Bending (Weft / Warp)2202 (g * mm2/s2) / 4599 (g * mm2/s2)
Bending-Bias (Left / Right)3496 (g * mm2/s2) / 3496 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness4 * 0.000001

※1 Weightが230.30に設定されていたが、タイトルでは240gsmとあるので240.00に変更している

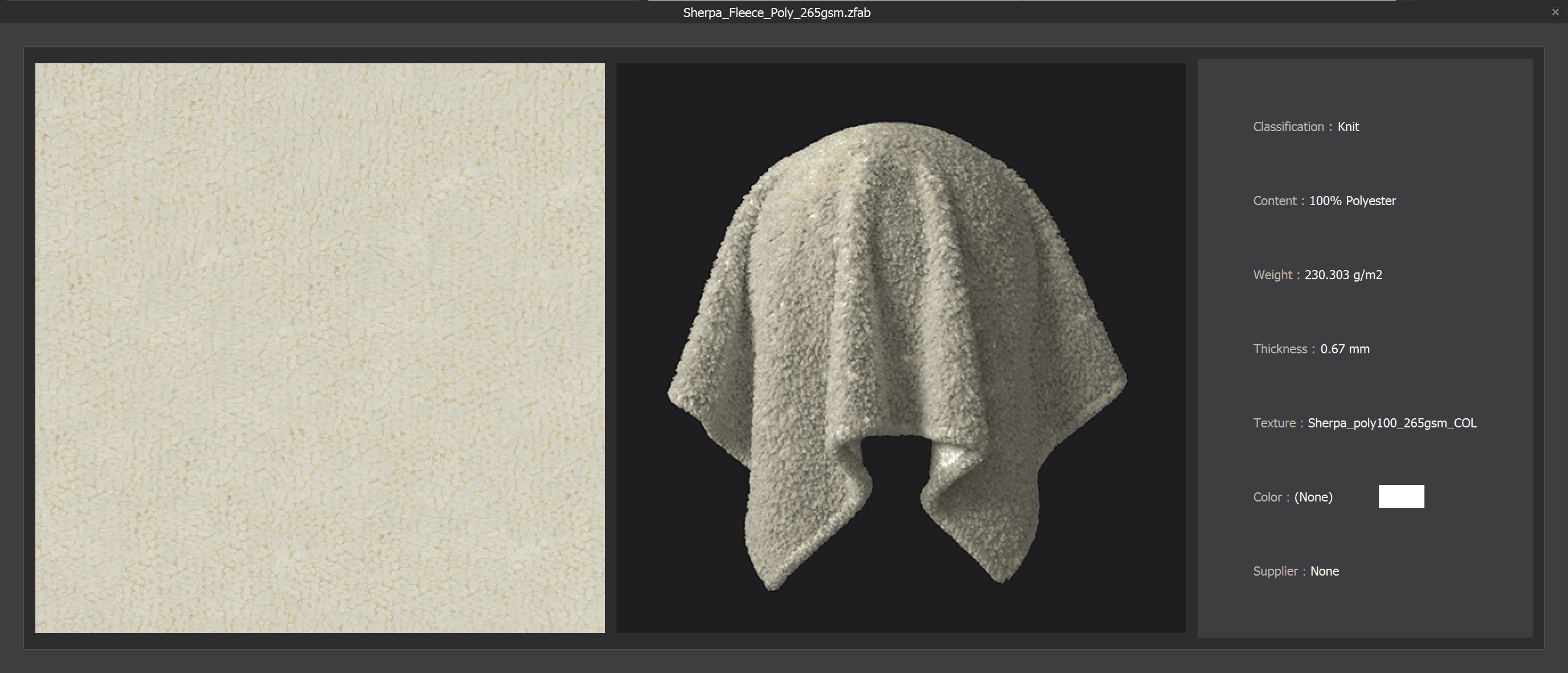

Sherpa_Fleece_Poly_265gsm

Sherpa_Fleece_Poly_265gsm_md Sherpa_Fleece_Poly_265gsm_hou
Sherpa_Fleece_Poly_265gsm
Weight (=Density)265.00 (g/m2) ※1
Thickness0.67 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)11717 (g/s2) / 27059 (g/s2)
Shear (Left / Right)22960 (g/s2) / 22960 (g/s2)
Bending (Weft / Warp)2202 (g * mm2/s2) / 4599 (g * mm2/s2)
Bending-Bias (Left / Right)3496 (g * mm2/s2) / 3496 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness3 * 0.000001

※1 Weightが230.30に設定されていたが、タイトルでは265gsmとあるので265.00に変更している

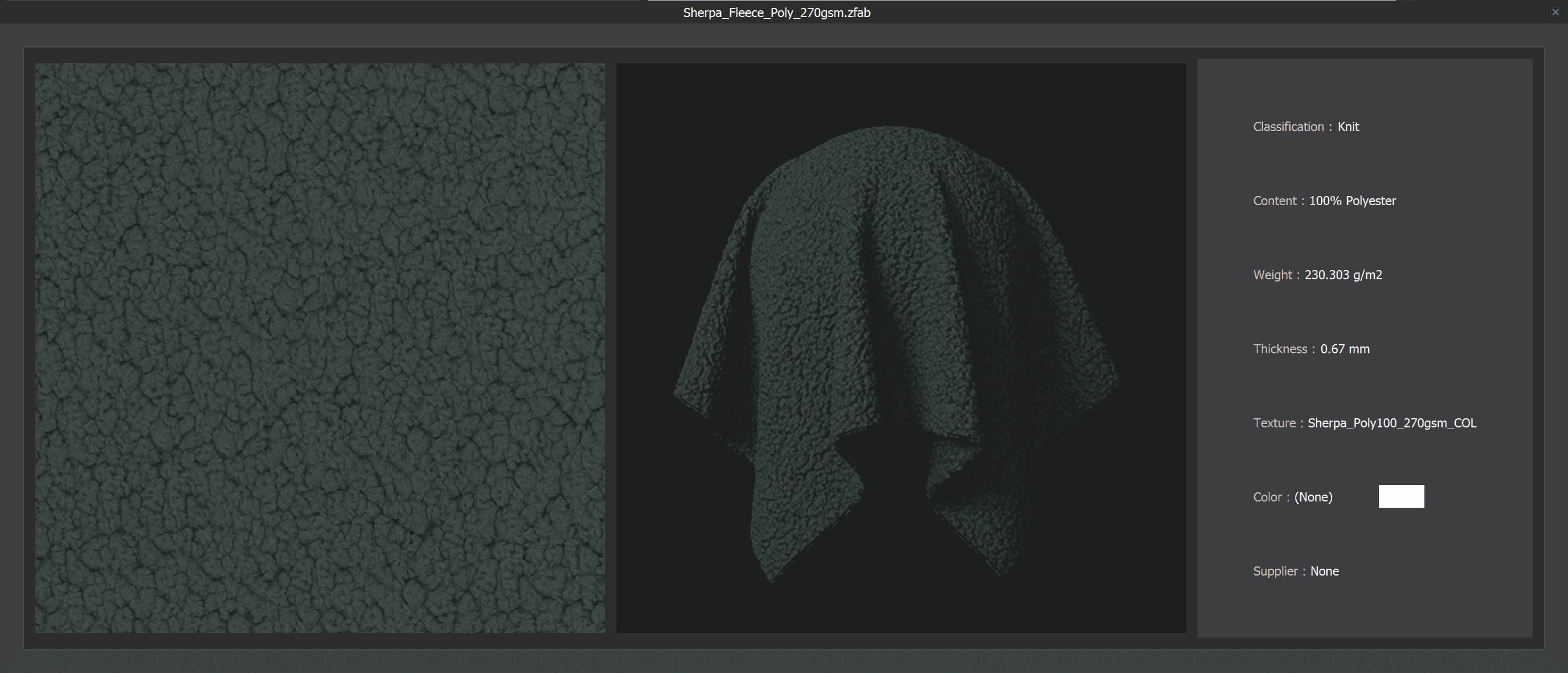

Sherpa_Fleece_Poly_270gsm

Sherpa_Fleece_Poly_270gsm_md Sherpa_Fleece_Poly_270gsm_hou
Sherpa_Fleece_Poly_270gsm
Weight (=Density)270.00 (g/m2) ※1
Thickness0.67 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)11717 (g/s2) / 27059 (g/s2)
Shear (Left / Right)22960 (g/s2) / 22960 (g/s2)
Bending (Weft / Warp)2202 (g * mm2/s2) / 4599 (g * mm2/s2)
Bending-Bias (Left / Right)3496 (g * mm2/s2) / 3496 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness3 * 0.000001

※1 Weightが230.30に設定されていたが、タイトルでは270gsmとあるので270.00に変更している

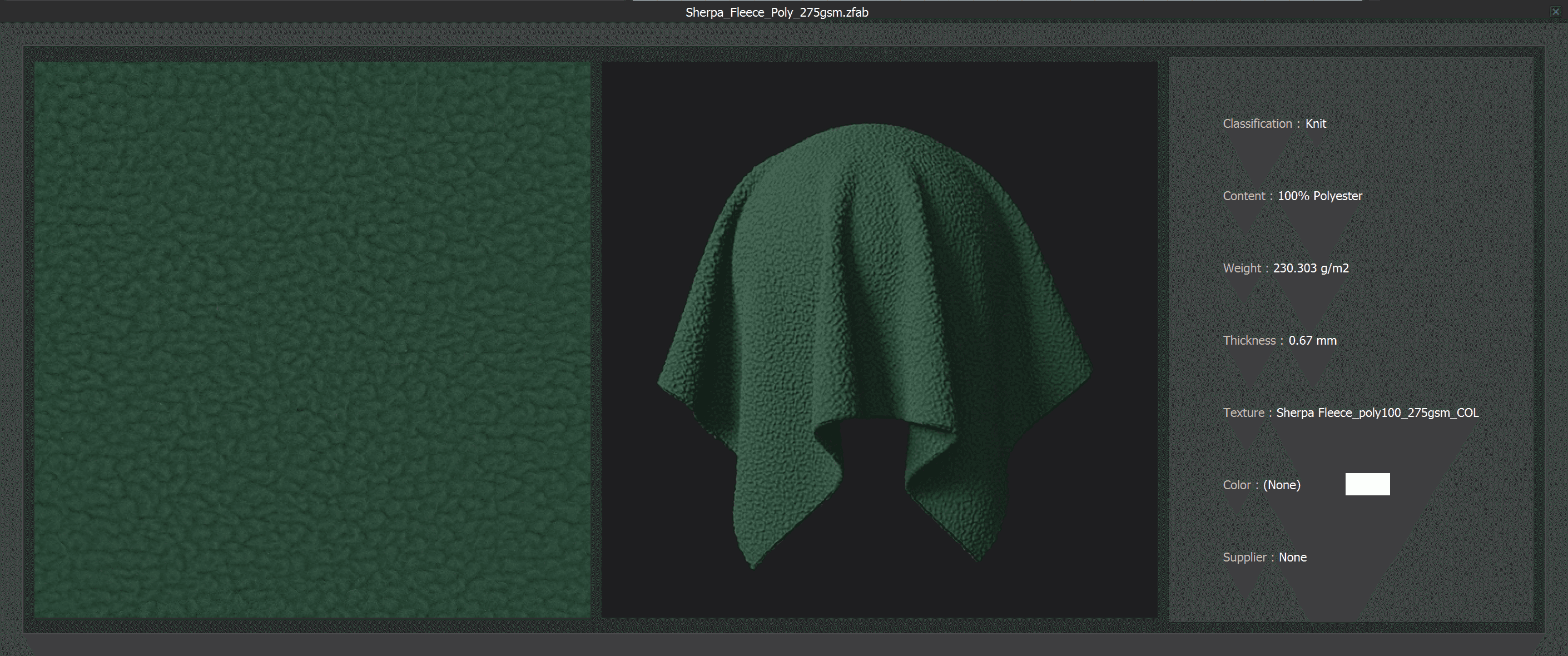

Sherpa_Fleece_Poly_275gsm

Sherpa_Fleece_Poly_275gsm_md Sherpa_Fleece_Poly_275gsm_hou
Sherpa_Fleece_Poly_275gsm
Weight (=Density)275.00 (g/m2) ※1
Thickness0.67 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)11717 (g/s2) / 27059 (g/s2)
Shear (Left / Right)22960 (g/s2) / 22960 (g/s2)
Bending (Weft / Warp)2202 (g * mm2/s2) / 4599 (g * mm2/s2)
Bending-Bias (Left / Right)3496 (g * mm2/s2) / 3496 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness3 * 0.000001

※1 Weightが230.30に設定されていたが、タイトルでは275gsmとあるので275.00に変更している

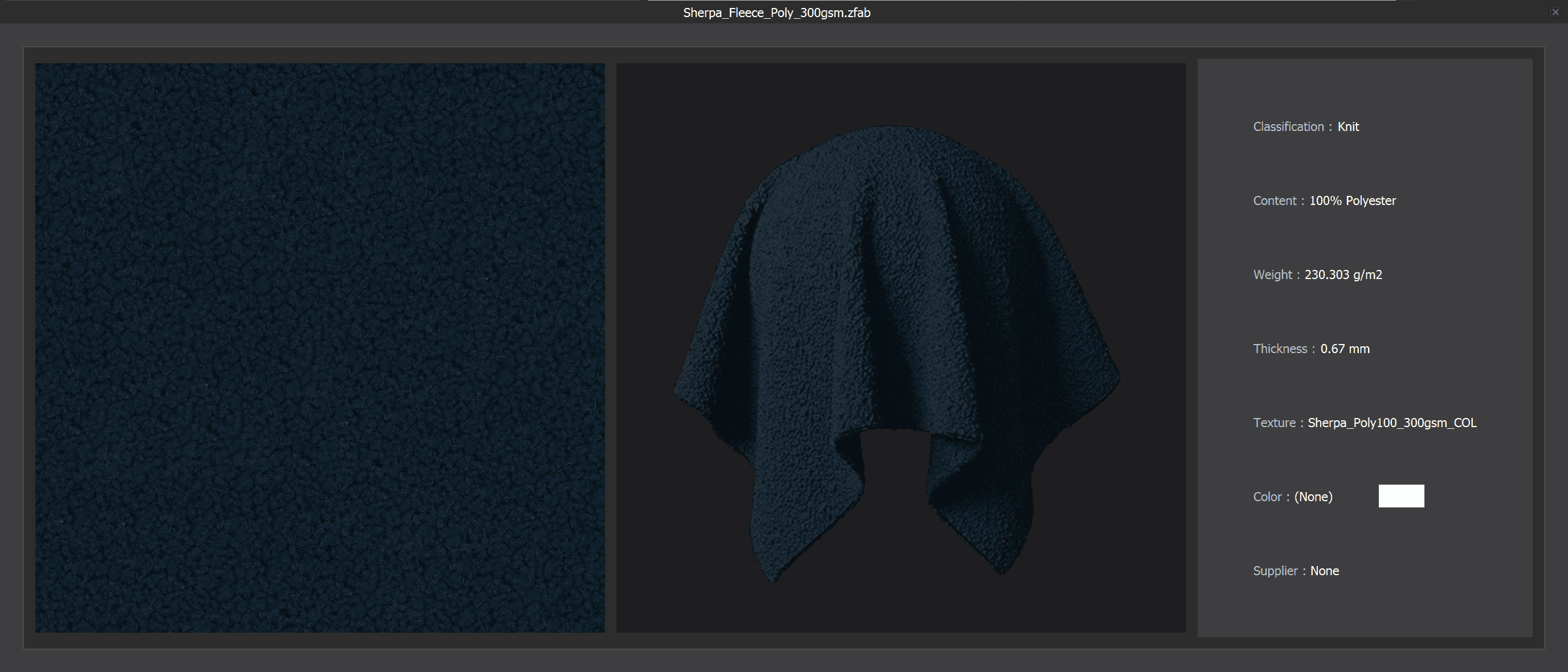

Sherpa_Fleece_Poly_300gsm

Sherpa_Fleece_Poly_300gsm_md Sherpa_Fleece_Poly_300gsm_hou
Sherpa_Fleece_Poly_300gsm
Weight (=Density)300.00 (g/m2) ※1
Thickness0.67 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)11717 (g/s2) / 27059 (g/s2)
Shear (Left / Right)22960 (g/s2) / 22960 (g/s2)
Bending (Weft / Warp)2202 (g * mm2/s2) / 4599 (g * mm2/s2)
Bending-Bias (Left / Right)3496 (g * mm2/s2) / 3496 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness3 * 0.000001

※1 Weightが230.30に設定されていたが、タイトルでは300gsmとあるので300.00に変更している

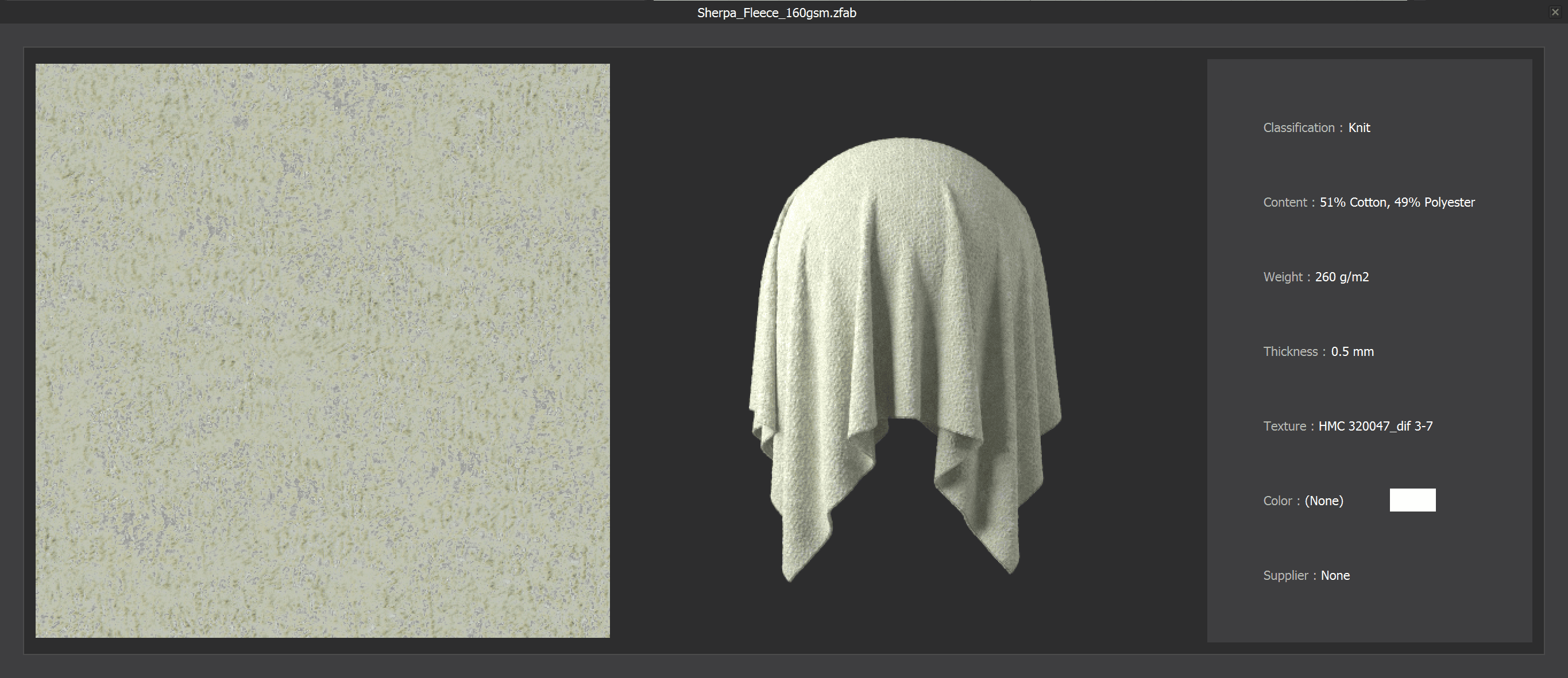

Sherpa_Fleece_160gsm

Sherpa_Fleece_160gsm_md Sherpa_Fleece_160gsm_hou
Sherpa_Fleece_160gsm
Weight (=Density)160.00 (g/m2) ※1
Thickness0.50 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)9000 (g/s2) / 10000 (g/s2)
Shear (Left / Right)4000 (g/s2) / 4000 (g/s2)
Bending (Weft / Warp)220 (g * mm2/s2) / 251 (g * mm2/s2)
Bending-Bias (Left / Right)126 (g * mm2/s2) / 126 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness1 * 0.0000001

※1 Weightが260.00に設定されていたが、タイトルでは160gsmとあるので160.00に変更している

Sherpa_Fleece_272gsm

Sherpa_Fleece_272gsm_md Sherpa_Fleece_272gsm_hou
Sherpa_Fleece_272gsm
Weight (=Density)272.00 (g/m2)
Thickness0.67 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)2200000 (g/s2) / 2700000 (g/s2)
Shear (Left / Right)3400000 (g/s2) / 3400000 (g/s2)
Bending (Weft / Warp)3456 (g * mm2/s2) / 3770 (g * mm2/s2)
Bending-Bias (Left / Right)2199 (g * mm2/s2) / 2199 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness4 * 0.000001

Sherpa_Polar_Fleece_Poly_260gsm

Sherpa_Polar_Fleece_Poly_260gsm_md Sherpa_Polar_Fleece_Poly_260gsm_hou
Sherpa_Polar_Fleece_Poly_260gsm
Weight (=Density)260.00 (g/m2)
Thickness0.67 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)2200000 (g/s2) / 2700000 (g/s2)
Shear (Left / Right)1600000 (g/s2) / 1600000 (g/s2)
Bending (Weft / Warp)3770 (g * mm2/s2) / 4398 (g * mm2/s2)
Bending-Bias (Left / Right)4084 (g * mm2/s2) / 4084 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness8 * 0.000001

Sherpa_Shearling_Curly_Fleece_Poly_360gsm

Sherpa_Shearling_Curly_Fleece_Poly_360gsm_md Sherpa_Shearling_Curly_Fleece_Poly_360gsm_hou
Sherpa_Shearling_Curly_Fleece_Poly_360gsm
Weight (=Density)360.00 (g/m2)
Thickness1.00 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)10000 (g/s2) / 25000 (g/s2)
Shear (Left / Right)20000 (g/s2) / 20000 (g/s2)
Bending (Weft / Warp)15708 (g * mm2/s2) / 21991 (g * mm2/s2)
Bending-Bias (Left / Right)9111 (g * mm2/s2) / 9111 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.4
Bend-Stiffness8 * 0.000001

Silk

Silk_Charmeuse

Silk_Charmeuse_md Silk_Charmeuse_hou
Silk_Charmeuse
Weight (=Density)49.49 (g/m2)
Thickness0.23 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)76304 (g/s2) / 47810 (g/s2)
Shear (Left / Right)4459 (g/s2) / 4459 (g/s2)
Bending (Weft / Warp)626 (g * mm2/s2) / 2112 (g * mm2/s2)
Bending-Bias (Left / Right)1249 (g * mm2/s2) / 1249 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness1 * 0.000001

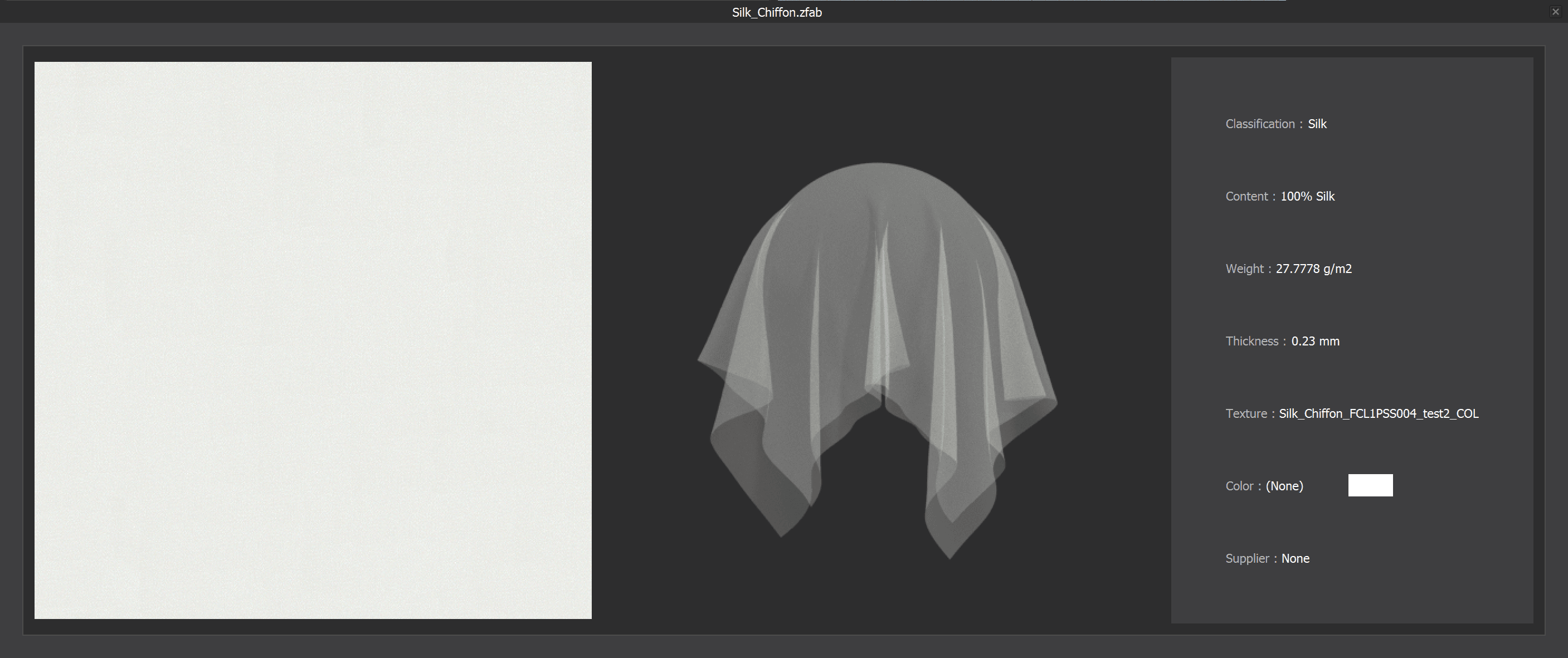

Silk_Chiffon

Silk_Chiffon_md Silk_Chiffon_hou
Silk_Chiffon
Weight (=Density)27.78 (g/m2)
Thickness0.23 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)54400 (g/s2) / 29446 (g/s2)
Shear (Left / Right)2871 (g/s2) / 2871 (g/s2)
Bending (Weft / Warp)428 (g * mm2/s2) / 1004 (g * mm2/s2)
Bending-Bias (Left / Right)1249 (g * mm2/s2) / 1249 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness3 * 0.000001

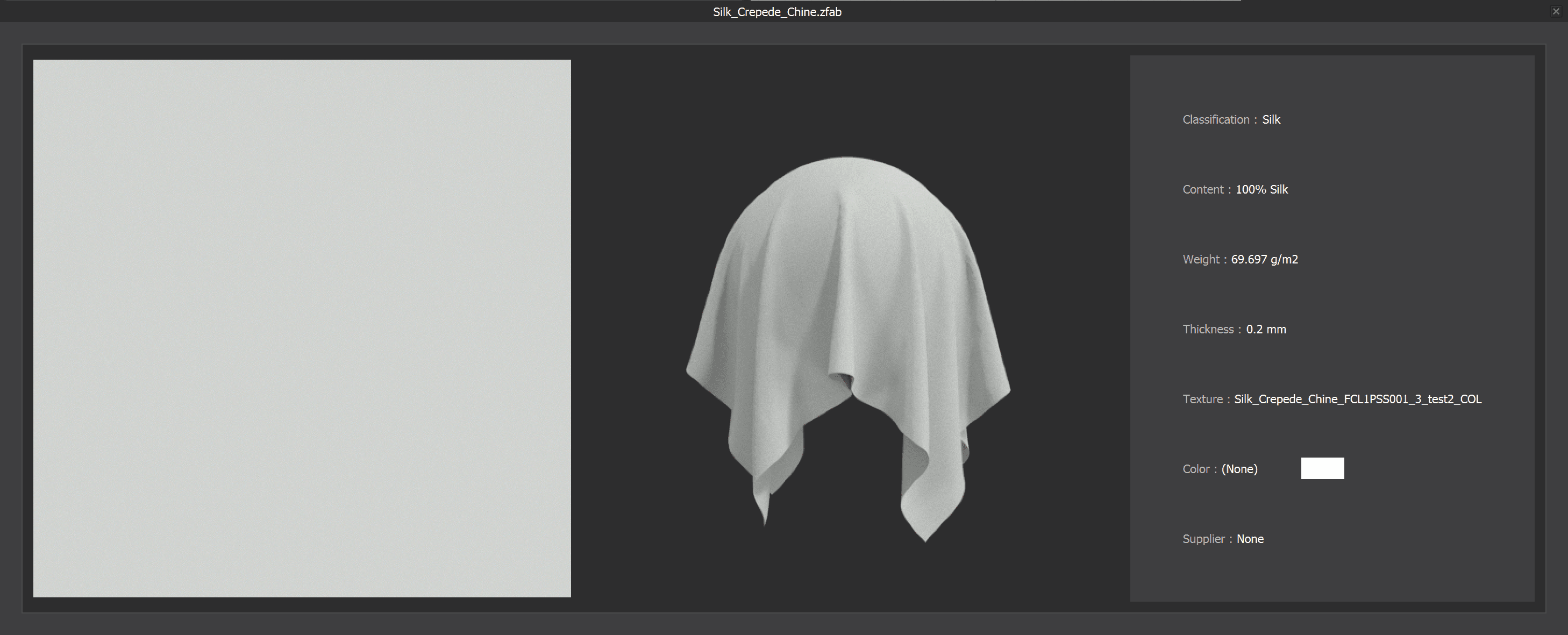

Silk_Crepede_Chine

Silk_Crepede_Chine_md Silk_Crepede_Chine_hou
Silk_Crepede_Chine
Weight (=Density)69.70 (g/m2)
Thickness0.20 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)140084 (g/s2) / 71935 (g/s2)
Shear (Left / Right)5667 (g/s2) / 5667 (g/s2)
Bending (Weft / Warp)572 (g * mm2/s2) / 842 (g * mm2/s2)
Bending-Bias (Left / Right)680 (g * mm2/s2) / 680 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness2 * 0.000001

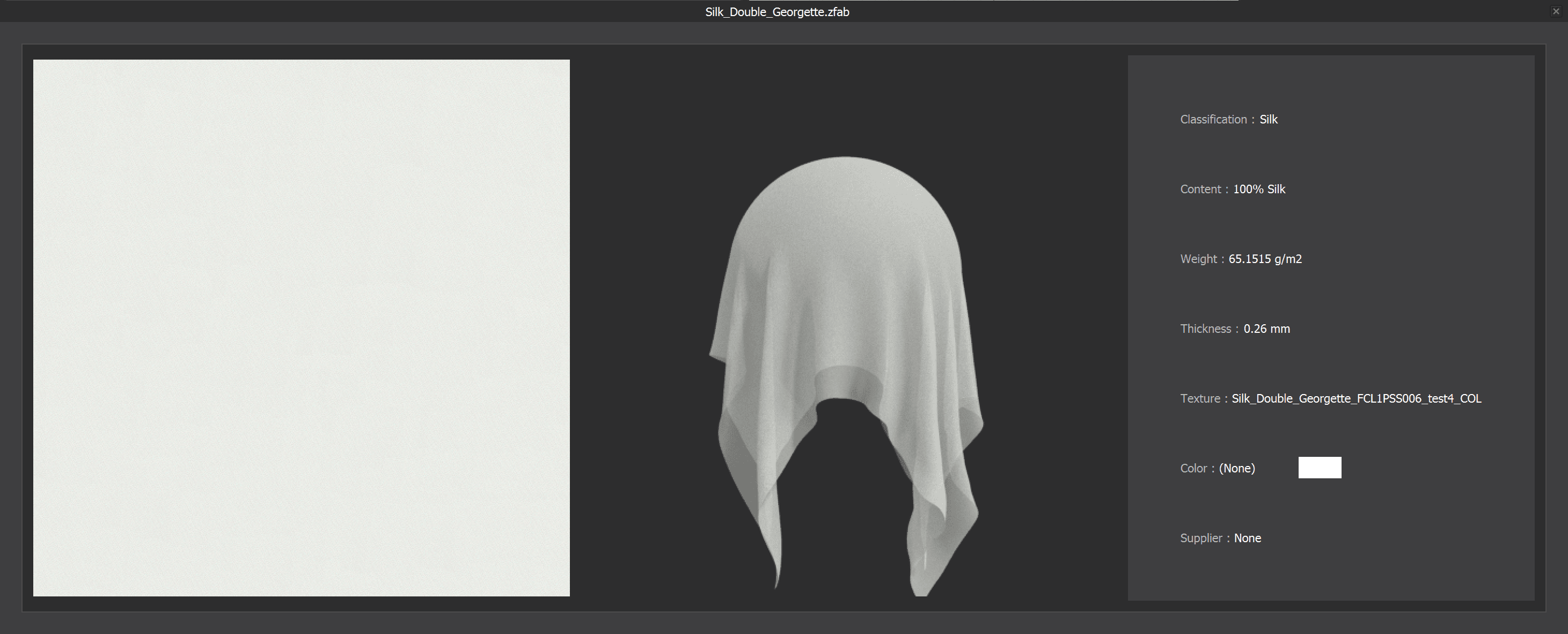

Silk_Double_Georgette

Silk_Double_Georgette_md Silk_Double_Georgette_hou
Silk_Double_Georgette
Weight (=Density)65.15 (g/m2)
Thickness0.26 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)118593 (g/s2) / 39471 (g/s2)
Shear (Left / Right)3831 (g/s2) / 3831 (g/s2)
Bending (Weft / Warp)476 (g * mm2/s2) / 938 (g * mm2/s2)
Bending-Bias (Left / Right)674 (g * mm2/s2) / 674 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness9 * 0.0000001

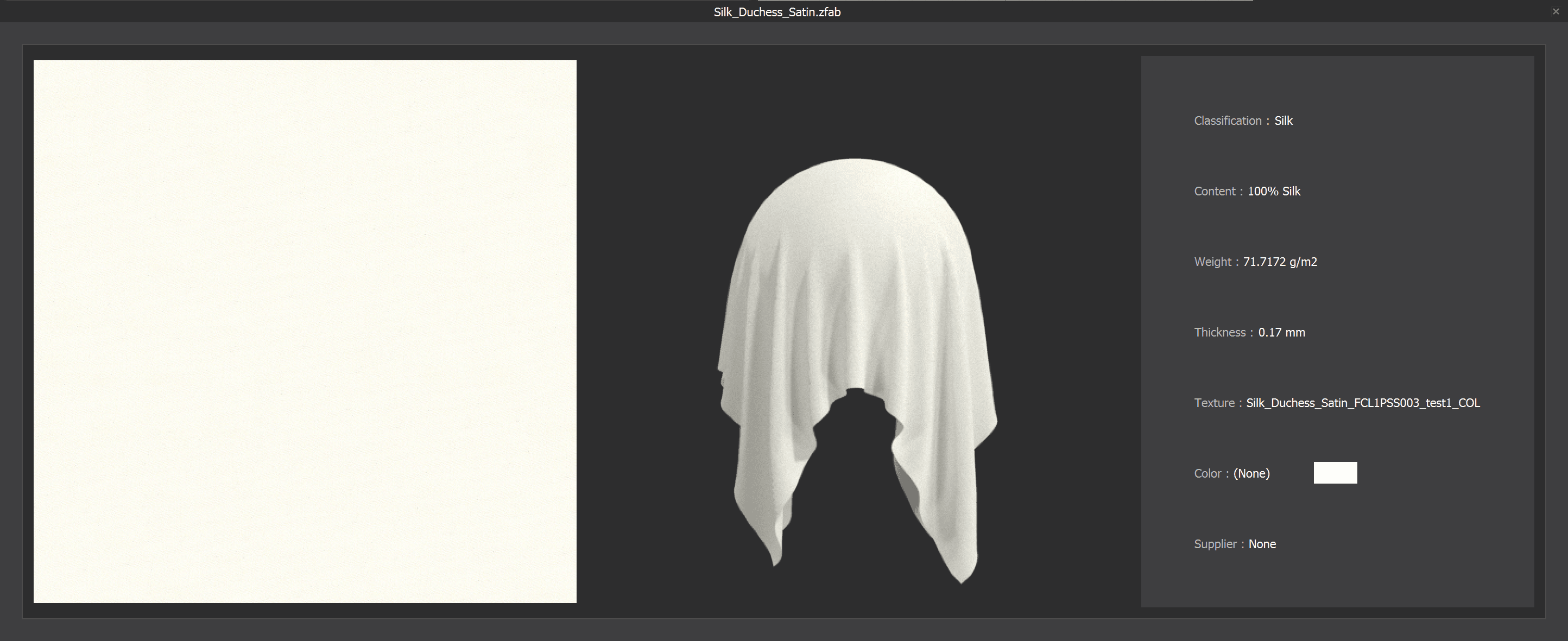

Silk_Duchess_Satin

Silk_Duchess_Satin_md Silk_Duchess_Satin_hou
Silk_Duchess_Satin
Weight (=Density)71.72 (g/m2)
Thickness0.17 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)150542 (g/s2) / 89610 (g/s2)
Shear (Left / Right)3140 (g/s2) / 3140 (g/s2)
Bending (Weft / Warp)231 (g * mm2/s2) / 542 (g * mm2/s2)
Bending-Bias (Left / Right)333 (g * mm2/s2) / 333 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness6 * 0.0000001

Silk_Faille

Silk_Faille_md Silk_Faille_hou
Silk_Faille
Weight (=Density)132.83 (g/m2)
Thickness0.24 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)947015 (g/s2) / 258227 (g/s2)
Shear (Left / Right)530724 (g/s2) / 530724 (g/s2)
Bending (Weft / Warp)67498 (g * mm2/s2) / 3065 (g * mm2/s2)
Bending-Bias (Left / Right)13803 (g * mm2/s2) / 13803 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness3 * 0.00001

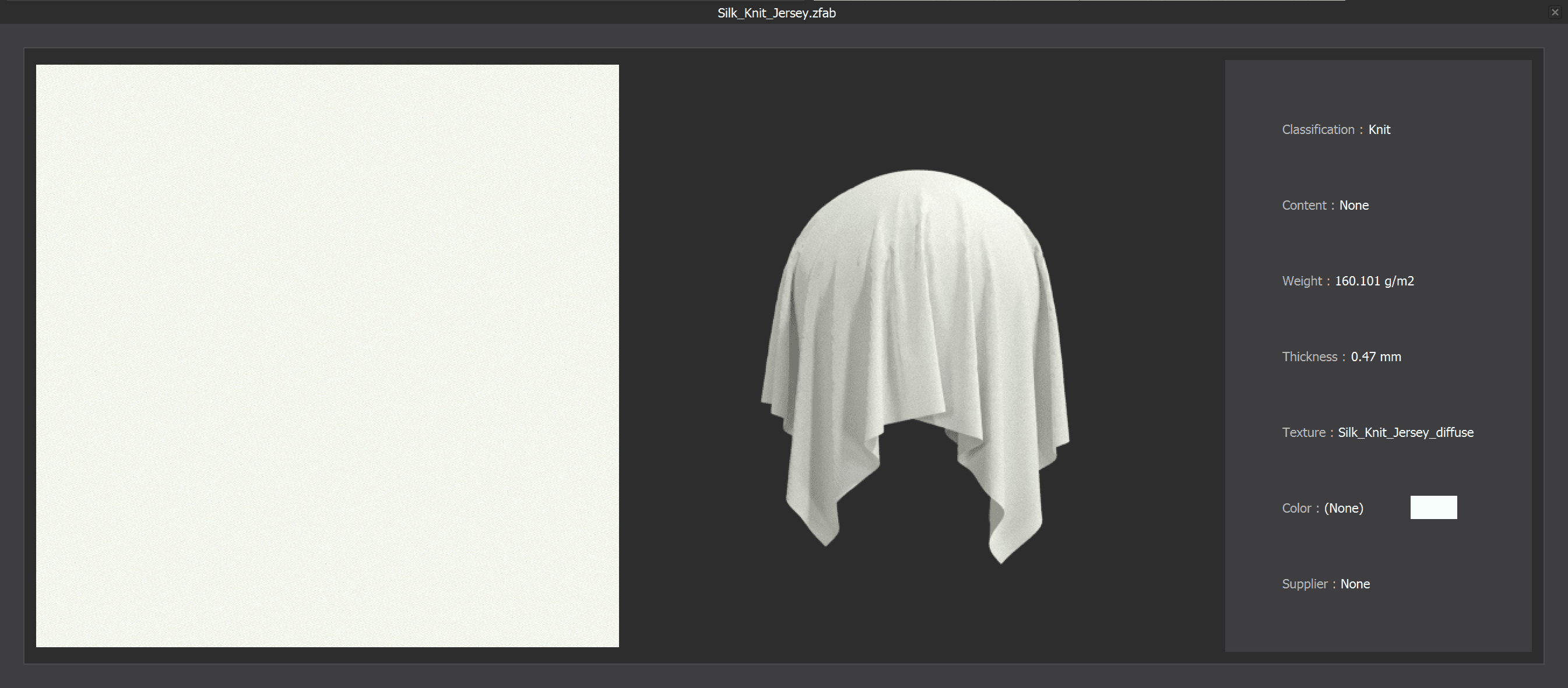

Silk_Knit_Jersey

Silk_Knit_Jersey_md Silk_Knit_Jersey_hou
Silk_Knit_Jersey
Weight (=Density)160.10 (g/m2)
Thickness0.47 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)502 (g/s2) / 27402 (g/s2)
Shear (Left / Right)17843 (g/s2) / 17843 (g/s2)
Bending (Weft / Warp)219 (g * mm2/s2) / 255 (g * mm2/s2)
Bending-Bias (Left / Right)243 (g * mm2/s2) / 243 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.2
Bend-Stiffness1 * 0.0000001

Silk_Organza

Silk_Organza_md Silk_Organza_hou
Silk_Organza
Weight (=Density)23.23 (g/m2)
Thickness0.10 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)90210 (g/s2) / 82184 (g/s2)
Shear (Left / Right)6361 (g/s2) / 6361 (g/s2)
Bending (Weft / Warp)4599 (g * mm2/s2) / 4982 (g * mm2/s2)
Bending-Bias (Left / Right)4221 (g * mm2/s2) / 4221 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness2 * 0.00001

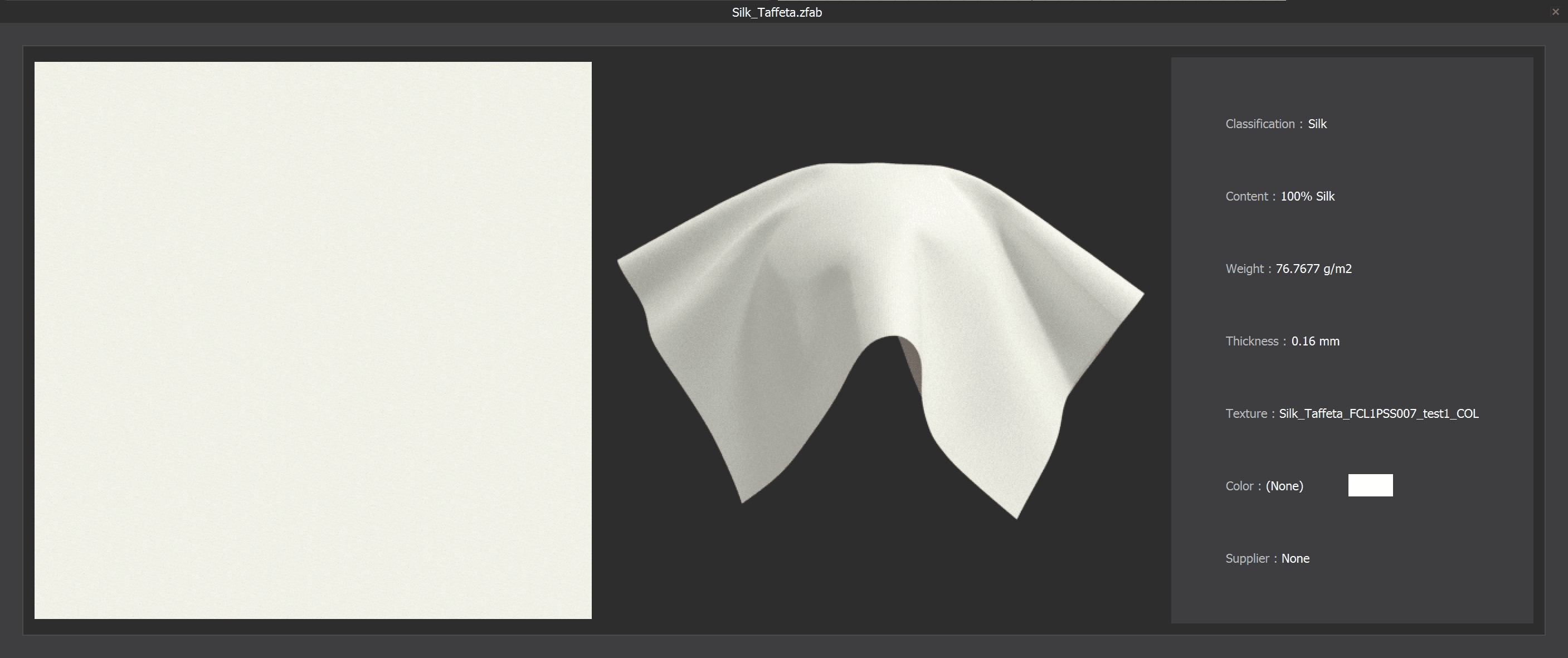

Silk_Taffeta

Silk_Taffeta_md Silk_Taffeta_hou
Silk_Taffeta
Weight (=Density)76.77 (g/m2)
Thickness0.16 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)1000000 (g/s2) / 225058 (g/s2)
Shear (Left / Right)368272 (g/s2) / 368272 (g/s2)
Bending (Weft / Warp)30677 (g * mm2/s2) / 962 (g * mm2/s2)
Bending-Bias (Left / Right)6133 (g * mm2/s2) / 6133 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.1
Bend-Stiffness4 * 0.00001

Trim

Trimだけプリセット生地の画像なし

Trim_Full_Grain_Leather

⚠️Remesh target size: 0.005→0.015⚠️

Trim_Full_Grain_Leather
Weight (=Density)300.00 (g/m2)
Thickness0.50 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)150000 (g/s2) / 150000 (g/s2)
Shear (Left / Right)300000 (g/s2) / 300000 (g/s2)
Bending (Weft / Warp)2827434 (g * mm2/s2) / 2827434 (g * mm2/s2)
Bending-Bias (Left / Right)2827434 (g * mm2/s2) / 2827434 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness4 * 0.001

Trim_Fusible_Rigid

Trim_Fusible_Rigid
Weight (=Density)300.00 (g/m2)
Thickness0.50 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)1700000 (g/s2) / 1700000 (g/s2)
Shear (Left / Right)3400000 (g/s2) / 3400000 (g/s2)
Bending (Weft / Warp)62832 (g * mm2/s2) / 62832 (g * mm2/s2)
Bending-Bias (Left / Right)62832 (g * mm2/s2) / 62832 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness6 * 0.0001

Trim_Hardware

Trim_Hardware
Weight (=Density)300.00 (g/m2)
Thickness0.50 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)320000 (g/s2) / 320000 (g/s2)
Shear (Left / Right)640000 (g/s2) / 640000 (g/s2)
Bending (Weft / Warp)640000 (g * mm2/s2) / 47124 (g * mm2/s2)
Bending-Bias (Left / Right)47124 (g * mm2/s2) / 47124 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.3
Bend-Stiffness2 * 0.0001

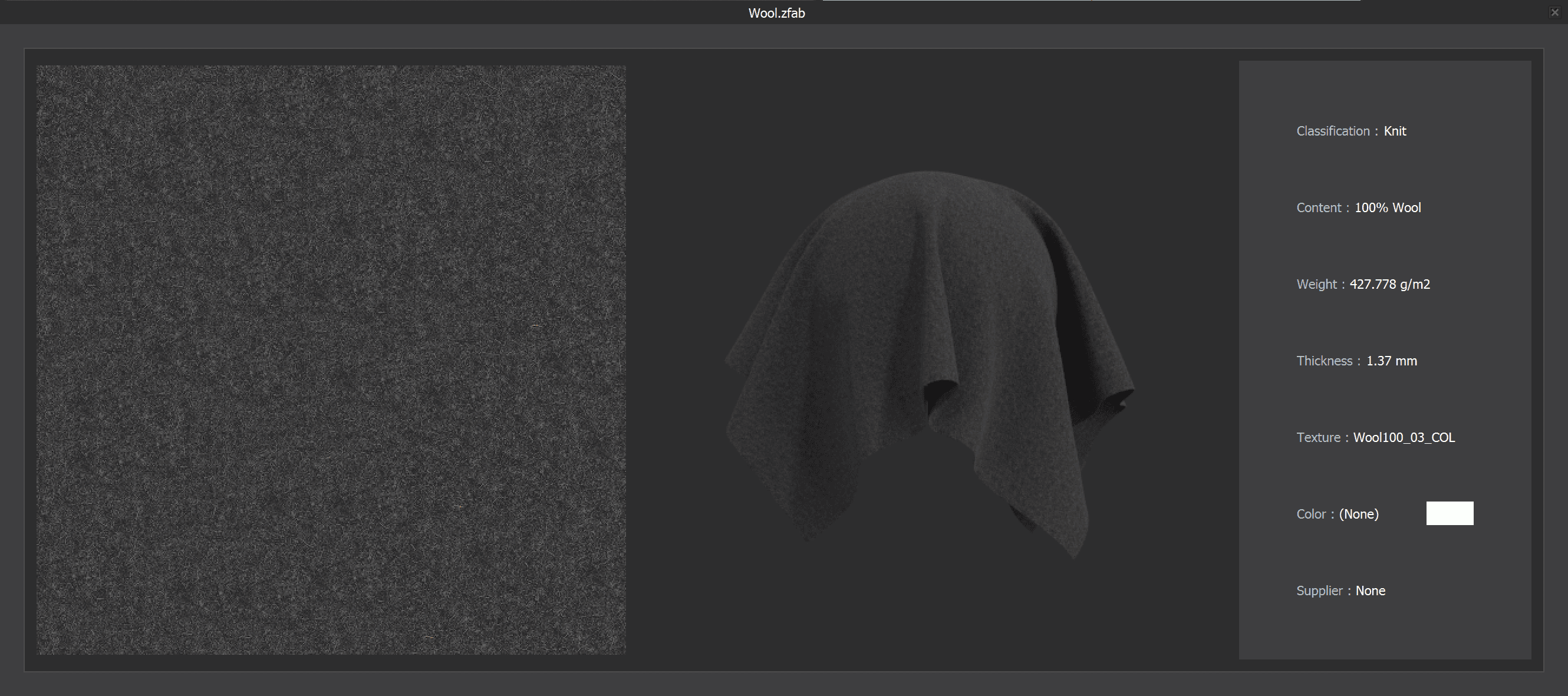

Wool

Wool

Wool_md Wool_hou
Wool
Weight (=Density)427.78 (g/m2)
Thickness1.37 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)512383 (g/s2) / 269877 (g/s2)
Shear (Left / Right)344638 (g/s2) / 344638 (g/s2)
Bending (Weft / Warp)8428 (g * mm2/s2) / 17644 (g * mm2/s2)
Bending-Bias (Left / Right)9992 (g * mm2/s2) / 9992 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.4
Bend-Stiffness1 * 0.00001

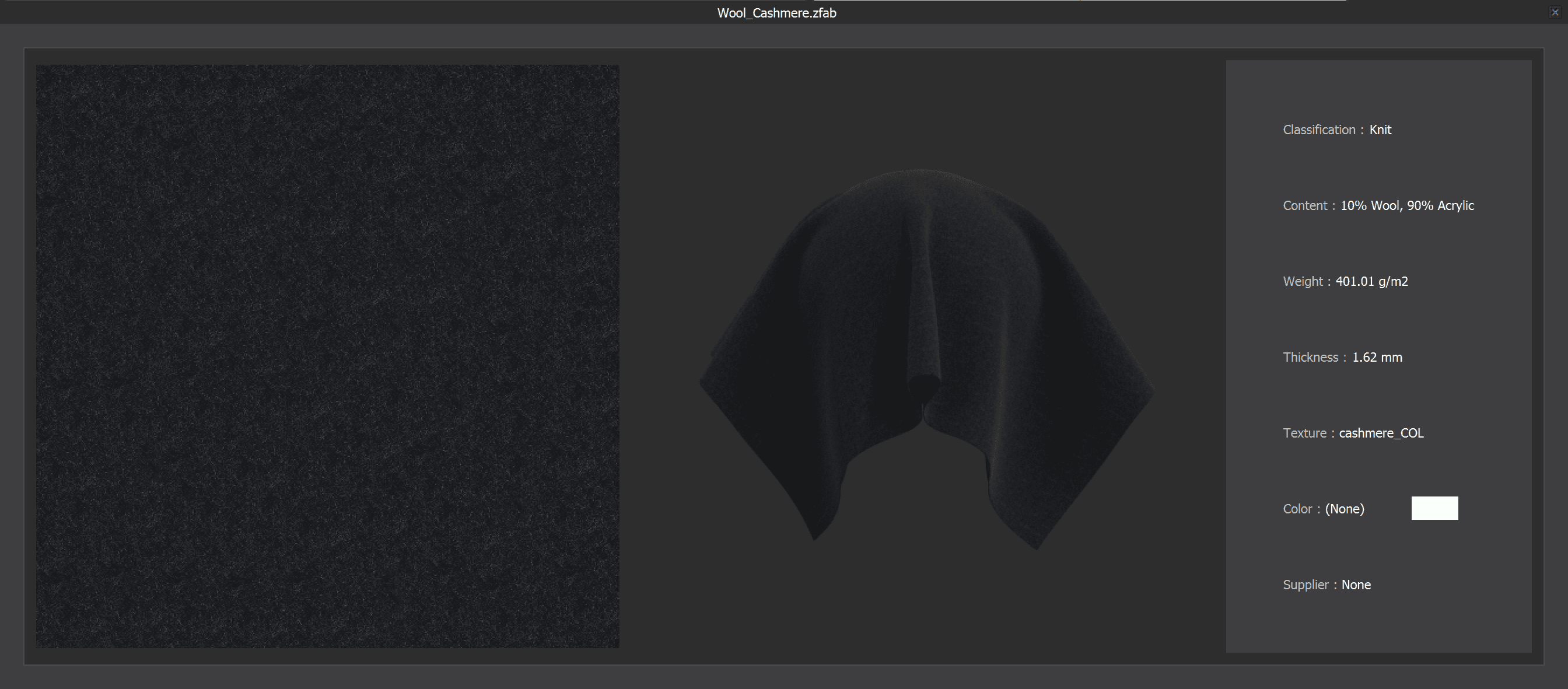

Wool_Cashmere

Wool_Cashmere_md Wool_Cashmere_hou
Wool_Cashmere
Weight (=Density)401.01 (g/m2)
Thickness1.62 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)696622 (g/s2) / 466428 (g/s2)
Shear (Left / Right)270192 (g/s2) / 270192 (g/s2)
Bending (Weft / Warp)7865 (g * mm2/s2) / 27609 (g * mm2/s2)
Bending-Bias (Left / Right)12652 (g * mm2/s2) / 12652 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.4
Bend-Stiffness2 * 0.00001

Wool_Melton

Wool_Melton_md Wool_Melton_hou
Wool_Melton
Weight (=Density)377.78 (g/m2)
Thickness1.06 (mm)
Friction0.03 (0-1)
Stretch (Weft / Warp)590002 (g/s2) / 510498 (g/s2)
Shear (Left / Right)232753 (g/s2) / 232753 (g/s2)
Bending (Weft / Warp)5749 (g * mm2/s2) / 13042 (g * mm2/s2)
Bending-Bias (Left / Right)7673 (g * mm2/s2) / 7673 (g * mm2/s2)
Vellum Constraints (Cloth)
Density0.4
Bend-Stiffness9 * 0.000001
